CKL 8 Port USB 3.0 Rack Mount HDMI KVM Switch Dual Monitor 4K@60Hz with Audio, 2 extra USB 3.0 Hub and Cables, Keyboard Mouse Hotkey Switcher Box Supports IR Remote (CKL-9238H-3)

  • 1. Dual Monitor KVM Switch 8 Port: 8 computers/laptops/DVRs/NVRs sharing one set of keyboard & mouse, audio, 2 monitors and 2 pcs USB 3.0 peripheral devices. With all input cables and rank mount hook. Tips: this KVM switch required each of your computers/laptops with 2 video output. If your computer only with an HDMI port, only 1 monitor have display.
  • 2. 8 Port KVM Dual Monitor: Excellent image processing and transmission capacity, make the output signal more smoothly and steady. Drive-free for Windows 10/7/2000/XP/Vista/11, Linux, Mac, Debian, Ubuntu, Fedora, Raspberry Pi, Ubuntu, etc.

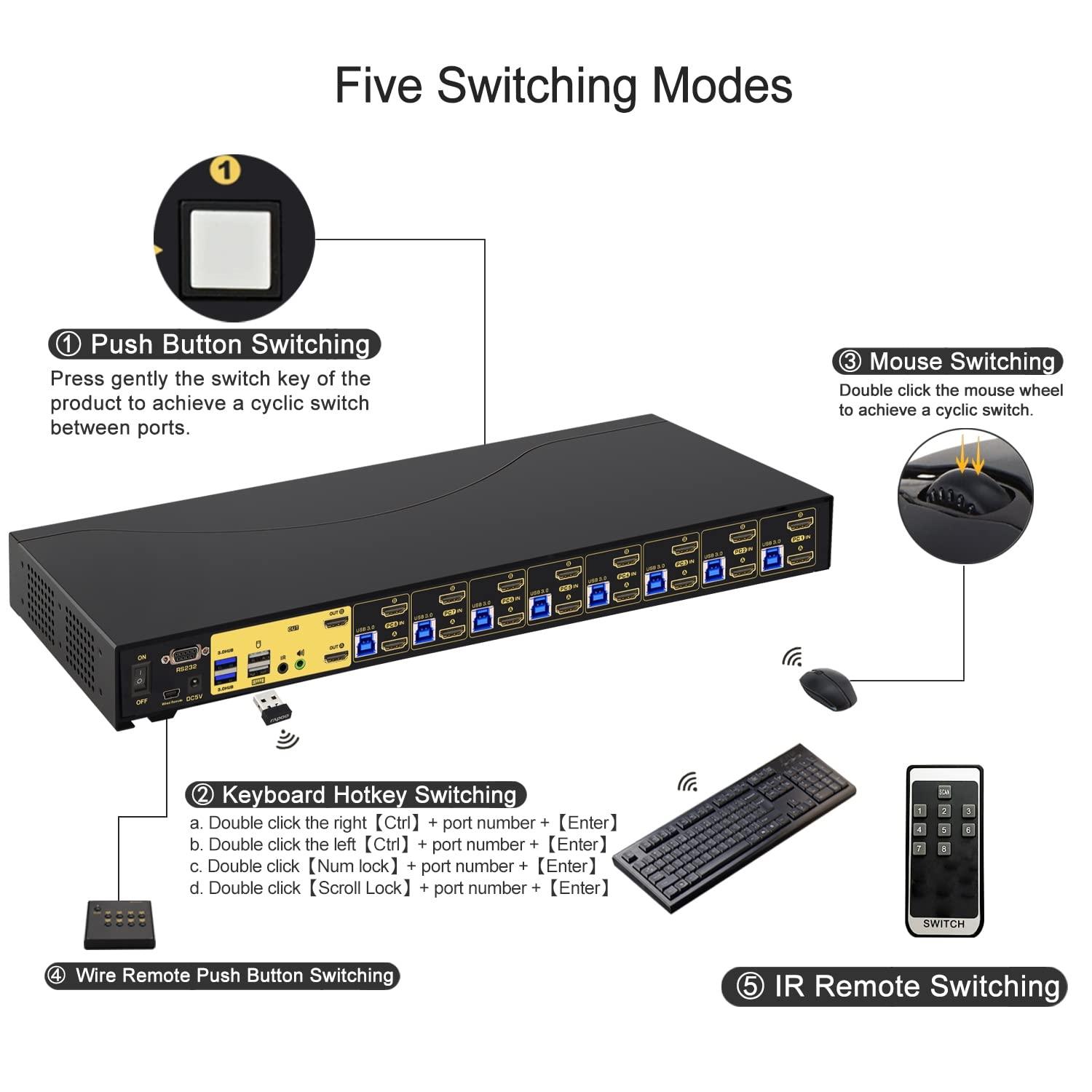

  • 3. Monitor Switch for 8 Computers: Supports five switching way: keyboard hotkey switching(Num Lock + Num Lock + 1 / 2 / 3 ... + Enter, or Ctrl + Ctrl + 1 / 2 /3 ... + Enter, or Scroll Lock+ Scroll Lock+1 / 2 / 3 ... + Enter), mouse switching (click mouse wheel twice + left button/right button), manual button switching, IR remote switching, and wired remote push button switching.
  • 4. 4K KVM Switch 8 Port: Compatible 4096x2160@60Hz, 3840x2160@60Hz, 3840x1620@60Hz, 3440x1440@60Hz, 3840x1080@60/120Hz, 3200x1800@60Hz, 2560x1440@60/144/165Hz, 2048x1536@60Hz, 2048x1280@60Hz, 2048x1080@60Hz, 1920x1200@60Hz, 1920x1080@60Hz, etc. With a DC5V 2A power adapter, power supply more stability.
  • 5. 8 Port KVM Switch HDMI: Support wired/wireless/unify/gaming/mechanical/Bluetooth/Apple keyboard & mouse, touch screen, OLED screen, 16:9 widescreen, 21:9 ultra-wide monitors, etc. It can switch by mouse or keyboard independently, even it without USB signal input, such as Apple TV, Android TV box, etc. And it can enter into BIOS interface directly.

  • Install Guide:

  • 1. Turn off all devices and unplug all the cables;

    2. Plug the DC5V 2A power adapter into the KVM switch and AC socket;

    3. Plug HDMI cables, USB 3.0 cables into the KVM switch and your computers;

    4. Plug HDMI cable into KVM switch and your monitor;

    5. Plug mouse into mouse slot of KVM switch, plug keyboard into keyboard slot of KVM switch;

    6. Plug other USB 3.0 peripheral device into the KVM switch if needed; plug wired remote push button switch/IR remote controller into the KVM switch if needed;

    7. Turn on KVM switch;

    8. Turn on computers.

    What is in the box:

    1 x 8 Port KVM switch

    16 x HDMI Cables

    8 x USB 3.0 cable

    1 x DC 5V 2A Power adapter

    1 x IR remote controller

    1 x User manual

    1 x wired remote push button

    2 x rack mount hook

    Tips: IR remote  does not include battery, (battery specification is CR2025 3V).
