16 Ports 17.3” LED VGA RackMount KVM, Support Up to 1920*1080 @60Hz (HL-1716B)

The HL-17 Series integrates an LED display, ultra-slim keyboard, and touchpad into a 1U-height unit with a drawer-type installation design. Compared to standard keyboards, displays, and mice, it thoroughly resolves space constraints and saves up to 85% of space. Equipped with a high-quality Grade A 17.3-inch LED display (with no bright dots), the built-in KVM switch enables direct management of 16 servers, supporting a maximum of 512 servers in total.

Product Features
Hardware Characteristics
Integrates a 17.3-inch LED FHD display and KVM console into a single dual-rail chassis, occupying only 1U rack space.
The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Drawer-type design with front-panel USB ports supporting external keyboard and mouse connectivity.
Multiple Management Methods
Seamlessly switch between servers via hotkeys, front-panel buttons, OSD menu, IR remote control, or shortcut keys.
Equipped with auto-scan mode for continuous monitoring of user-selected hosts.
Hot-swappable support — add or remove servers at any time without powering off the device.
Quickly locate and select target servers by naming them or fuzzy-searching serial numbers (SN).
Management Capabilities
A single console manages 16 servers directly.
Cascadable with multiple units to support up to 512 computers in total.
Security Features
Supports multi-user account management, access level hierarchy, password protection, and PC/server name search.
High-Definition Resolution
17.3-inch LED LCD display with high brightness, sharp clarity, and a maximum resolution of 1920x1080@50-60Hz.
Dual-Rail Structure

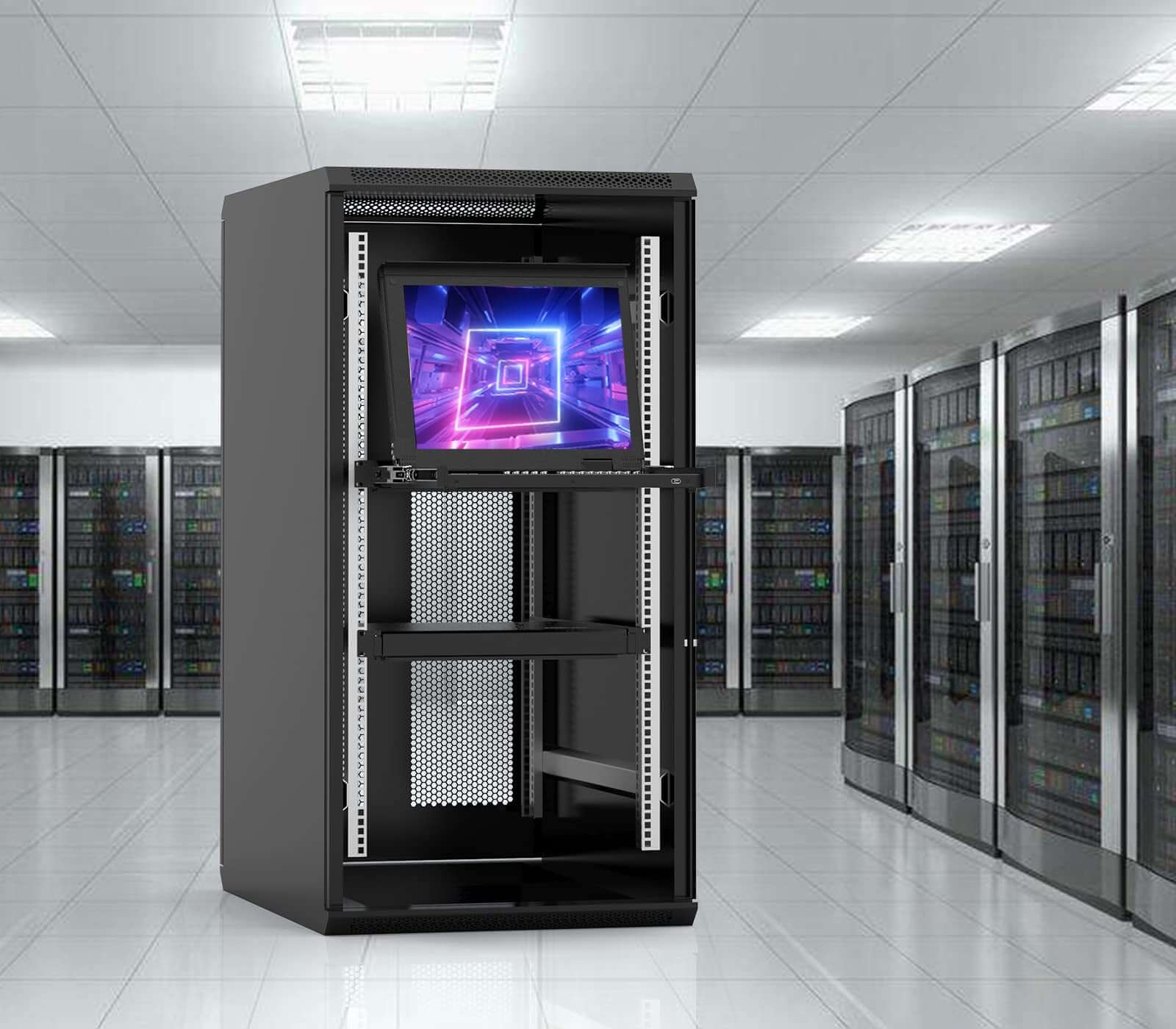

Retractable LED display, keyboard, and touchpad for optimal data center space utilization. When not in use, the keyboard/touchpad can be pushed back into the rack, leaving only the slim LED display exposed for convenient server status monitoring.
Wide OS Compatibility
Compatible with original servers from brands such as Inspur, Dahua, Huawei, Sugon, HP, Dell, and Lenovo; supports various X86/ARM industrial computers including Advantech, Yanxiang, and other series.

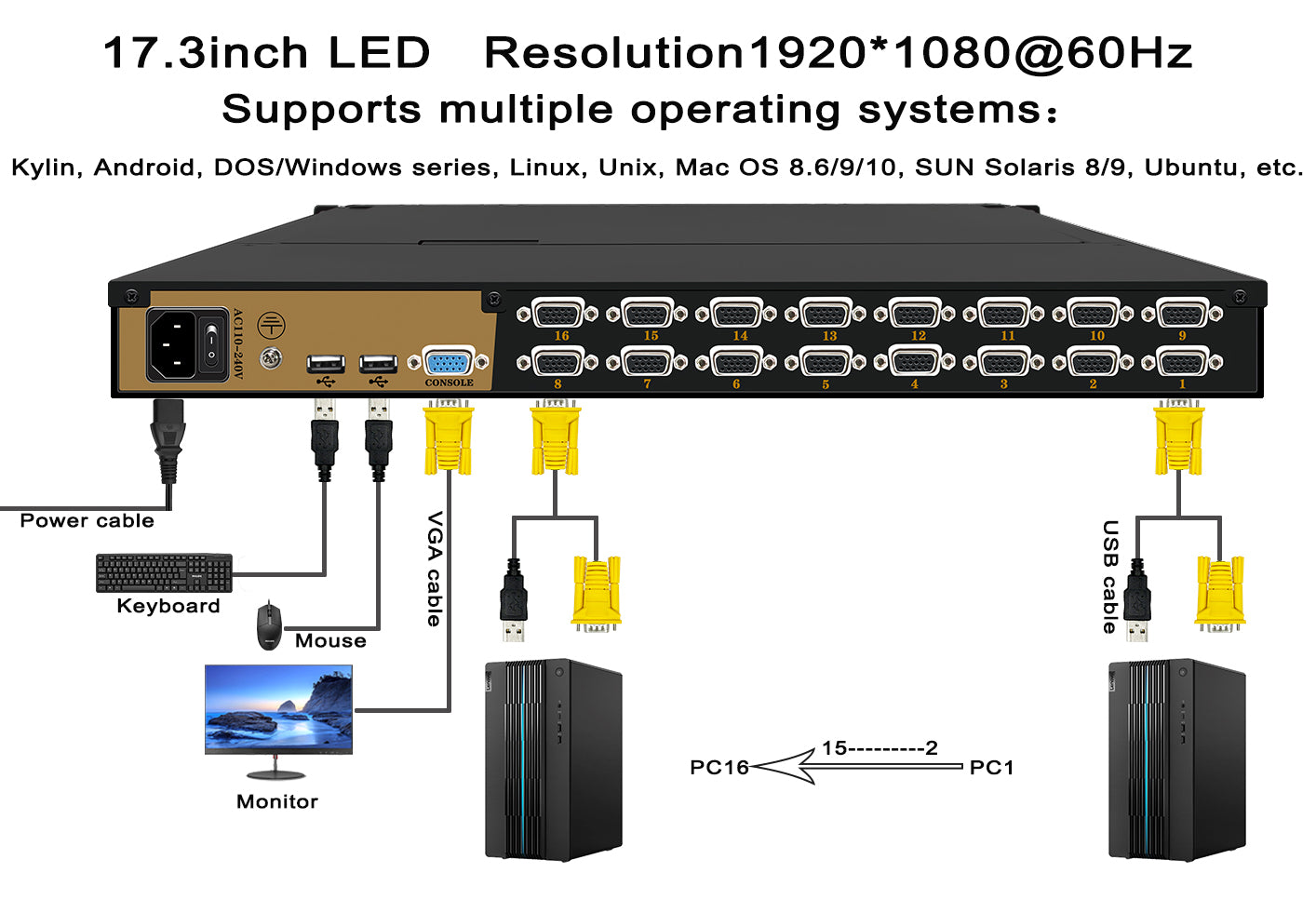

Works with multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.

Product Model: HL-1716B

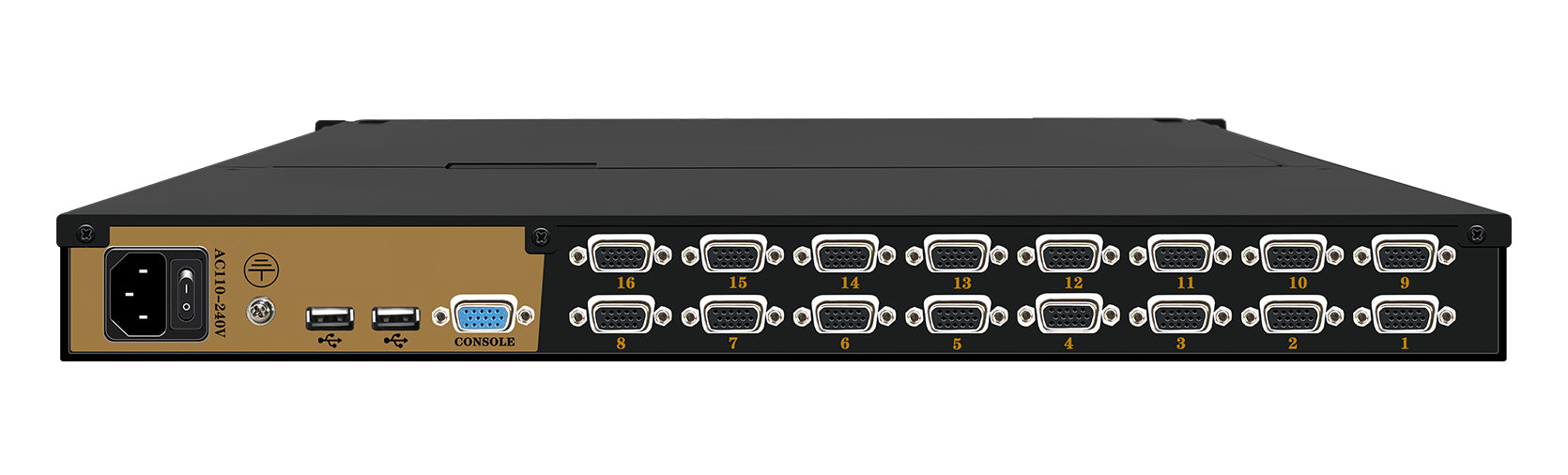

Direct Computer Connections 16 units: (16×USB inputs, 16×VGA video inputs); Audio-enabled version optional (16 audio inputs, 1 audio output)
Maximum Computer Connections: 512 units (cascade-supported)
Connection Port: DB15-USB Interface (Integrated VGA video signal & USB transmission cable)
Switching Scan Time: 5~999 seconds (OSD adjustable); Switching Time: 1 second
External Interfaces: 3×USB ports (supports keyboard, mouse, and USB flash drive)
LED Status: Indicator LED displays the currently accessed port
Channel Indicators: 16-channel indication; Green for signal input, Red for accessed port
Switching Modes: Hotkey switching, Button switching, OSD menu switching, IR remote control switching, Shortcut key switching
LED Display: 17.3-inch LED; Resolution: 1920×1080@60Hz; Brightness: 250 nits; Contrast Ratio: 1000:1
LED Display Control: Multi-language OSD for optimal display adjustment
Keyboard/Mouse: 100-key industrial notebook keyboard (83 standard keys + 17 independent numeric keys); Touchpad
Power Input: 110V-240V AC (DC input optional); 50Hz-60Hz; Power Consumption: 36W
Chassis Material: High-strength corrosion-resistant steel plate / Aluminum alloy
Color Insulating: black baking paint (custom colors available)
Compatible Cabinet: 1U cabinet (600-1200mm)

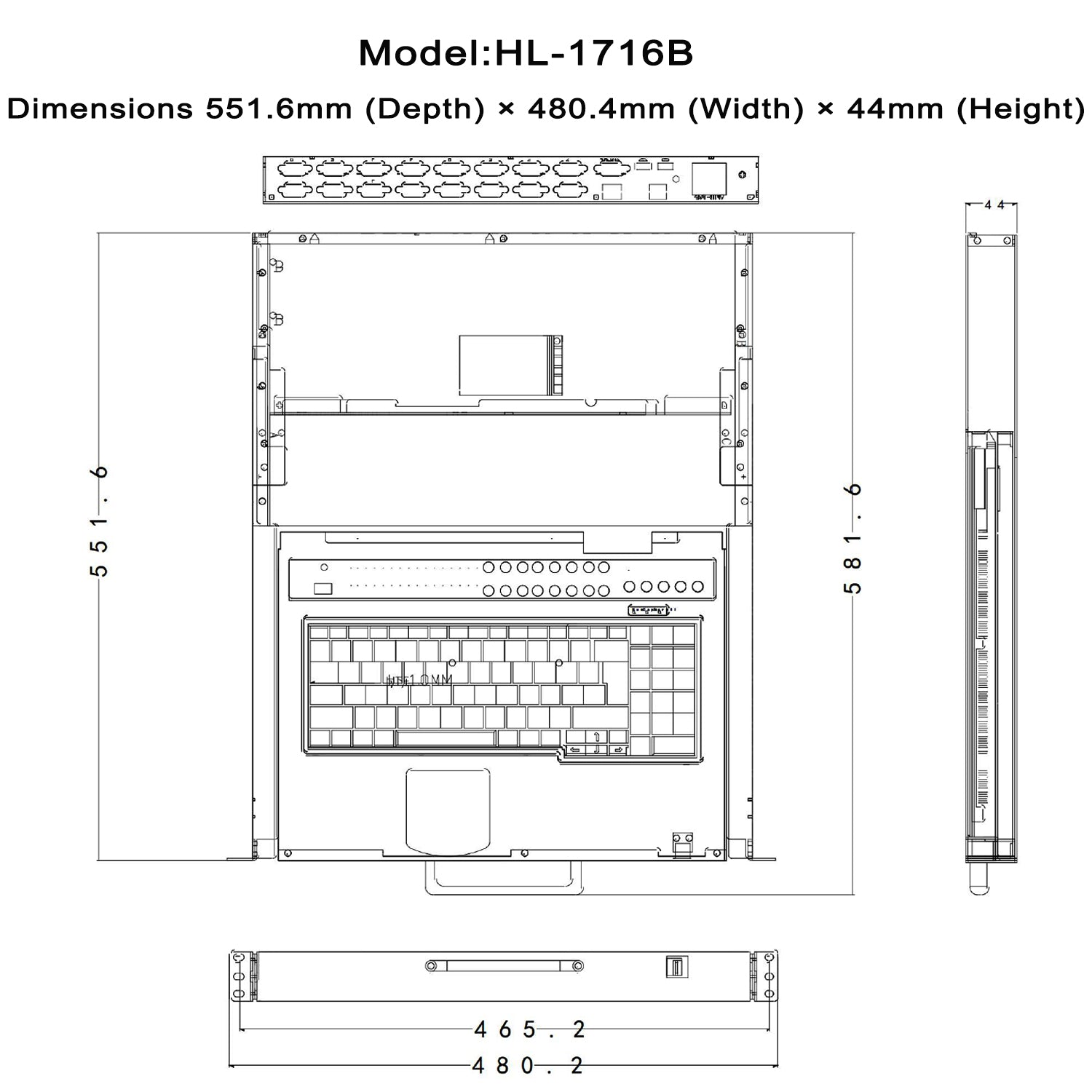

Overall Dimensions: 551.6mm (Depth) × 480.4mm (Width) × 44mm (Height)
Weight: 16.0KG
Storage Temperature: -30℃~70℃
Operating Temperature: -10℃~60℃
Humidity: 0%~80% RH (non-condensing)
Safety Certifications: 3C, FCC, CE, RoHS, ISO9001

What's in the box:
1*KVM Switch
16*VGA cable
1*Remoter
1*Power adapter
2*mount rack
