2 Port DVI KVM Switch Dual Monitor 1920x1080 CKL-922D
- Control 2 DVI computers with one set of keyboard, mouse and 2 Monitors
- Support 2 DVI monitor outputs for extended or mirrored display
- Support multiple switching modes including keyboard hotkey, mouse click, toggle button, and wired remoter switching
- Cross support major operation systems such as Windows, Linux, Mac and More
- With Extra USB 2.0 HUB and Audio support. Please be reminded that DVI cables are not included
CKL DVI KVM Switch Dual Monitor 2 Port 922D
CKL-922D DVI KVM Switch dual monitor is designed to control 2 dual DVI graphic output computers using one set of keyboard, mouse and 2 monitors which support extended or duplicated display at the same time.
Otherwise please consider other CKL branded KVM models whichever fits your configures better or use adapters for non-DVI interfaces, the less adapter the better. Please be aware of this before order.

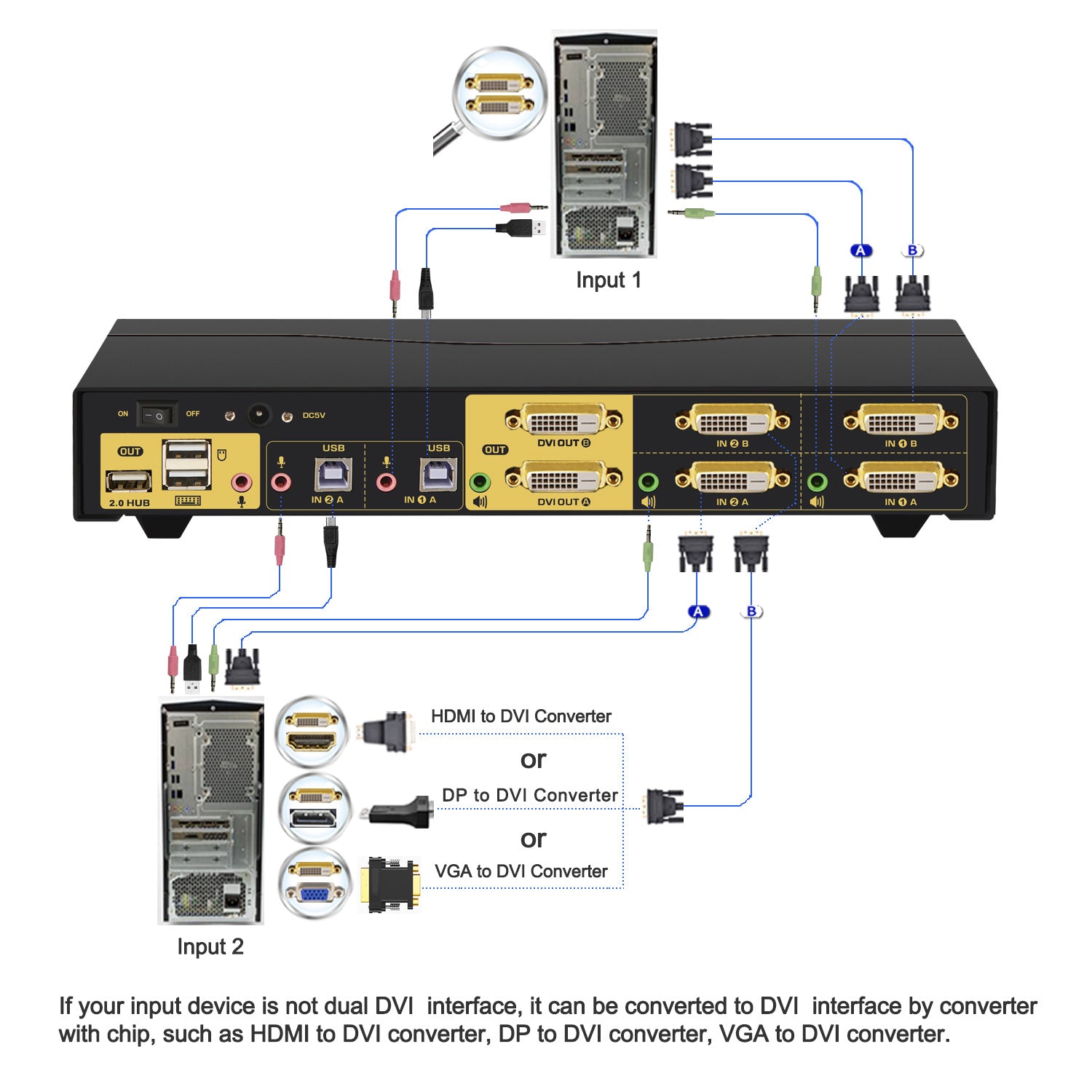

Installation Diagram (Make sure cable connection is correct for each input device)
Recommended Configures
2 computers with dual DVI graphic cards 2 DVI monitors 1 set wired or wireless keyboard and mouse
How to Get Dual Monitor Work:
Each computer needs 2 DVI connections to DVI IN A and IN B ports respectively. Computer 1 goes to IN 1 A and IN 1 B, computer 2 goes to IN 2 A and IN 2 B.
How to Get Keyboard and Mouse Work:
Connect a USB 2.0 port on each computer to USB IN A port on the KVM using the USB A-male to B-male cables included. Computer 1 goes to IN 1 A, computer 2 goes to IN 2 A.

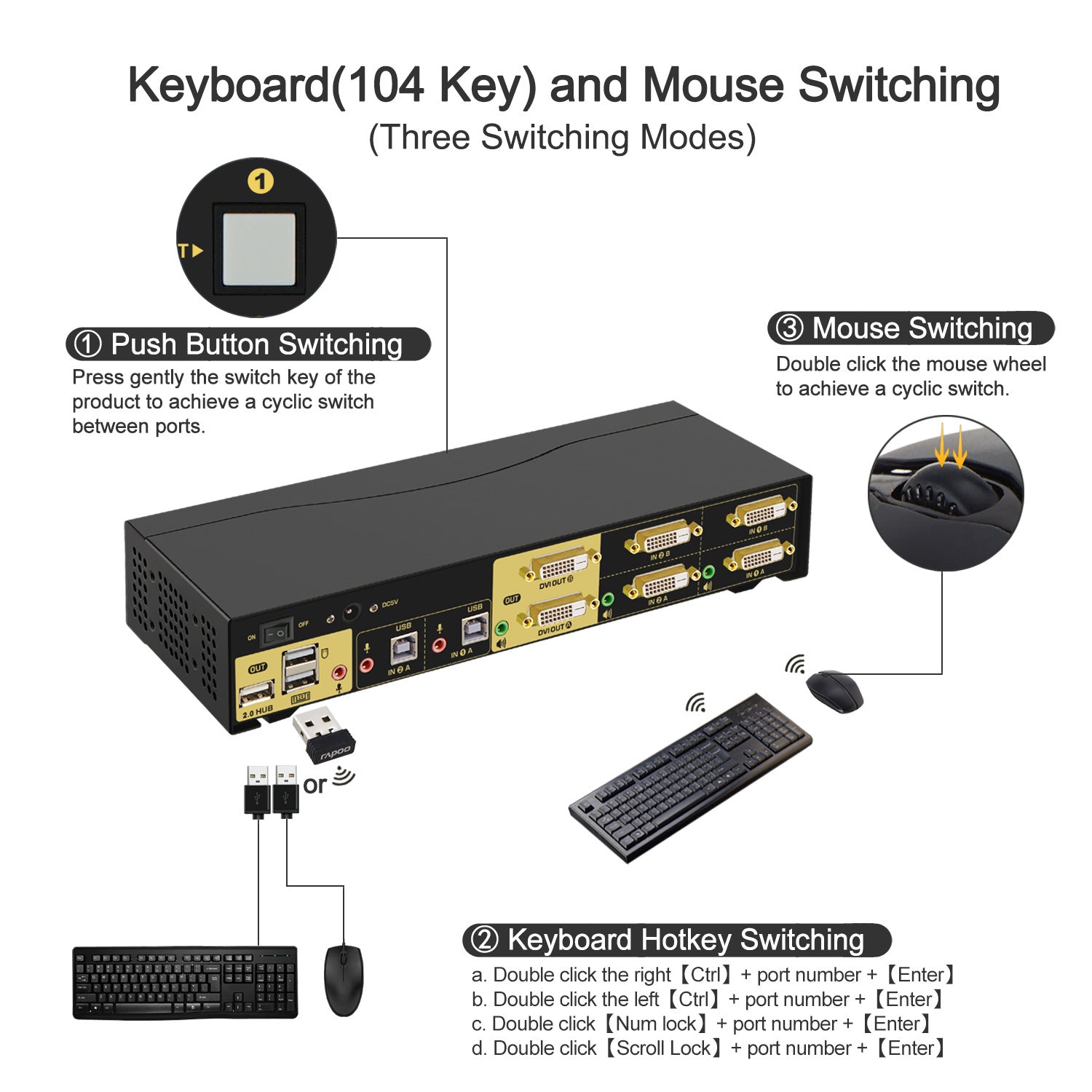

5 Switching Modes
Default Hotkey Rght Ctrl can be Changed to Num Lock or Scroll Lock, Support Mac keyboard
1.Keyboard Hotkey Switch: Double click the right Ctrl then Port Number then Enter
2. Mouse Click Switch: Double click the middle roller of mouse
3. Push Button Switch: Simply press teh white button on front panel
4. Auto Scan Switch: Interval time adjustable between 8 to 999 seconds (default is inactive).
5. Wired remote switch: optional when special keyboard and mouse do not work well on rear USB ports.

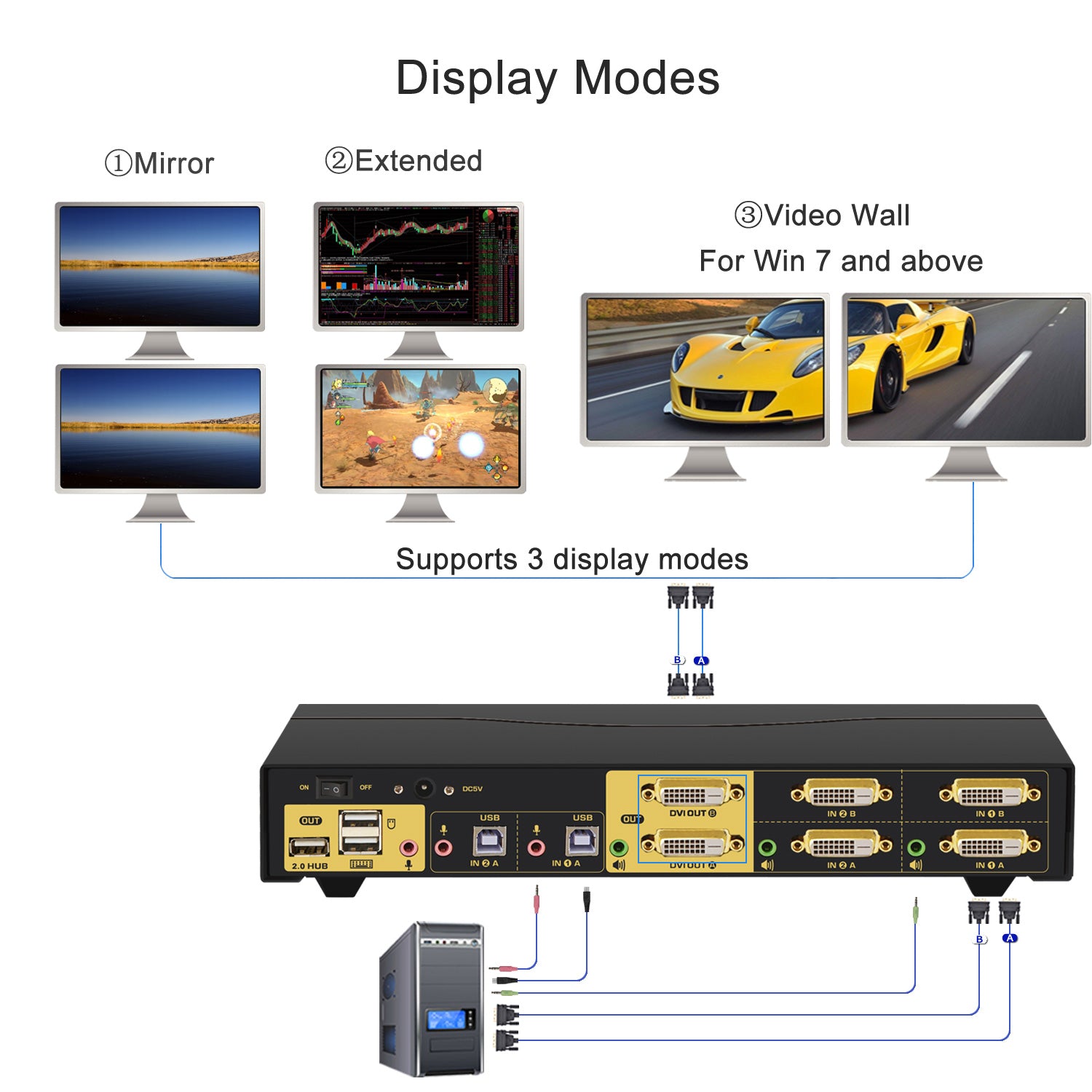

Multiple Dispaly Modes
Support 3 display modes depending on computer setting:
- Extended
- Mirrored
- Spliced

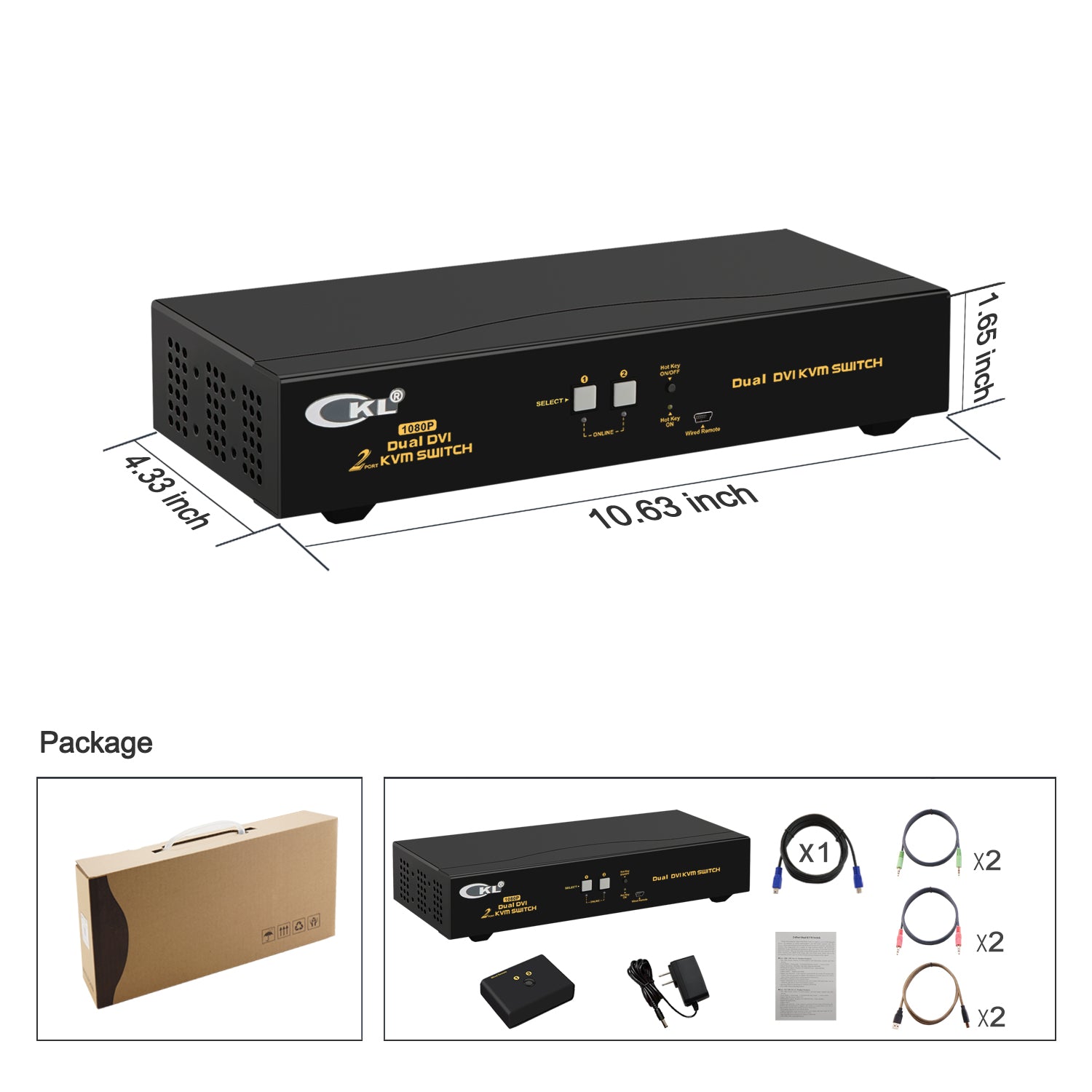

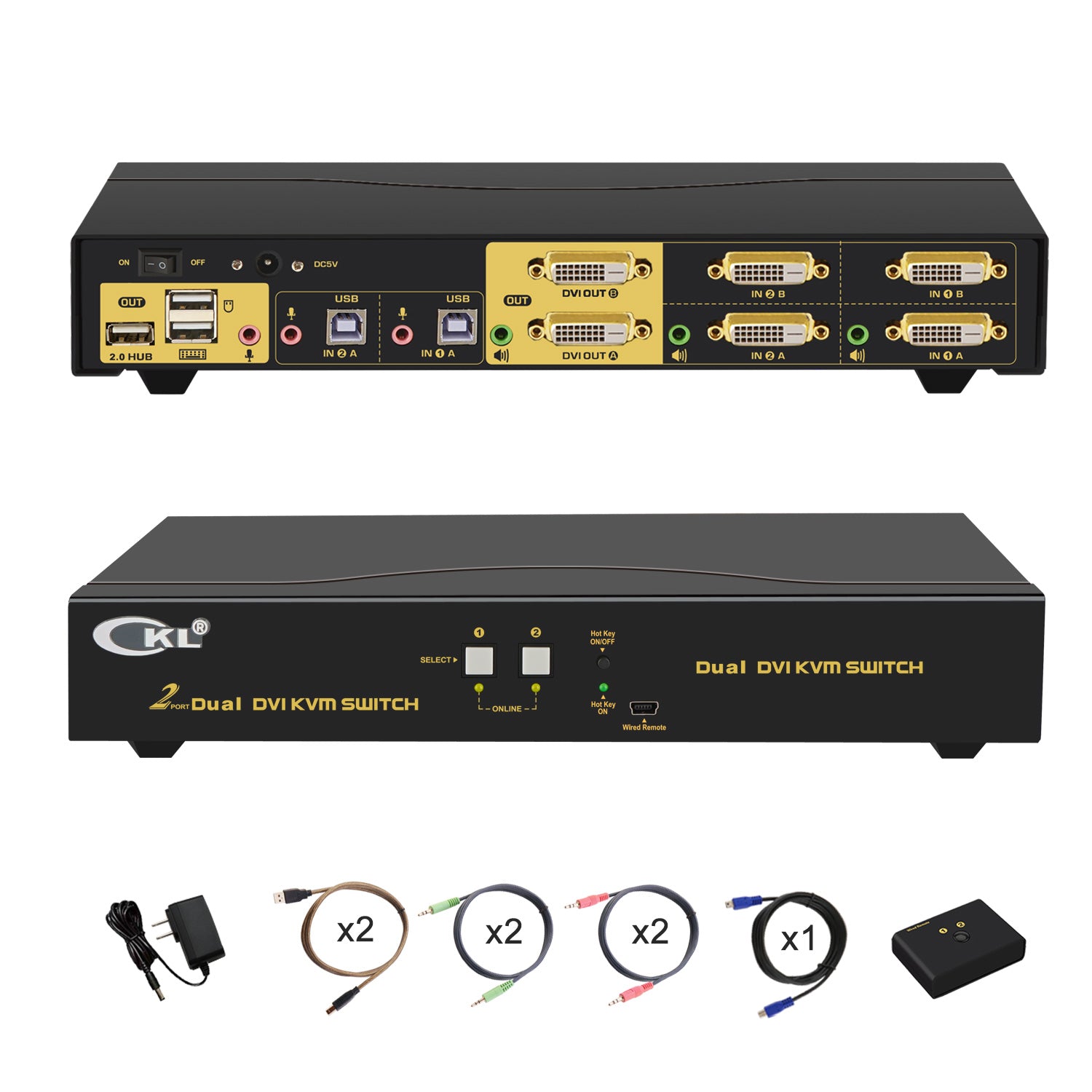

What's in the box
1*2 port Dual Monitor DVI KVM Switch
2 *USB A-male to B-male cables
2 * audio cables (green)
2 x microphone cables (pink)
1*Power adapter
1*User Manual
Friendly Reminder:
DVI cables are not included in the package. Please be aware of the cables needed for your setup before order!
