16 ports 18.5” LED VGA RackMount KVM Switch, Support Up to 1920*1080 @60Hz (TX-8816U)

The TX-88 Series integrates an LED display, ultra-slim keyboard, and touchpad into a 1U height unit with a drawer-type installation design. Compared to standard keyboards, displays, and mice that often face space constraints, it saves up to 85% of rack space. Equipped with a high-quality Grade A 18.5” LED display (zero bright pixels), the built-in KVM switch allows direct management of 16 servers, and supports cascading to control up to 512 servers in total.

Product Features
Hardware Features
Integrates an 18.5-inch LED FHD display and KVM console into a single dual-rail chassis, occupying only 1U rack space.
The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Drawer-type design with front-panel USB ports supporting external keyboard and mouse connections.
Multiple Management Methods
Seamlessly switch between servers via hotkeys, front-panel buttons, OSD menu, remote control, or shortcut keys.
Equipped with auto-scan mode for continuous monitoring of user-selected hosts.
Hot-swappable support — add or remove servers at any time without powering off the system.
Quick locate and select target servers by assigning custom names or fuzzy searching via serial number (SN).
Management Capabilities
Single console controls 16 servers directly.
Cascadable with multiple units to manage up to 512 computers in total.
Security Features
Supports multi-user account management, access hierarchy, password protection, and PC/server name search.
High-Definition Resolution
18.5-inch LED LCD display with high brightness, sharp image quality, and a maximum resolution of 1920x1080@50-60Hz.
Dual-Rail Structure

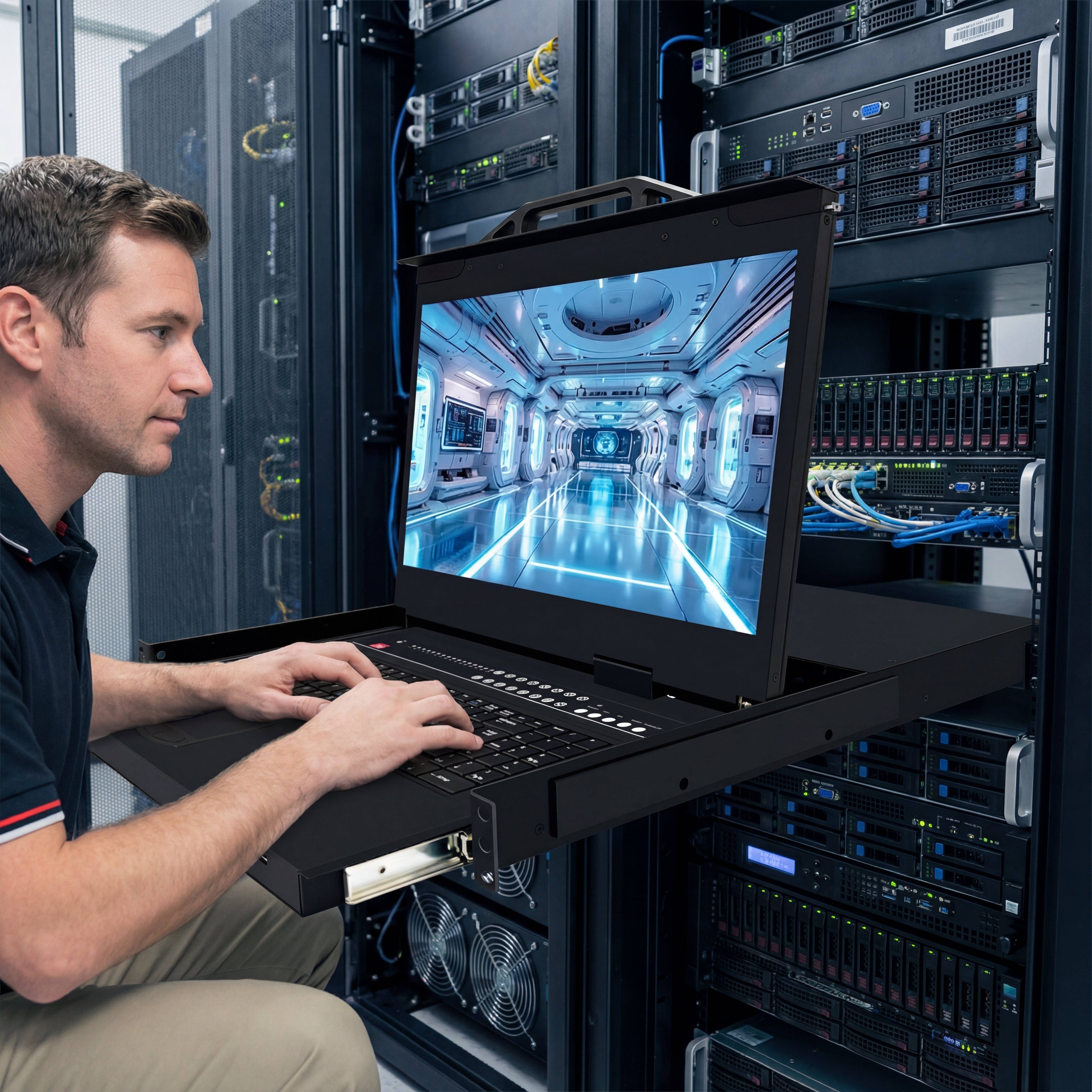

The LED display, keyboard, and touchpad are retractable to optimize data center space utilization. When not in use, the keyboard/touchpad can be pushed back into the rack, leaving only the slim LED display exposed for convenient server status monitoring.
Wide OS Compatibility
Compatible with original servers from architectures such as Inspur, Dahua, Huawei, Sugon, HP, DELL, and Lenovo; supports various X86 and ARM industrial computers including Advantech,  (Yanxiang), and other series.
Works with multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.

Specification Item Details
Product Model： TX-8816U
Direct Computer Connections： 16 units (16USB inputs, 16VGA video inputs); Audio-enabled version optional (16 audio inputs, 1 output)
Maximum Computer Connections： 512 units (Cascade-supported)

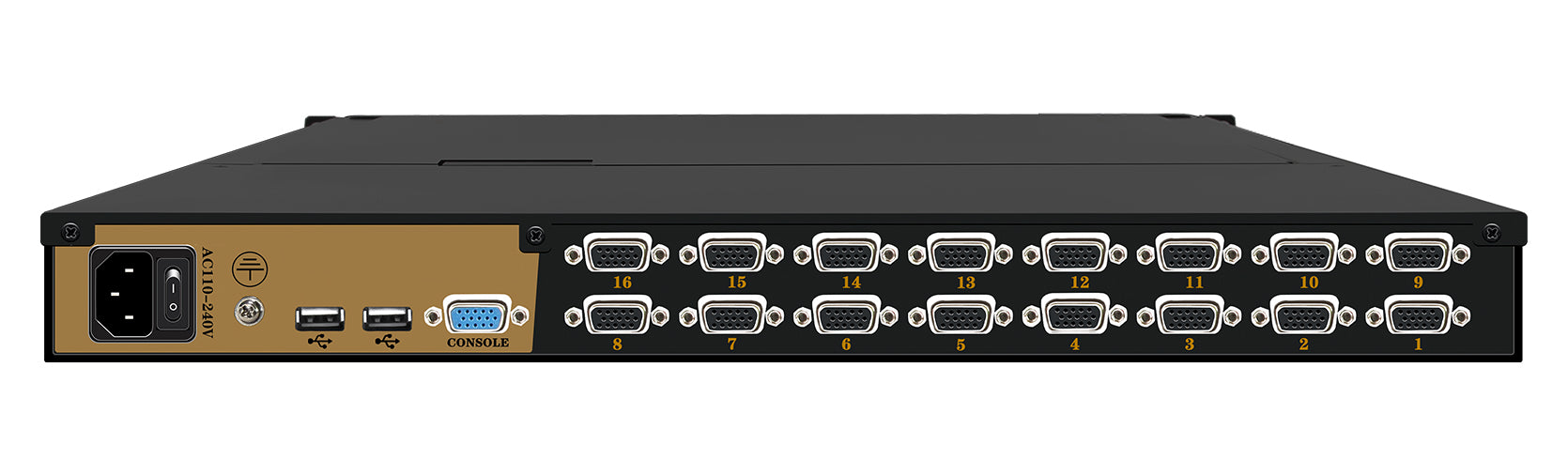

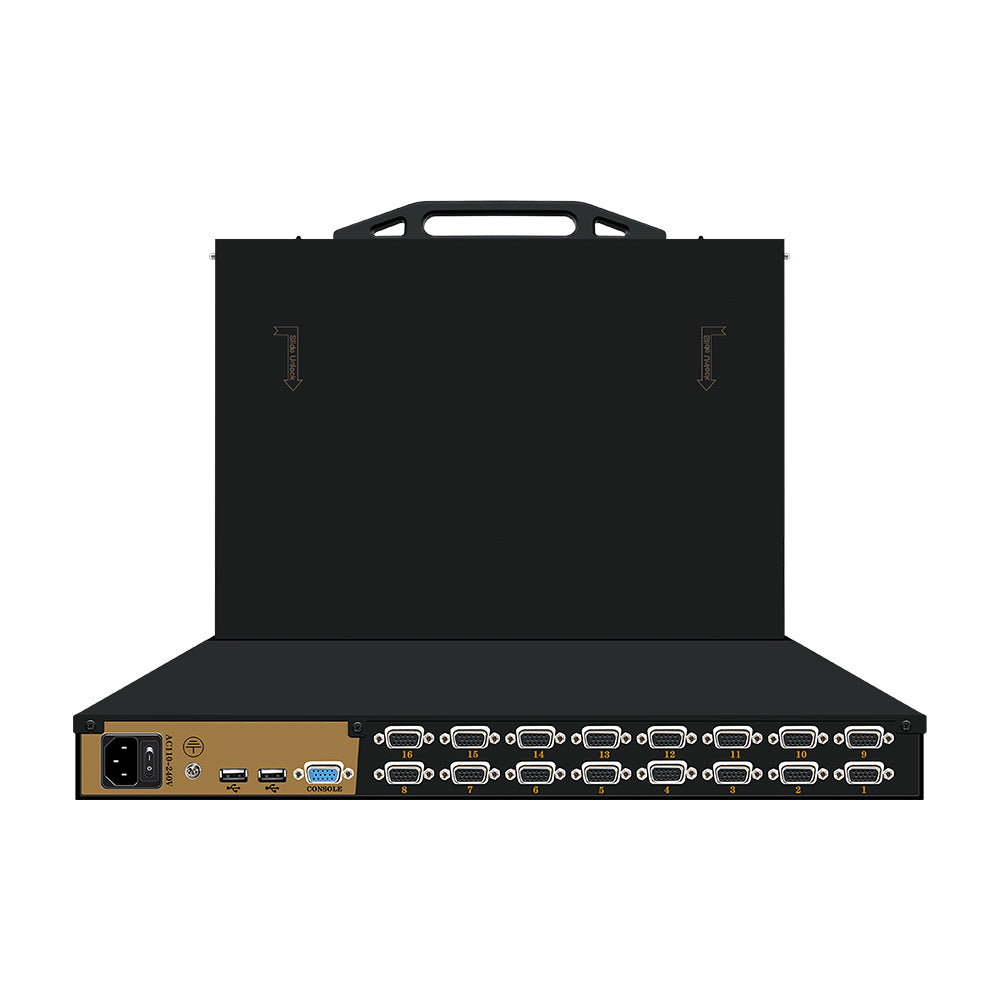

Connection Port Type： DB15-USB Combo Interface (Integrated VGA video & USB signal transmission cable)
Switching & Scanning Time： Scanning time: 5~999 seconds (OSD-adjustable); Switching time: 1 second
External Interfaces： 3*USB ports (supports keyboard, mouse, and USB flash drive)
LED Status： Indicator LED displays currently accessed port
Channel Indicators： 16-channel indicators (Green = Signal connected; Red = Port in use)
Switching Methods： Hotkey switching, Button switching, OSD menu switching, IR remote control switching, Shortcut key switching
LED Display： 18.5-inch LED; Resolution: 1920*1080@60Hz; Brightness: 250 nits; Contrast ratio: 1000:1
LED Display Control： Multi-language OSD for optimal display adjustment
Keyboard/Mouse： 100-key industrial notebook keyboard (83 standard keys + 17 independent numeric keys); Touchpad
Power Input： AC 110V-240V (DC input optional); 50Hz-60Hz; Power consumption: 36W
Chassis Material： High-strength corrosion-resistant steel / Aluminum alloy
Color Insulated： black baking finish (Custom colors available upon request)
Compatible Rack： 1U rack (600-1200mm depth)

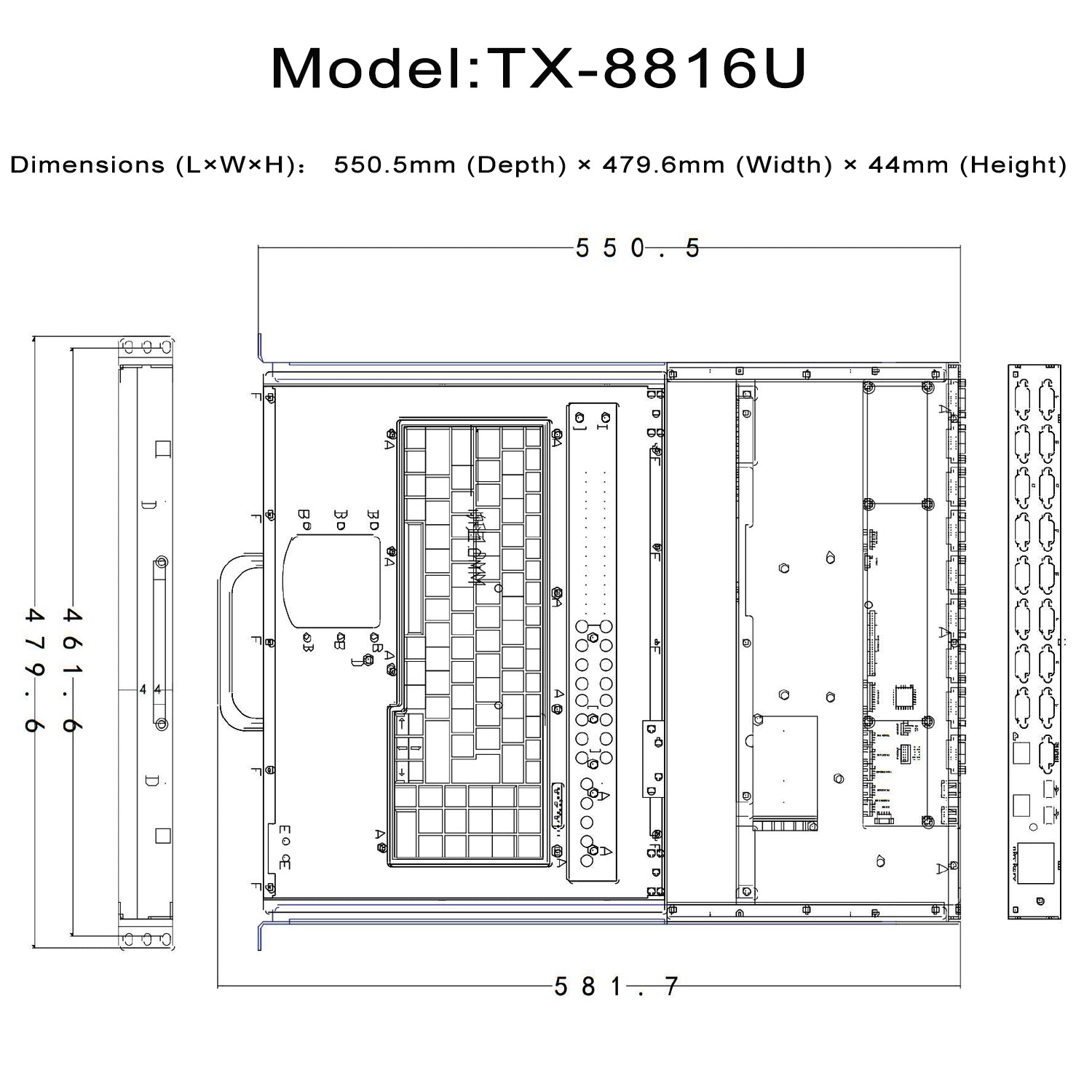

Dimensions (L×W×H)： 550.5mm (Depth) × 479.6mm (Width) × 44mm (Height)
Weight： 16.5KG
Storage Temperature： -30℃ ~ 70℃
Operating Temperature： -10℃ ~ 60℃
Humidity： 0% ~ 80% RH (non-condensing)
Safety Certifications： 3C, FCC, CE, ROHS, ISO9001

What's in the box:
1*KVM Switch
16*KVM cable
1*Remoter
1*Power adapter
2*mount rack
