16 Ports 18.5” LED VGA RackMount IP KVM Switch, Support Up to 1920*1080 @60Hz ( HL-1716DI)

The HL-17 Series integrates an LED display, ultra-slim keyboard, and mouse touchpad into a 1U-height unit with a drawer-type installation design. Compared to standard keyboards, displays, and mice that often face space constraints, it saves up to 85% of rack space. Equipped with a high-quality Grade A 17.3” LED display (with no bright pixels), the built-in KVM switch allows direct management of 16 servers; it can support up to 512 servers in a cascaded setup.

Hardware Characteristics
Integrates a 17.3-inch LED FHD display and KVM console into a single dual-rail chassis, occupying only 1U rack space.
The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Drawer-type design with front-panel USB ports for connecting external keyboards, mice, or other USB devices.
Multiple Management Methods
Seamlessly switch between servers via hotkeys, front-panel buttons, OSD menu, remote control, or shortcut keys.
Offers an auto-scan mode to continuously monitor user-selected hosts.
Supports hot-swapping — add or remove servers at any time without powering off the device.
Quickly locate and select target servers by naming them or using fuzzy search with SN (Serial Number).
Management Capabilities
Single console manages up to 16 servers directly.
Cascadable with multiple units to support management of up to 512 computers.
Security Features
Supports multi-user account management, access hierarchy, password protection, and server name search.
High-Definition Resolution
17.3-inch LED LCD display with high brightness, sharp clarity, and a maximum resolution of 1920x1080@50-60Hz.
Wide OS Compatibility
Compatible with original servers from architectures such as Inspur, Dahua, Huawei, Sugon, HP, DELL, and Lenovo; as well as various X86 and ARM industrial computers including Advantech,  (Yanxiang), and other series.
Supports multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.
IP Module Capabilities
Supports remote control and centralized management.
Enables 1 remote video channel with shared access for multiple users.
Supports remote firmware upgrade.

Product Model: HL-1716DI
Direct Computer Connections 16 units: (16USB inputs, 16VGA video inputs); Audio-enabled version optional (16 audio inputs, 1 output)
Maximum Computer Connections: 512 units (supports cascading)

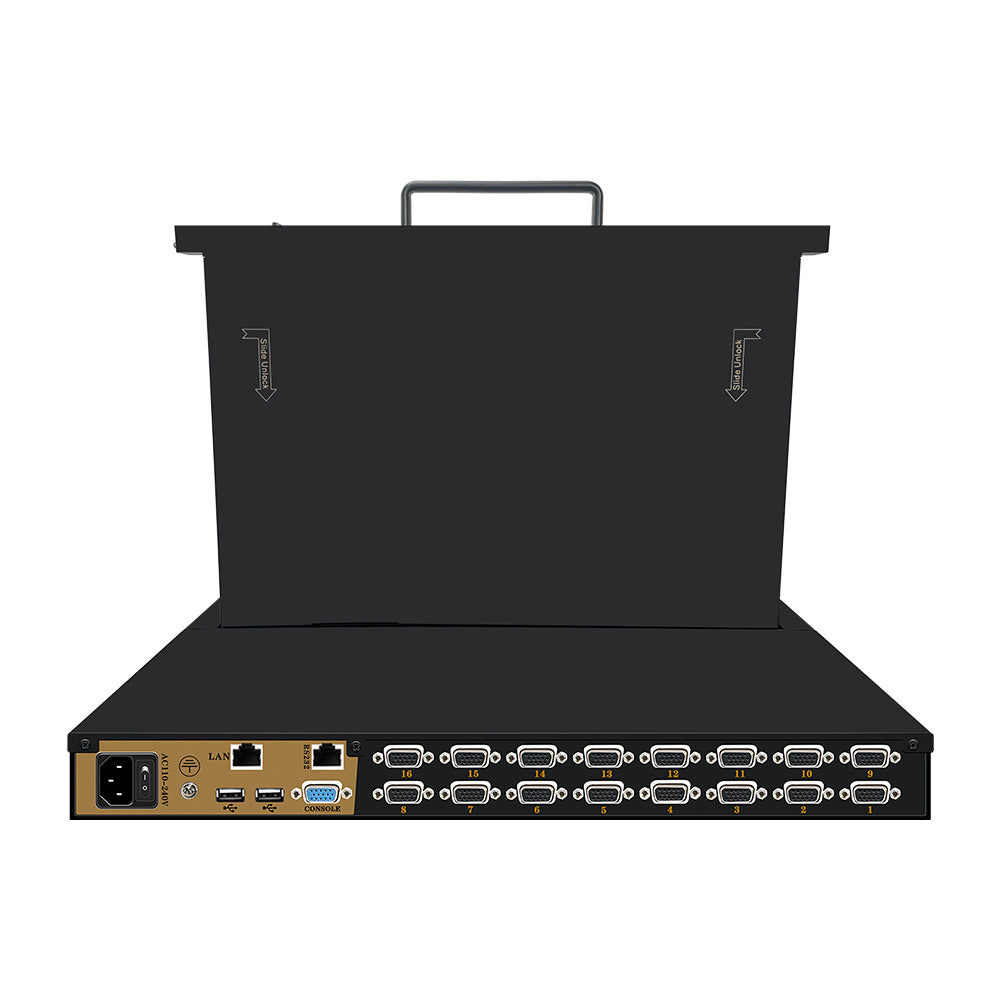

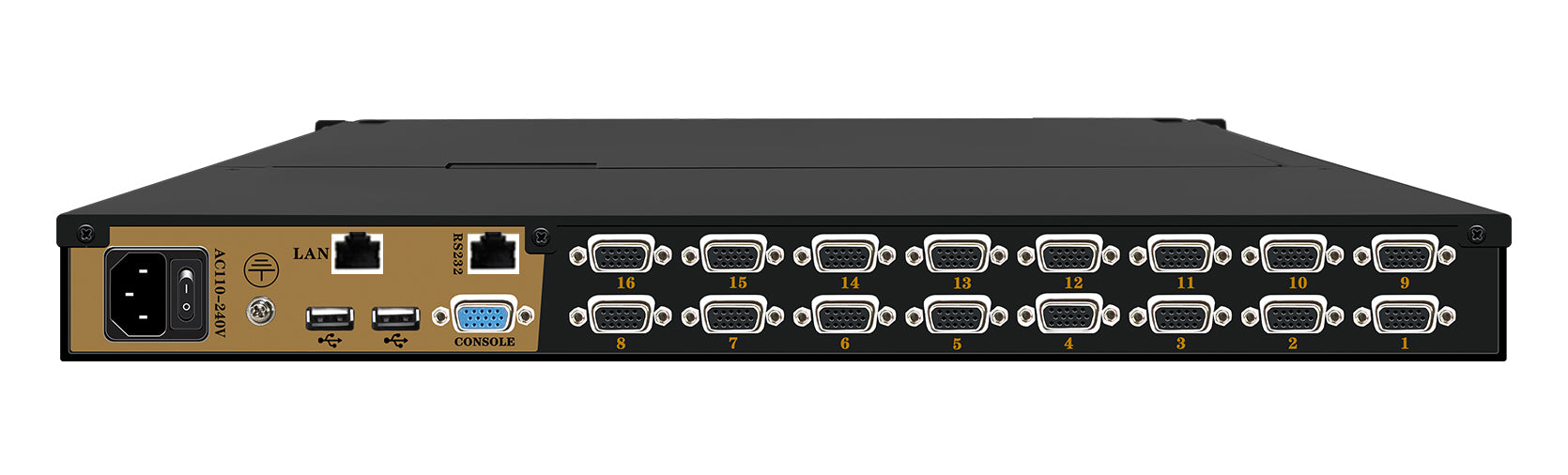

Connection Ports: DB15-USB combo interface (VGA video + USB transmission integrated cable), LAN port, RS232 port
Switching & Scanning Time: Scan time: 5~999 seconds (OSD adjustable); Switching time: 1 second
External Interfaces: Supports 3*external USB ports (for keyboard, mouse, USB flash drive, etc.)
LED Status: Indicators LED displays current accessed port
Channel Indicators: 16-channel indicators (green for signal connected, red for currently accessed port)
Switching Methods: Hotkey switching, front-panel button switching, OSD menu switching, IR remote control switching, shortcut key switching
LED Display: 17.3-inch LED; Resolution: 1920*1080@60Hz; Brightness: 250 nits; Contrast ratio: 1000:1
LED Display Control: Multi-language OSD for optimal display adjustment
Keyboard/Mouse: 100-key industrial notebook keyboard (83 standard keys + 17 independent numeric keys); Touchpad
Power Input: AC 110V-240V (DC input optional); Frequency: 50Hz-60Hz; Power consumption: 36W
Chassis Material: High-strength corrosion-resistant steel plate / aluminum alloy
Color: Insulated black baking paint (custom colors available)
Compatible Racks: 1U rack (600-1200mm depth)

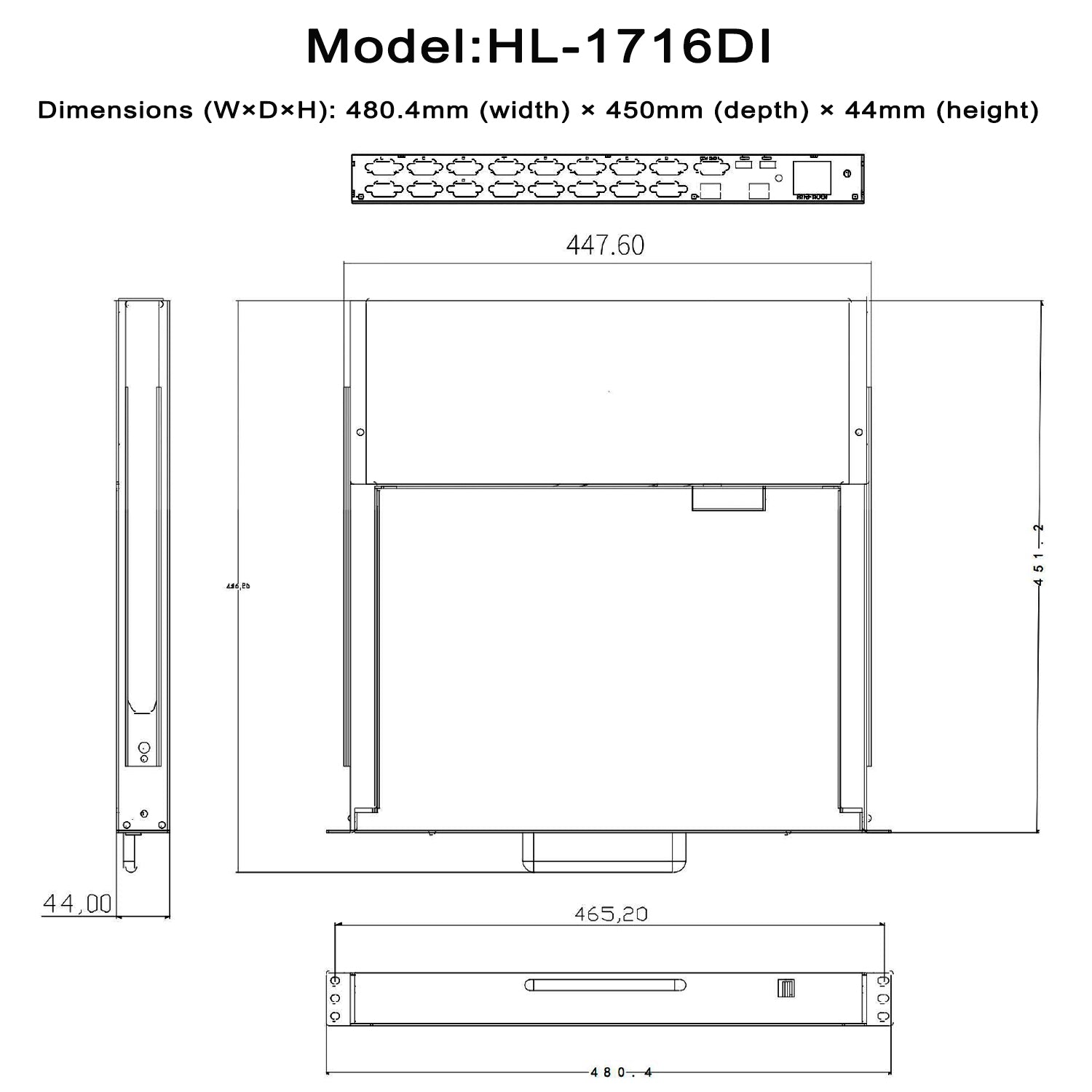

Dimensions (W×D×H): 480.4mm (width) × 450mm (depth) × 44mm (height)
Weight: 17.0KG
Storage Temperature: -30℃~70℃
Operating Temperature: -10℃~60℃
Humidity: 0%~80% RH (non-condensing)
Safety Certifications: 3C, FCC, CE, ROHS, ISO9001

What's in the box:
1*Power adapter
2*mount rack
1*KVM Switch
16*KVM cable
1*Remoter
