16 Ports 18.5” LED VGA RackMount IP KVM Switch, Support Up to 1920*1080 @60Hz ( HL-1716BI)

The HL-17 Series integrates an LED display, ultra-slim keyboard, and touchpad into a 1U-height unit with a drawer-type installation design. Compared to standard keyboards, displays, and mice that often face space constraints, it saves up to 85% of rack space. Equipped with a high-quality Grade A 17.3” LED display (zero bright pixels), the built-in KVM switch enables direct management of 16 servers and supports cascading to control a maximum of 512 servers.

Product Features
Hardware Features
Integrates a 17.3-inch LED FHD display and KVM console into a single dual-rail chassis, occupying only 1U rack space.
The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Drawer-type design with front-panel USB ports supporting external keyboard and mouse connections.
Multiple Management Methods
Seamlessly switch between servers via hotkeys, front-panel buttons, OSD menu, remote control, or shortcut keys.
Equipped with auto-scan mode for continuous monitoring of user-selected hosts.
Hot-swappable support — add or remove servers at any time without powering off the system.
Quickly locate and select target servers by assigning custom names or fuzzy searching via serial number (SN).
Management Capabilities
Single console directly manages 16 servers.
Cascadable with multiple units to support up to 512 computers in total.
Security Features
Supports multi-user account management, access hierarchy, password protection, and PC/server name search.
High-Definition Resolution
17.3-inch LED LCD display with high brightness, sharp image quality, and a maximum resolution of 1920x1080@50-60Hz.
Wide OS Compatibility
Compatible with original servers from brands such as Inspur, Dahua, Huawei, Sugon, HP, DELL, and Lenovo; supports various X86 and ARM industrial computers including Advantech, Yanxiang, and other series.
Works with multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.
IP Module Capabilities
Supports remote control and centralized management.
Enables 1 remote video channel with shared access for multiple users.
Supports remote firmware upgrade.

Product Model: HL-1716BI
Direct Computer Connections 16 units: (16USB inputs, 16VGA video inputs); Audio-enabled version optional (16 audio inputs, 1 output)
Maximum Computer Connections: 512 units (Cascade-supported)

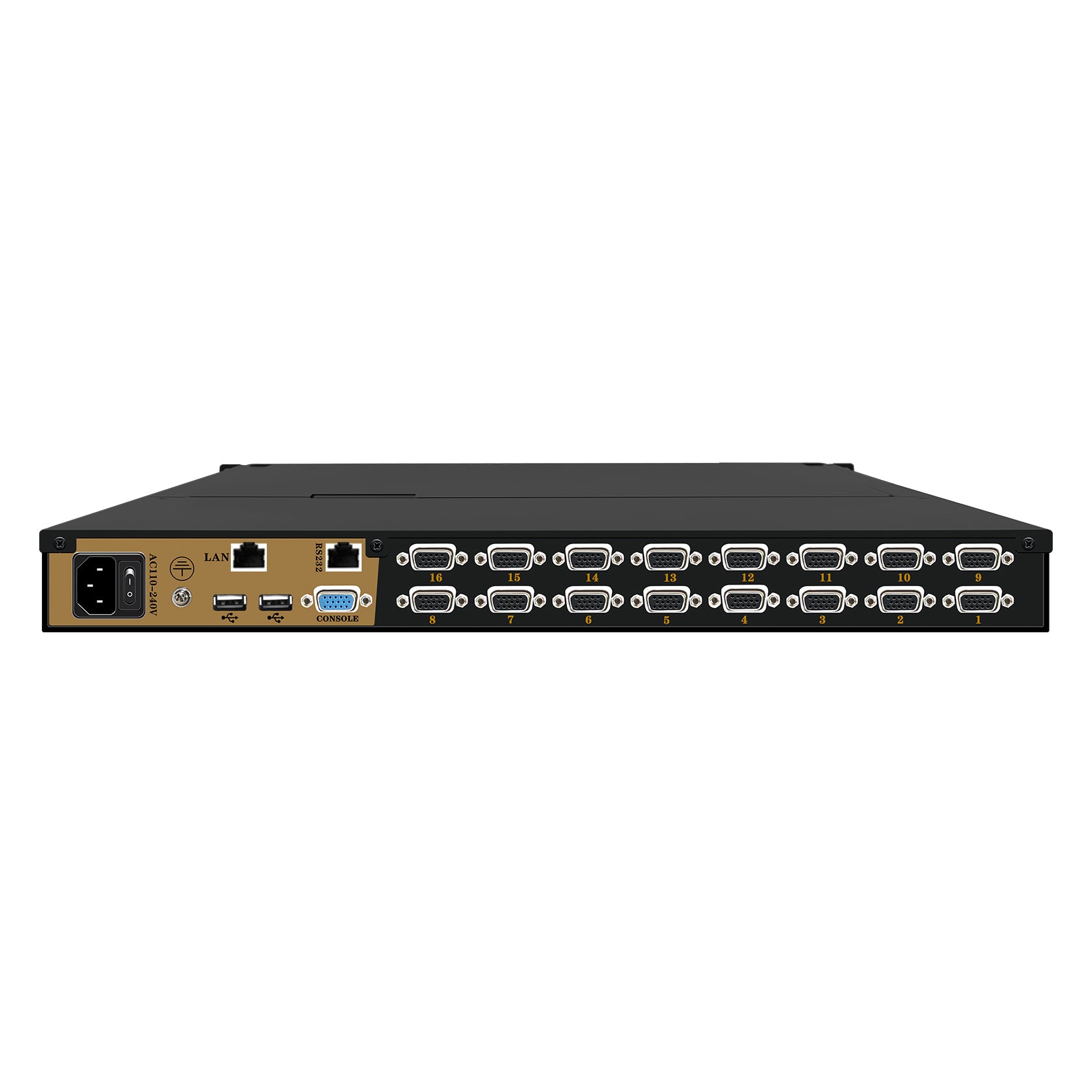

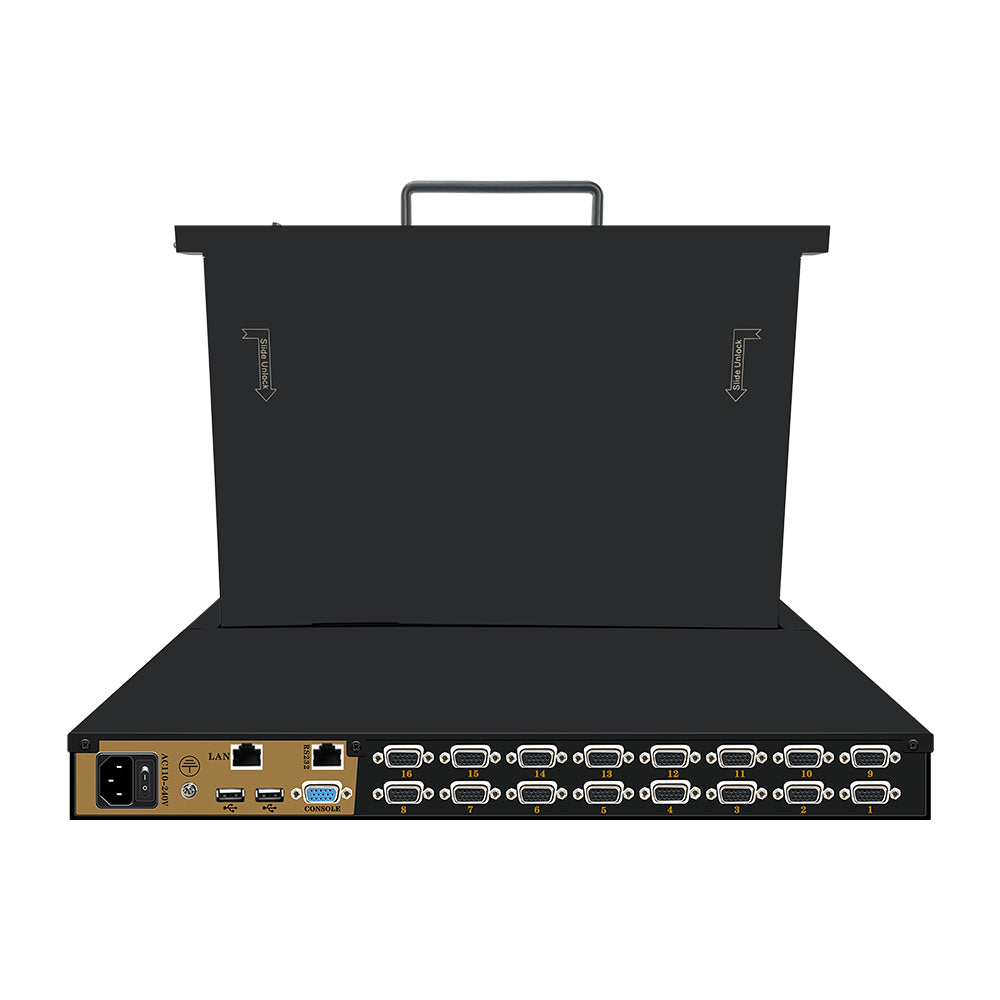

Connection Ports: DB15-USB Combo Interface (Integrated VGA video & USB signal transmission cable), LAN Port, RS232 Port
Switching & Scanning Time: Scanning time: 5~999 seconds (OSD-adjustable); Switching time: 1 second
External Interfaces: 3*USB ports (supports keyboard, mouse, and USB flash drive)
LED Status: Indicator LED displays currently accessed port
Channel Indicators: 16-channel indicators (Green = Signal connected; Red = Port in use)
Switching Methods: Hotkey switching, Button switching, OSD menu switching, IR remote control switching, Shortcut key switching
LED Display: 17.3-inch LED; Resolution: 1920*1080@60Hz; Brightness: 250 nits; Contrast ratio: 1000:1
LED Display Control: Multi-language OSD for optimal display adjustment
Keyboard/Mouse: 100-key industrial notebook keyboard (83 standard keys + 17 independent numeric keys); Touchpad
Power Input: AC 110V-240V (DC input optional); 50Hz-60Hz; Power consumption: 36W
Chassis Material: High-strength corrosion-resistant steel / Aluminum alloy
Color: Insulated black baking finish (Custom colors available upon request)
Compatible Rack: 1U rack (600-1200mm depth)

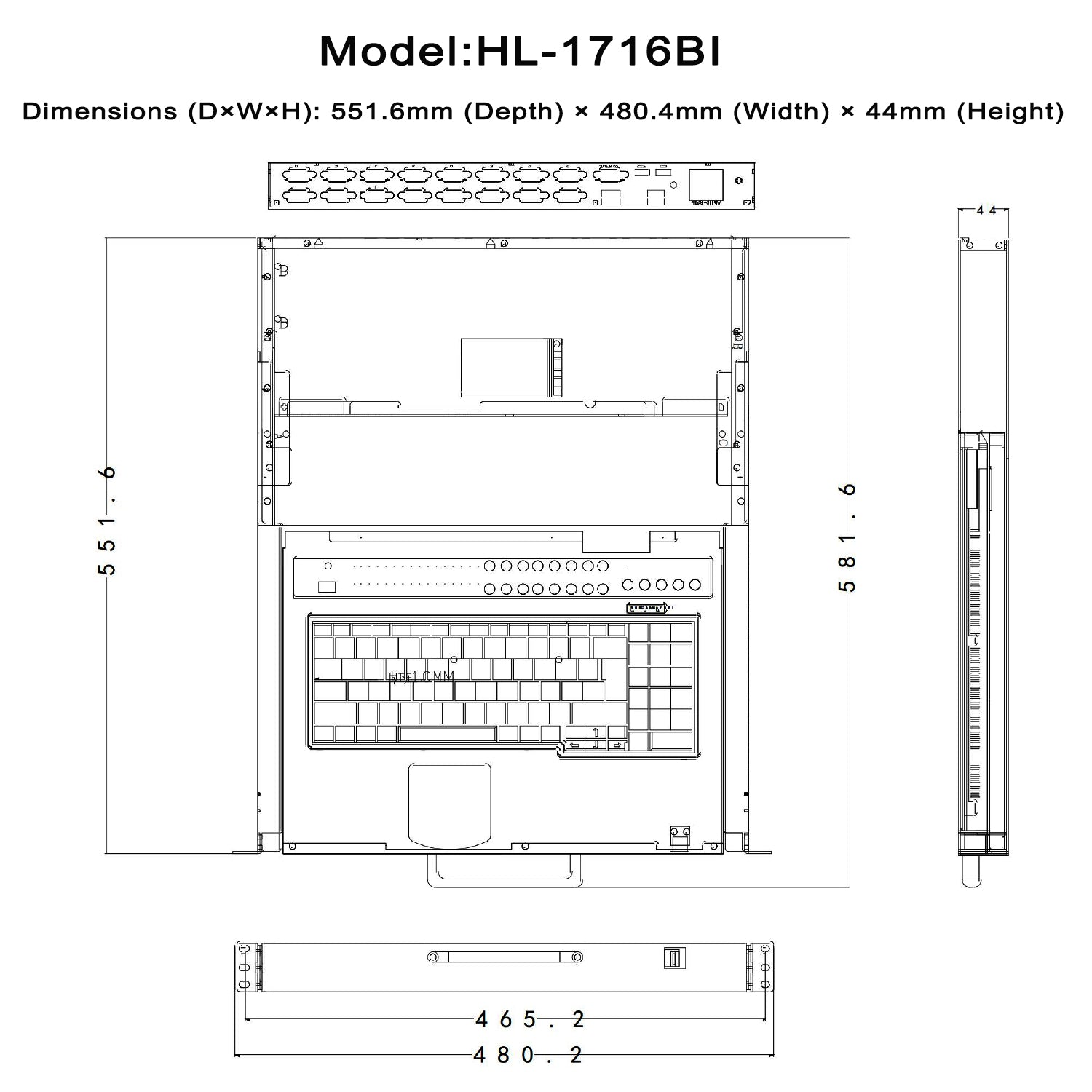

Dimensions (D×W×H): 551.6mm (Depth) × 480.4mm (Width) × 44mm (Height)
Weight: 17.5KG
Storage Temperature: -30℃ ~ 70℃
Operating Temperature: -10℃ ~ 60℃
Humidity: 0% ~ 80% RH (non-condensing)
Safety Certifications: 3C, FCC, CE, ROHS, ISO9001

What's in the box:
1*KVM Switch
16*KVM cable
1*Remoter
1*Power adapter
2*mount rack
