8 Port 18.5” LED VGA RackMount IP KVM, Support Up to 1920*1080 @60Hz (TX-8808I)

The TX-88 Series integrates an LED display, ultra-slim keyboard, and touchpad into a 1U-height unit with a drawer-type installation design. Compared to standard keyboards, displays, and mice, it thoroughly resolves space constraints and saves up to 85% of space. Equipped with a high-quality Grade A 18.5-inch LED display (with no bright dots), the built-in KVM switch enables direct management of 8 servers, supporting a maximum of 256 servers in total.

Product Features
Hardware Characteristics

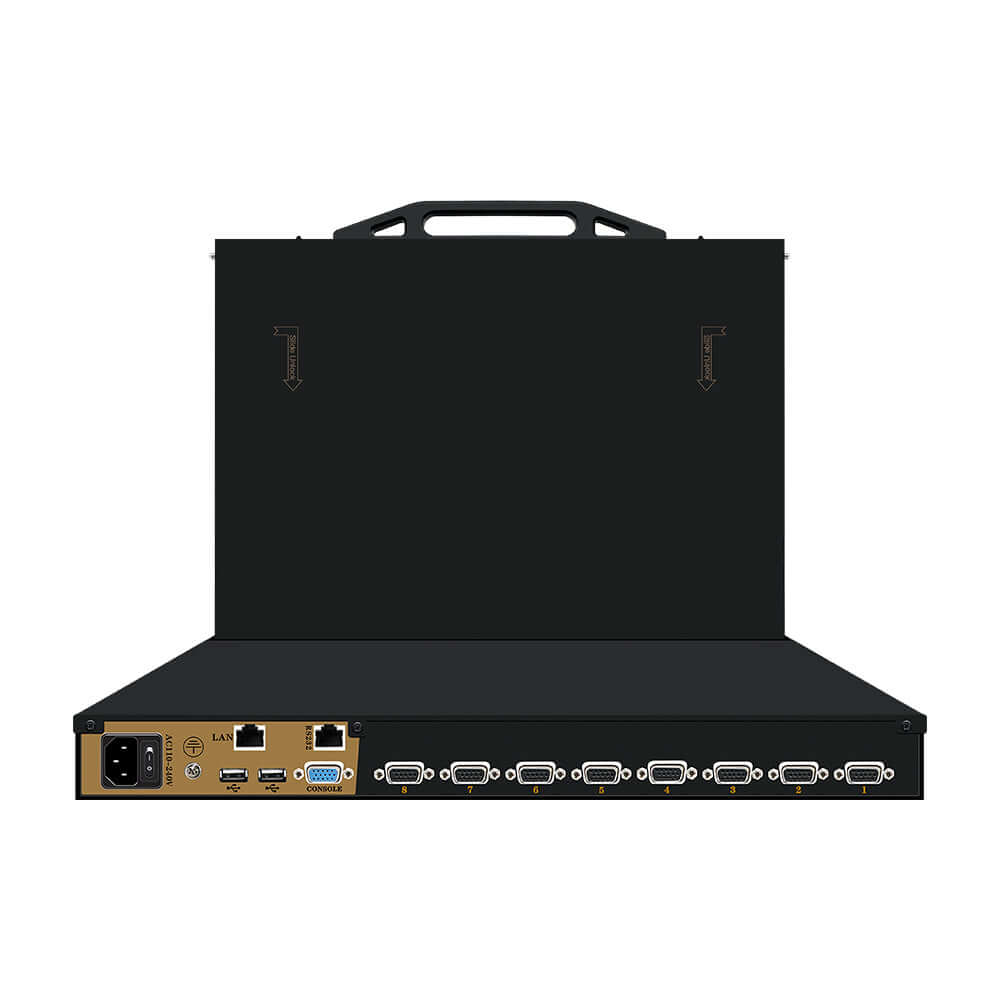

Integrates an 18.5-inch LED FHD display and KVM console into a single dual-rail chassis, occupying only 1U rack space.
The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Drawer-type design with front-panel USB ports supporting external keyboard and mouse connectivity.
Multiple Management Methods
Seamlessly switch between servers via hotkeys, front-panel buttons, OSD menu, IR remote control, or shortcut keys.
Equipped with auto-scan mode for continuous monitoring of user-selected hosts.
Hot-swappable support — add or remove servers at any time without powering off the device.
Quickly locate and select target servers by naming them or fuzzy-searching serial numbers (SN).
Management Capabilities
A single console manages 8 servers directly.
Cascadable with multiple units to support up to 256 computers in total.
Security Features
Supports multi-user account management, access level hierarchy, password protection, and PC/server name search.
High-Definition Resolution
18.5-inch LED LCD display with high brightness, sharp clarity, and a maximum resolution of 1920x1080@50-60Hz.
Wide OS Compatibility
Compatible with original servers from brands such as Inspur, Dahua, Huawei, Sugon, HP, Dell, and Lenovo; supports various X86/ARM industrial computers including Advantech, Yanxiang, and other series.
Works with multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.
IP Module Capabilities
Supports remote control and centralized management.
Supports 1 remote channel video stream with shared access for multiple users.
Supports remote firmware upgrade

Product Model： TX-8808I
Direct Computer Connections 8 units (8×USB inputs, 8×VGA video inputs); Audio-enabled version optional (8 audio inputs, 1 audio output)
Maximum Computer Connections 256 units (cascade-supported)

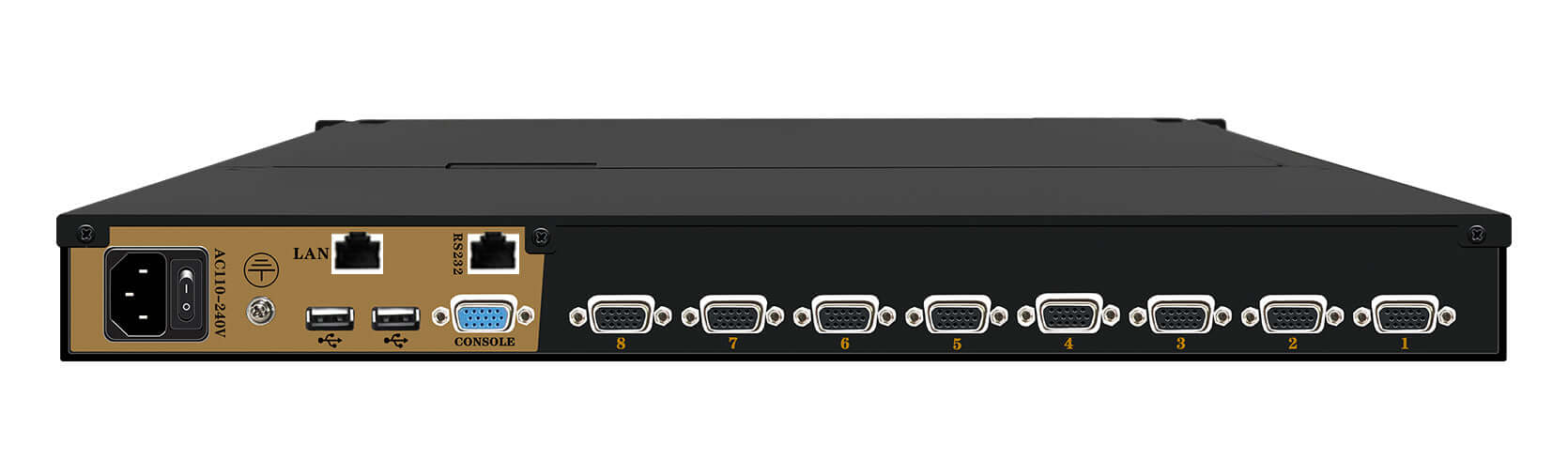

Connection Ports： DB15-USB Interface (Integrated VGA video signal & USB transmission cable), LAN Interface, RS232 Interface
Switching Scan Time： 5~999 seconds (OSD adjustable); Switching Time: 1 second
External Interfaces： 3×USB ports (supports keyboard, mouse, and USB flash drive)
LED Status： Indicator LED displays the currently accessed port
Channel Indicators 8-channel indication; Green for signal input, Red for accessed port
Switching Modes： Hotkey switching, Button switching, OSD menu switching, IR remote control switching, Shortcut key switching
LED Display： 18.5-inch LED; Resolution: 1920×1080@60Hz; Brightness: 250 nits; Contrast Ratio: 1000:1
LED Display Control： Multi-language OSD for optimal display adjustment
Keyboard/Mouse： 100-key industrial notebook keyboard (83 standard keys + 17 independent numeric keys); Touchpad
Power Input :110V-240V AC (DC input optional); 50Hz-60Hz; Power Consumption: 36W
Chassis Material： High-strength corrosion-resistant steel plate / Aluminum alloy
Color Insulating： black baking paint (custom colors available)
Compatible Cabinet： 1U cabinet (600-1200mm)

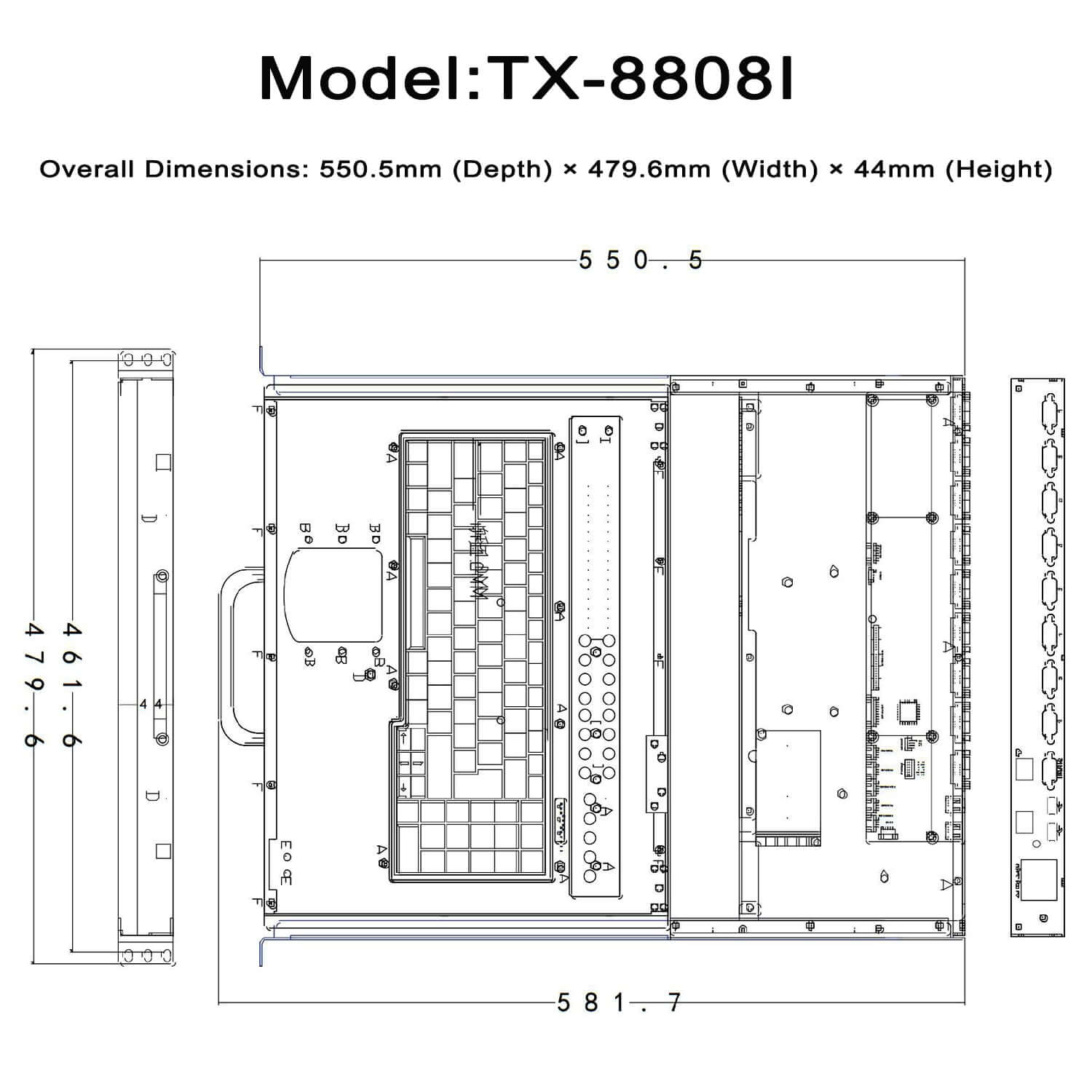

Overall Dimensions： 550.5mm (Depth) × 479.6mm (Width) × 44mm (Height)
Weight： 17.0KG
Storage Temperature： -30℃~70℃
Operating Temperature： -10℃~60℃
Humidity： 0%~80% RH (non-condensing)
Safety Certifications： 3C, FCC, CE, RoHS, ISO9001

What's in the box:
1*KVM Switch
8*VGA cable
1*Remoter
1*Power adapter
2*mount rack
