8 Port 17.3” LED VGA RackMount KVM, Support up to 1920*1080 @60Hz (HL-1708B)

The HL-17 Series integrates an LED display, ultra-slim keyboard, and mouse touchpad into a 1U height unit with a drawer-type installation design. It completely addresses space constraints, saving up to 85% of space compared to standard keyboards, displays, and mice. Equipped with a high-quality Grade A 17.3” LED display (zero bright pixels), the built-in switch allows direct management of 8 servers; it can support up to 256 servers in total.

Product Features
Hardware Features
Integrates a 17.3-inch LED FHD display and KVM console into a single dual-rail chassis, occupying only 1U rack space.
The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Drawer-type design with front-panel USB ports supporting external keyboard and mouse connections.
Multiple Management Methods
Seamlessly switch between servers via hotkeys, front-panel buttons, OSD menu, remote control, or shortcut keys.
Equipped with an auto-scan mode for continuous monitoring of user-selected hosts.
Hot-swap support: Add or remove servers at any time without powering off the device.
Quickly locate and select target servers by naming them or using fuzzy search with SN numbers.
Management Capabilities
Single console manages 8 servers directly.
Cascadable with multiple units to support up to 256 computers in total.
Security Features
Supports multi-user account management, access hierarchy, password protection, and PC/server name search.
High-Definition Resolution
17.3-inch LED LCD display with high brightness, sharp clarity, and a maximum resolution of 1920x1080@50-60Hz.
Dual-Rail Structure
Retractable LED display, keyboard, and touchpad for efficient server room space utilization. When not in use, the keyboard/touchpad can be pushed back into the rack, leaving only the slim LED display for convenient server status monitoring.
Wide OS Compatibility
Compatible with original servers from architectures such as Inspur, Dahua, Huawei, Sugon, HP, DELL, and Lenovo; supports various X86 and ARM industrial computers including Advantech, (Yanxiang), and other series.
Works with multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.

Product Model: HL-1708B
Direct Computer Connections 8 units (8USB inputs, 8VGA video inputs); Audio-enabled version optional (8 audio inputs, 1 audio output)
Maximum Computer: Connections 256 units (Cascade-supported)
Connection Port: DB15-USB Interface (Integrated VGA video signal & USB transmission cable)
Switch Scan Time: 5~999 seconds (OSD adjustable); Switching Time: 1 second
External Interfaces: 3*USB ports (supports keyboard, mouse, and USB flash drive)
LED Status: Indicator LED displays current access port
Channel Indicators: 8-channel indication; Green for signal connected, Red for active access port
Switching Methods: Hotkey switching, Button switching, OSD menu switching, IR remote control switching, Shortcut key switching
LED Display: 17.3-inch LED; Resolution: 1920*1080@60Hz; Brightness: 250nits; Contrast Ratio: 1000:1
LED Display Control Multi-language OSD for optimal display adjustment
Keyboard/Mouse: 100-key industrial notebook keyboard (83 standard keys + 17 independent numeric keys); Touchpad
Input Voltage: 110V-240V AC (DC input optional); 50Hz-60Hz; Power: 36W
Chassis Material: High-strength corrosion-resistant steel plate / Aluminum alloy
Color Insulating: black baking paint (Custom colors available)
Compatible Rack: 1U rack (600-1200mm)

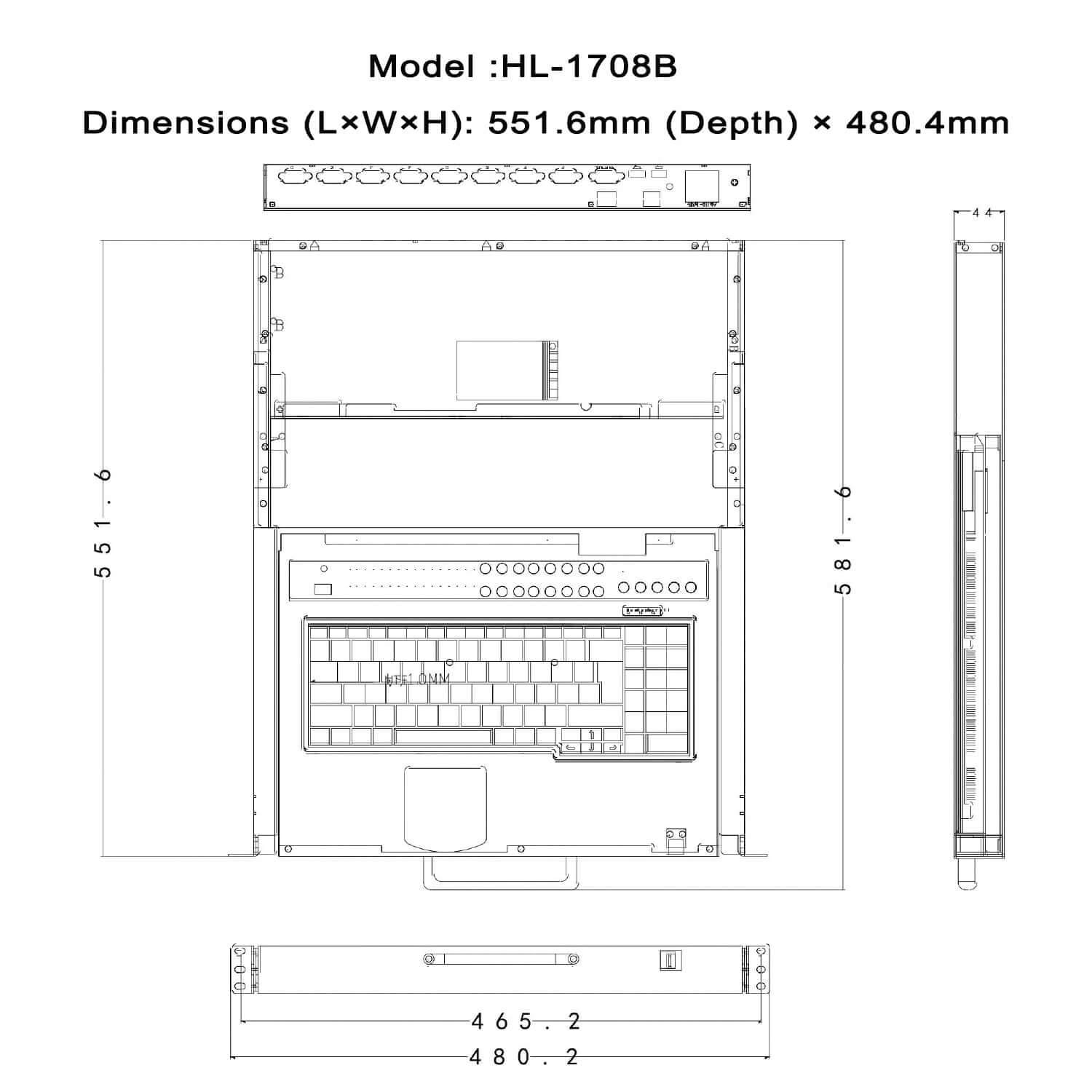

Dimensions (L×W×H): 551.6mm (Depth) × 480.4mm (Width) × 44mm (Height)
Weight: 16.0KG
Storage Temperature: -30℃~70℃
Operating Temperature: -10℃~60℃
Humidity: 0%~80% RH (Non-condensing)
Safety Certifications: 3C, FCC, CE, ROHS, ISO9001

What's in the box:

1* KVM Switch

8* VGA cable

1* Remoter

1* Power adapter

2* mount rack
