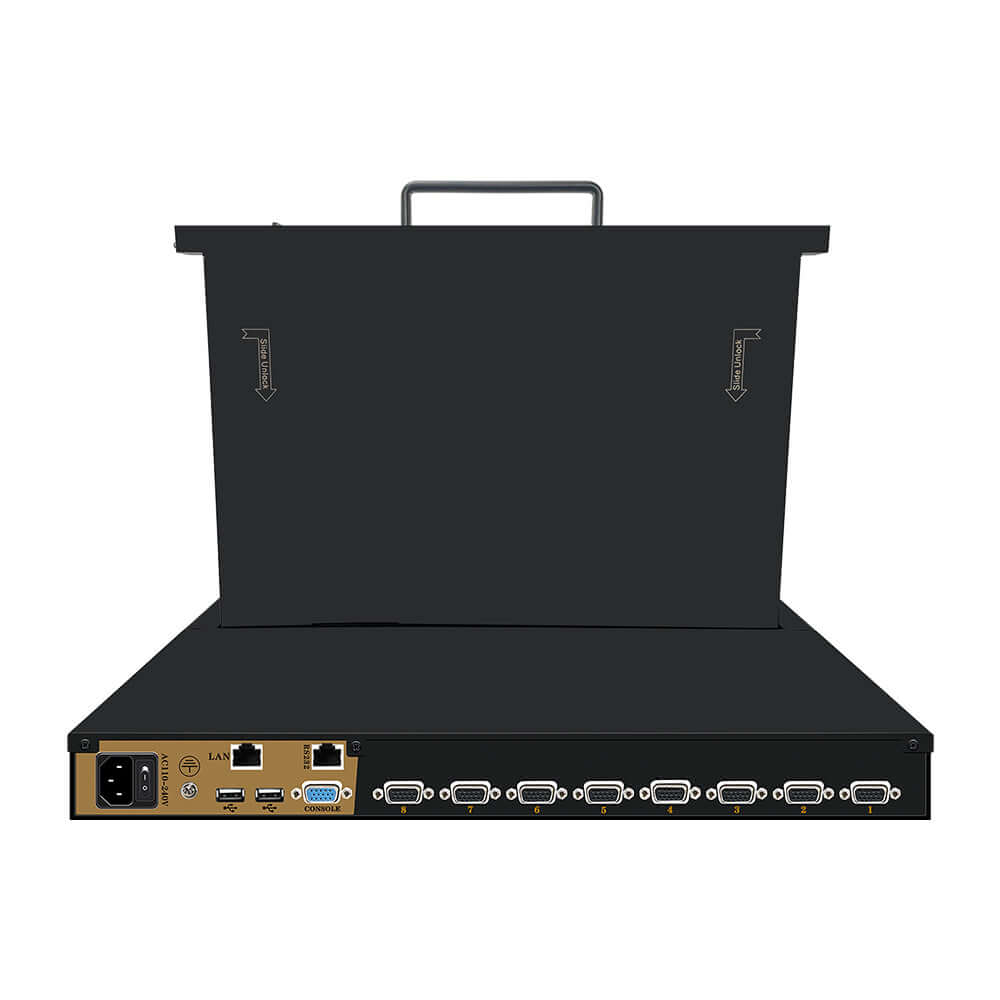

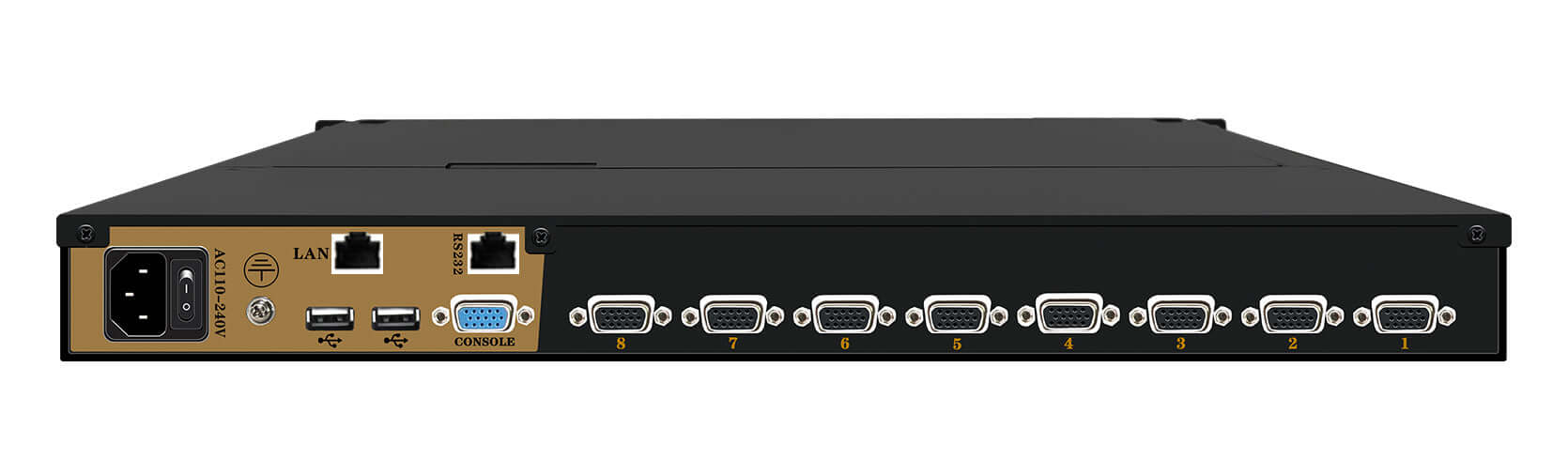

8 Port 17.3” LED VGA RackMount IP KVM, Support Up to 1920*1080 @60Hz (HL-1708DI)

The HL-17 series integrates an LED display, ultra-slim keyboard, and mouse touchpad into a 1U height unit with a drawer-type installation design. Compared to standard keyboards, displays, and mice that often face space constraints, it saves up to 85% of space. Equipped with a high-quality Grade A 17.3” LED display (with no dead pixels), the built-in switch allows direct management of 8 servers; it can support up to 256 servers in total.

Product Features
Hardware Features
Integrates a 17.3-inch LED FHD display and KVM console into a single dual-rail chassis, occupying only 1U rack space.
The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Drawer-type design with front USB ports for connecting external keyboards and mice.
Multiple Management Methods
Easily switch between servers via hotkeys, front panel buttons, OSD menu, remote control, or shortcut keys.
Equipped with an auto-scan mode to continuously monitor user-selected hosts.
Supports hot-swapping — add or remove servers at any time without powering off the device.
Quickly locate and select target servers by naming them or using fuzzy search with SN (Serial Number).
Management Capabilities
Single console manages up to 8 servers directly.
Cascadable with multiple units to support up to 256 servers in total.
Security Features
Supports multi-user account management, access hierarchy, password protection, and server name search.
High-Definition Resolution
17.3-inch LED LCD display with high brightness, sharp clarity, and a maximum resolution of 1920x1080@50-60Hz.
Wide OS Compatibility
Compatible with original servers from architectures such as Inspur, Dahua, Huawei, Sugon, HP, Dell, and Lenovo; supports various X86/ARM industrial computers including Advantech, (EVOC) series, etc.
Compatible with multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.
IP Module Capabilities
Supports remote control and centralized management.
Supports 1 remote video channel with multi-user shared access.
Supports remote firmware upgrades.

Product Model： HL-1708DI
Direct PC Connections 8 units (8USB inputs, 8VGA video inputs); Audio-enabled model optional (8 audio inputs, 1 audio output)
Maximum PC Connections 256 units (Cascade-supported)
Connection Ports： DB15-USB interface (integrated VGA video & USB transmission cable), LAN port, RS232 port
Switching & Scanning Time Scanning time: 5~999 seconds (OSD adjustable); Switching time: 1 second
External Interfaces： Supports 3*external USB ports (for keyboard, mouse, USB flash drive)
LED Status Indicator LED displays current accessed port
Channel Indicators： 8-channel indicators; Green for signal connected, Red for port accessed
Switching Modes： Hotkey switching, Button switching, OSD menu switching, IR remote control switching, Shortcut key switching
LED Display： 17.3-inch LED; Resolution: 1920*1080@60Hz; Brightness: 250nits; Contrast ratio: 1000:1
LED Display Control： Multi-language OSD for optimal display adjustment
Keyboard/Mouse： 100-key industrial notebook keyboard (83 standard keys + 17 independent numeric keys); Touchpad
Power Input： AC 110V-240V (DC input optional); 50Hz-60Hz; Power consumption: 36W
Chassis Material： High-strength corrosion-resistant steel plate / Aluminum alloy
Color Insulated： black baking finish (Custom color available)
Compatible Rack： 1U rack (600-1200mm)

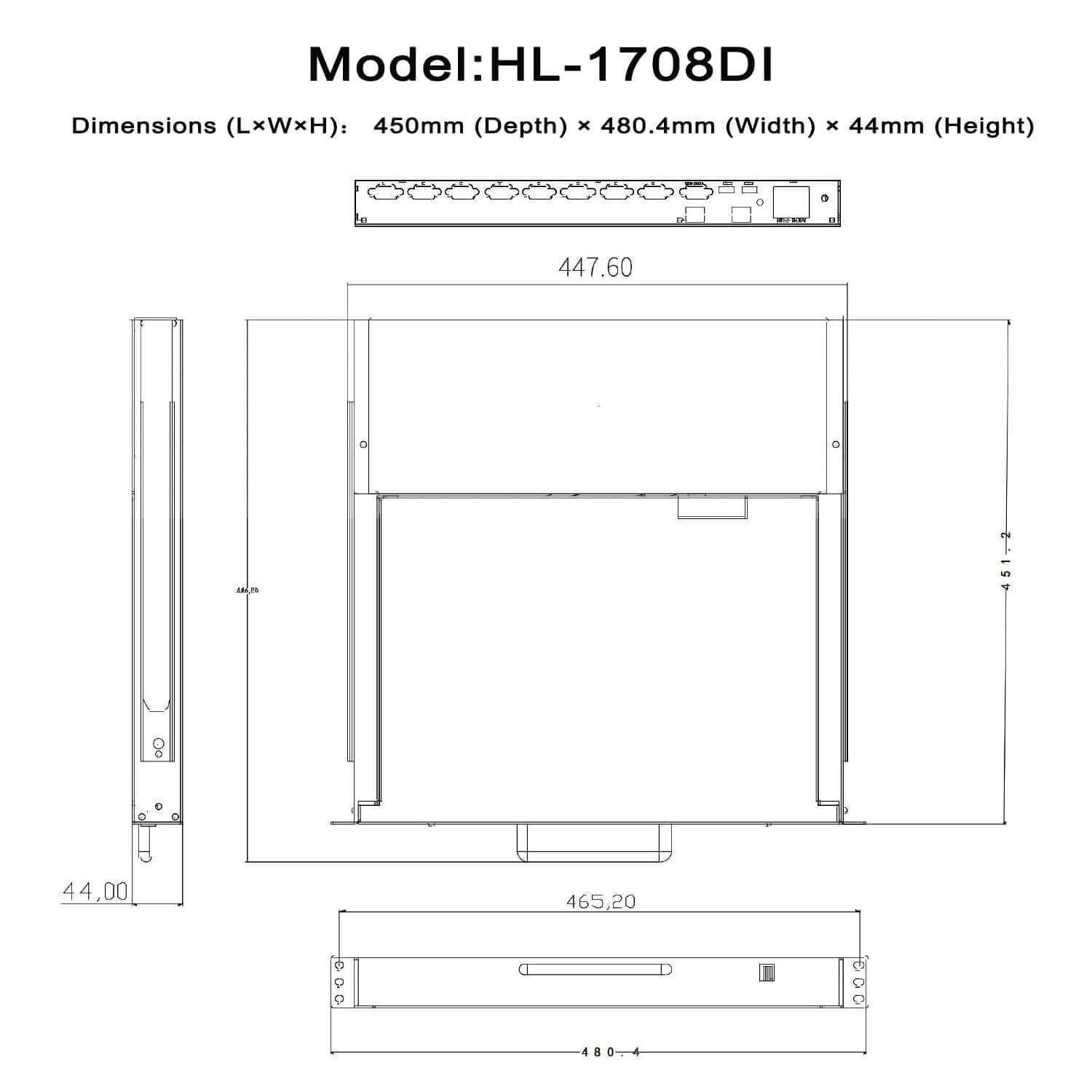

Dimensions (L×W×H)： 450mm (Depth) × 480.4mm (Width) × 44mm (Height)
Weight： 16.5KG
Storage Temperature： -30℃~70℃
Operating Temperature： -10℃~60℃
Humidity： 0%~80% RH (non-condensing)
Safety Certifications： 3C, FCC, CE, ROHS, ISO9001

What's in the box:
1* KVM Switch
8* VGA cable
1* Remoter
1* Power adapter
2* mount rack
