17.3inch VGA LED RackMount KVM, Support up to 1920*1080 @60Hz (HL-1701B)

Product Features

The HL-17 Series integrates an LED display, ultra-slim keyboard, and mouse touchpad into a 1U height unit, adopting a drawer-type installation. Compared with standard keyboards, displays, and mice that often face space constraints, it saves up to 85% of rack space. Equipped with a high-quality Grade A 17.3” LED display (with no dead pixels), the built-in switch allows direct management of 1 server (maximum management capacity: 1 server).
Hardware Characteristics

    Integrates a 17.3-inch LED FHD display and KVM console into a single dual-slide chassis, occupying only 1U rack space.
    The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
    Drawer-type design with front-panel USB ports for connecting external keyboards and mice.

Multiple Management Methods

    Offers an auto-scan mode to continuously monitor user-selected hosts.
    Supports hot-swapping — add or remove servers at any time without powering off the system.
    Quickly locate and select target servers by entering server names or fuzzy-searching serial numbers (SN).

Control Functions

    One console can manage 1 server (maximum management capacity: 1 computer).

Security Features

    Supports multi-user account management, hierarchical access control, password protection, and server name search.

High-Definition Resolution

    17.3-inch LED LCD display with high brightness, sharp image quality, and a maximum resolution of 1920x1080@50-60Hz.

Dual-Slide Structure

    The LED display, keyboard, and touchpad are retractable to save valuable rack space. When not in use, the keyboard/touchpad can be pushed back into the rack, leaving only the slim LED display for convenient server status monitoring.

Wide OS Compatibility

    Compatible with original servers from major brands such as Inspur, Dahua, Huawei, Sugon, HP, DELL, and Lenovo; as well as various X86 and ARM industrial computers including Advantech and (Yanxiang) series.
    Supports multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.

Specification Item Details
Product Model: HL-1701D

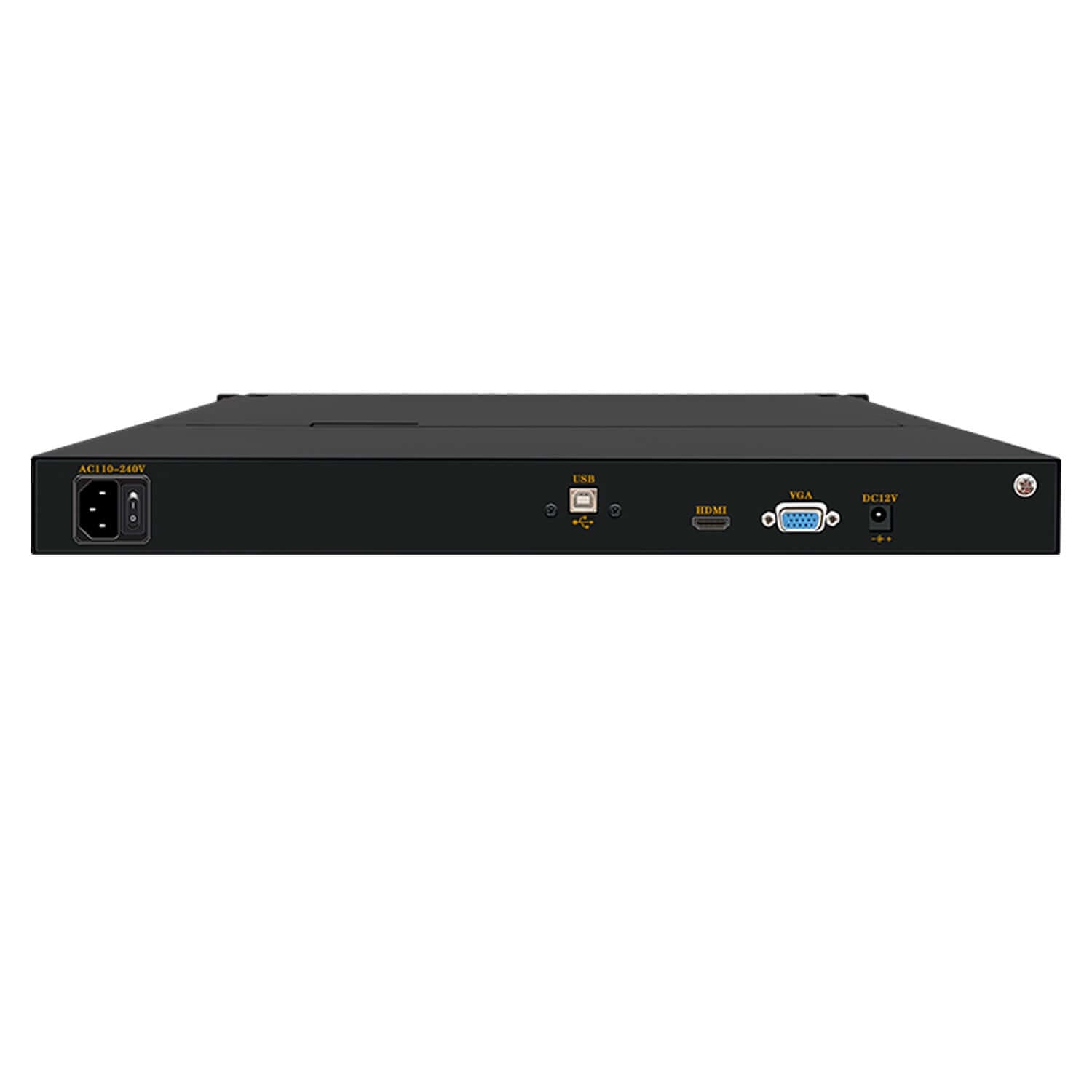

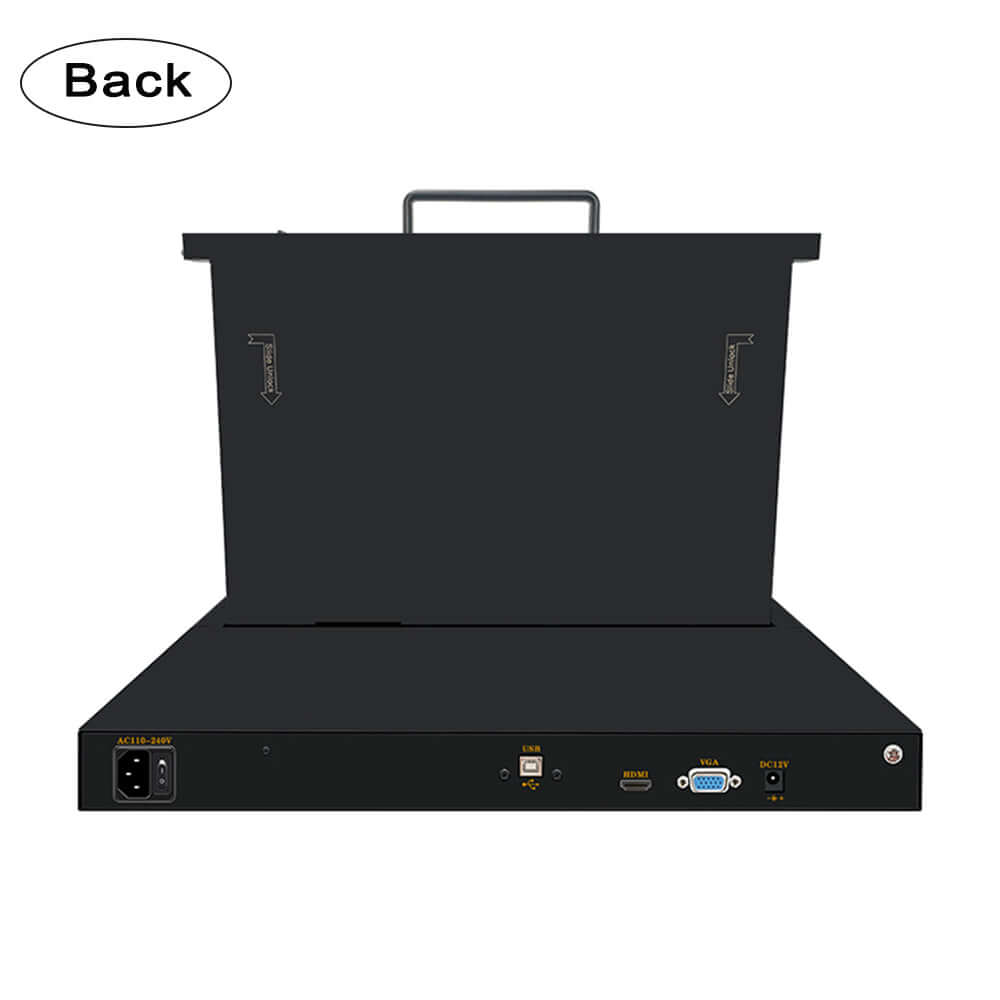

Direct Computer Connection 1 computer (1USB Input, 1VGA Video Input, 1*HDMI Input)
Maximum Computer: Connection 1 computer
Connection Ports: DB15-USB Interface (Integrated Cable for VGA Video Signal & USB Transmission), HDMI Interface
Switch Scan Time: 5~999 seconds (OSD Adjustable), Switching Time: 1 second
External Interfaces: Supports 2*External USB Ports (for Keyboard, Mouse, USB Flash Drive)
LED Status Light: None
Channel Indicator Light: None
Switching Method: None
LED Display: 17.3-inch LED, Resolution: 1920×1080@60Hz, Brightness: 250nits, Contrast Ratio: 1000:1
LED Display Control: Multi-language OSD for Optimal Display Adjustment
Keyboard/Mouse: 100-Key Industrial Notebook Keyboard (83 Standard Keys + 17 Independent Numeric Keys), Touchpad
Voltage Input: AC 110V-240V (Optional DC Input), 50Hz-60Hz, Power: 36W
Cabinet Material: High-Strength Corrosion-Resistant Steel Plate / Aluminum Alloy
Color:Insulated Black Paint (Custom Color Available)

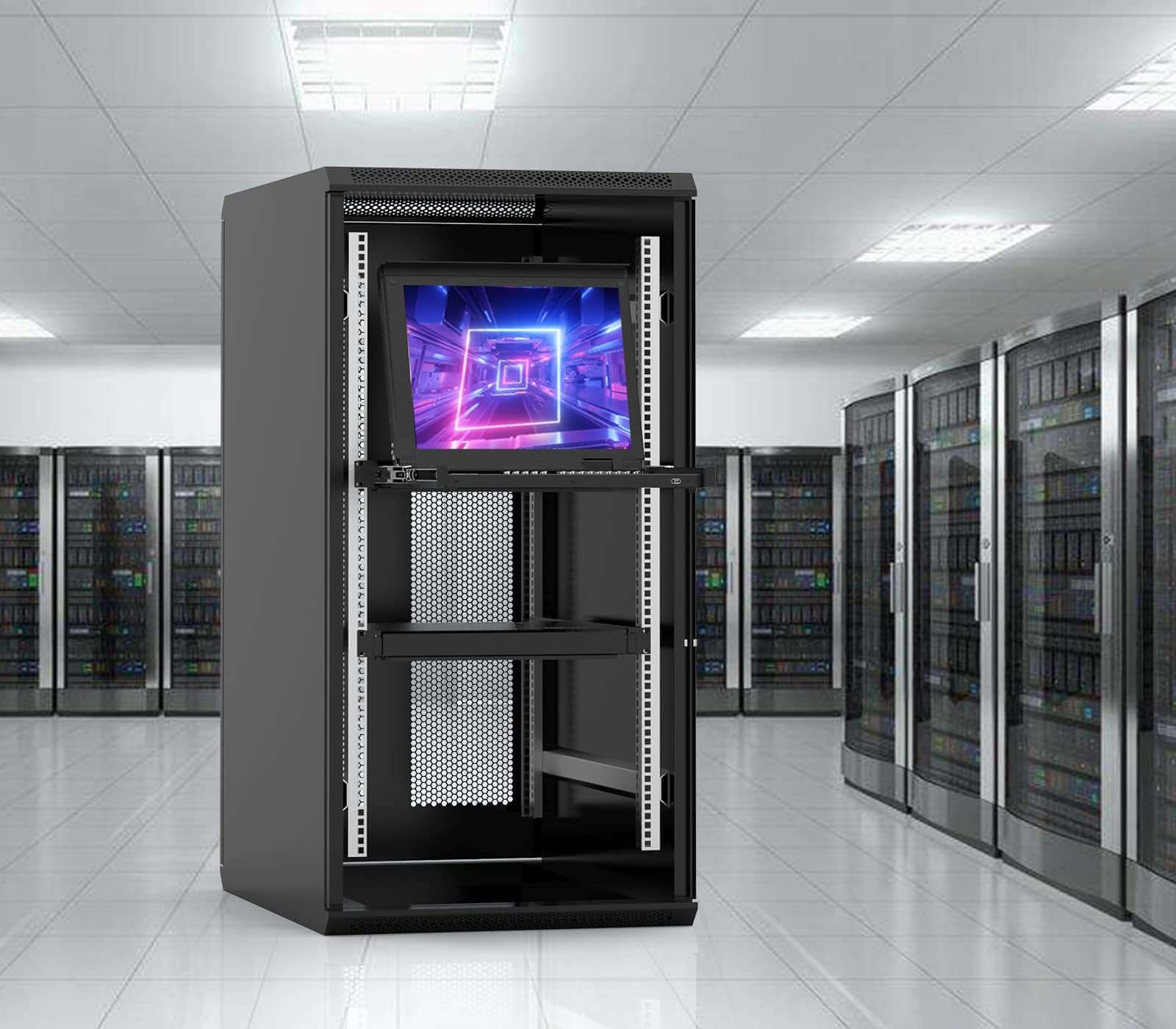

Applicable Cabinet: 1U Cabinet, 600-1200MM

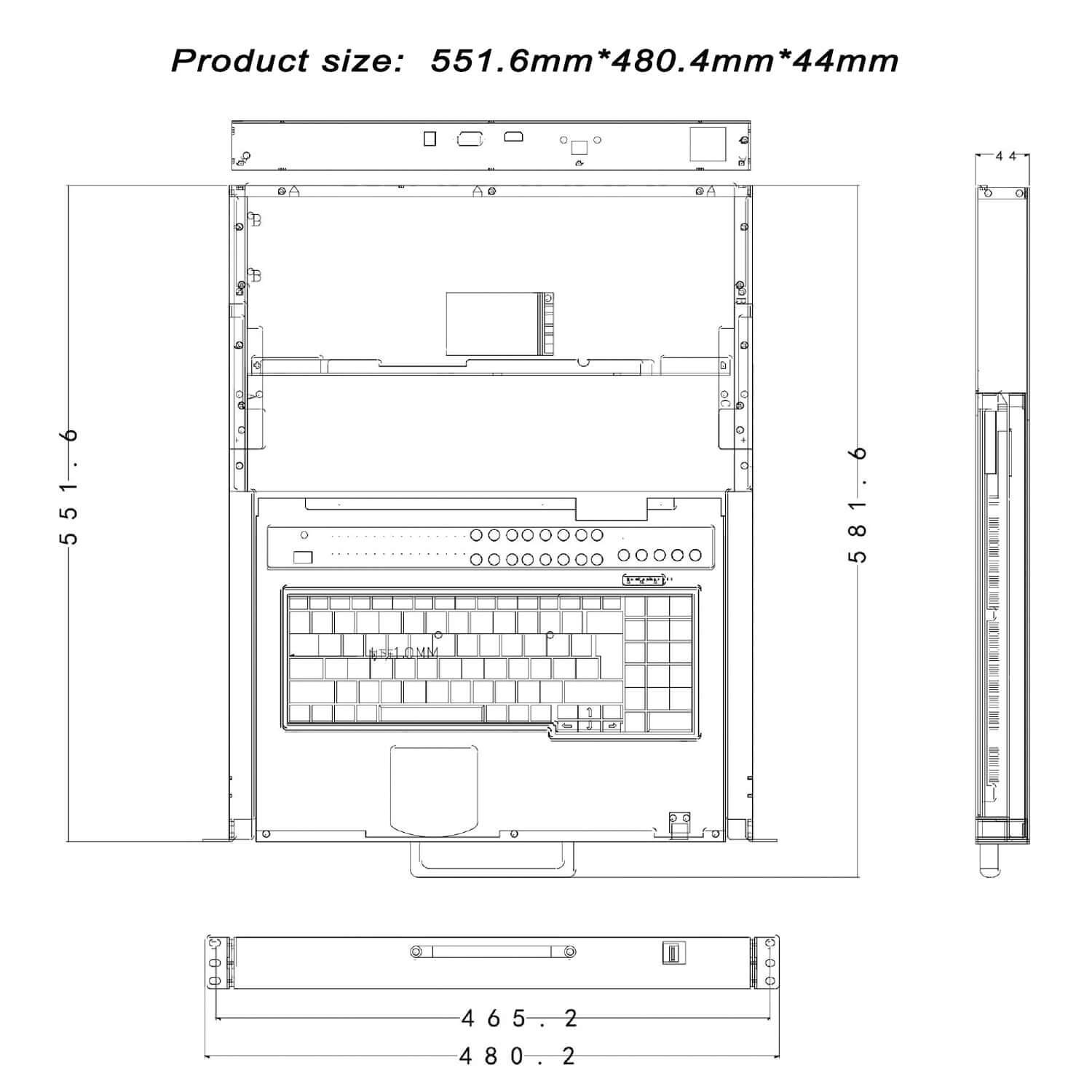

Dimensions (D×W×H): 551.6mm (Depth) × 480.4mm (Width) × 44mm (Height)
Weight: 15.0KG
Storage Temperature: -30℃~70℃
Operating Temperatur: -10℃~60℃
Humidity: 0%~80% RH, Non-Condensing
Safety Certifications: 3C, FCC, CE, ROHS, ISO9001

What's in the box:

1* KVM Switch

1* VGA cable

1*HDMI cable

1* Power adapter

2* mount rack

1* User manual.
