CKL 8x2 Multi-View HDMI Split KVM Switch Dual Monitor Supports Single-Screen, Quad-Screen, Eight-Screen Modes, Split and PIP Function, Sync, Through-Screen, EDID, 4K30Hz, Hotkey Switching 82MVKVM

• This 8-in-2-out multi-view HDMI KVM switch enables up to 8 computers and 2 monitors to share one set of USB keyboard, mouse, audio output, and two USB 3.0 peripheral interfaces. It features EDID emulation and supports versatile display modes, including single-screen, quad-screen, and eight-screen layouts. Built-in functions cover screen splitting, picture-in-picture, synchronous control, and through-screen operation for efficient multi-device management.

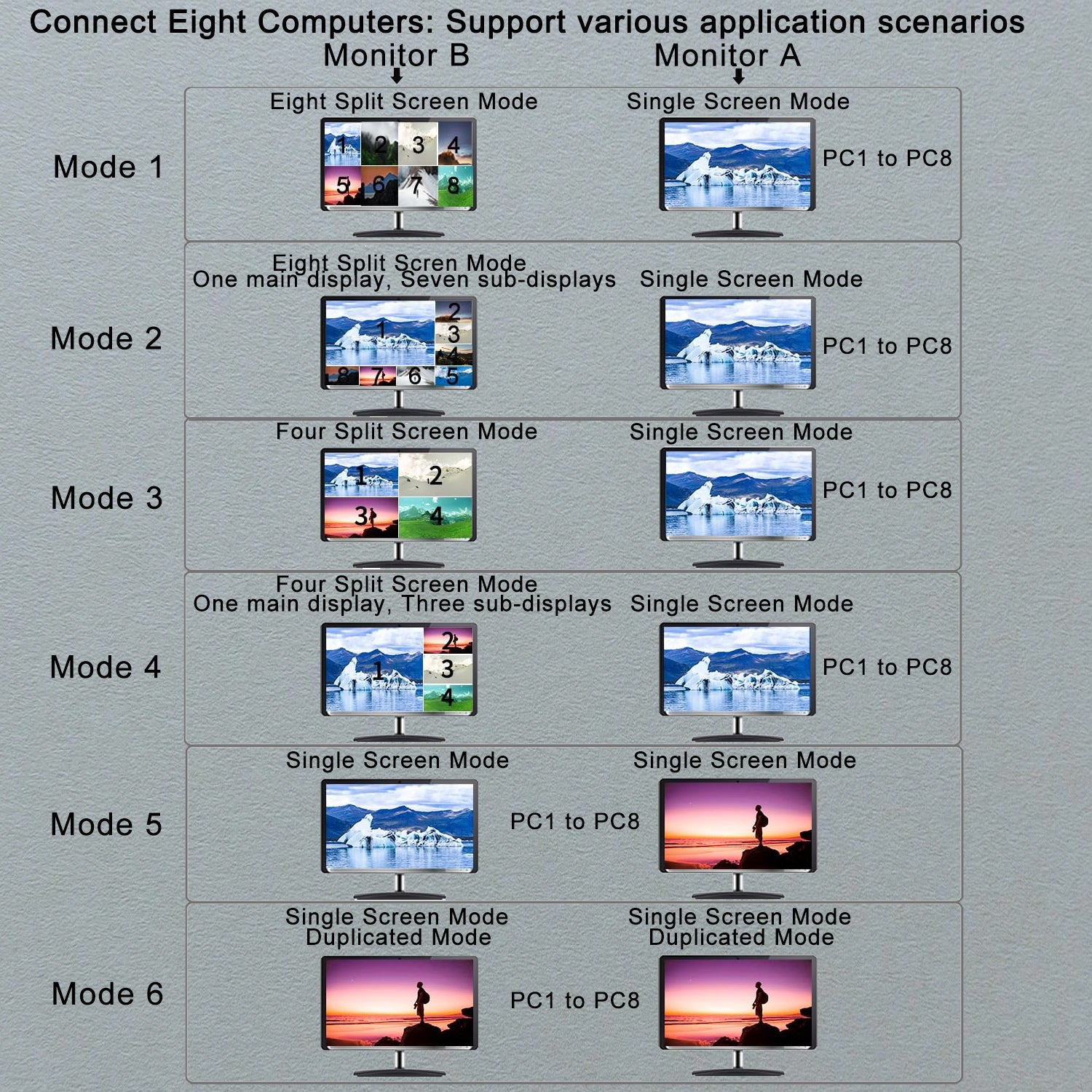

• When connecting 8 PCs with a single video output each, the device provides six flexible display combinations. One monitor can serve as an adjustable main display for any connected computer, while the second monitor supports six different layouts: equally divided 8-split screens (fixed layout), customizable 8-split mode with one large primary window and seven stacked sub-windows (interchangeable positions), 4-computer picture-in-picture mode, 4-split display, single full-screen view for any PC, and mirror screen duplication.

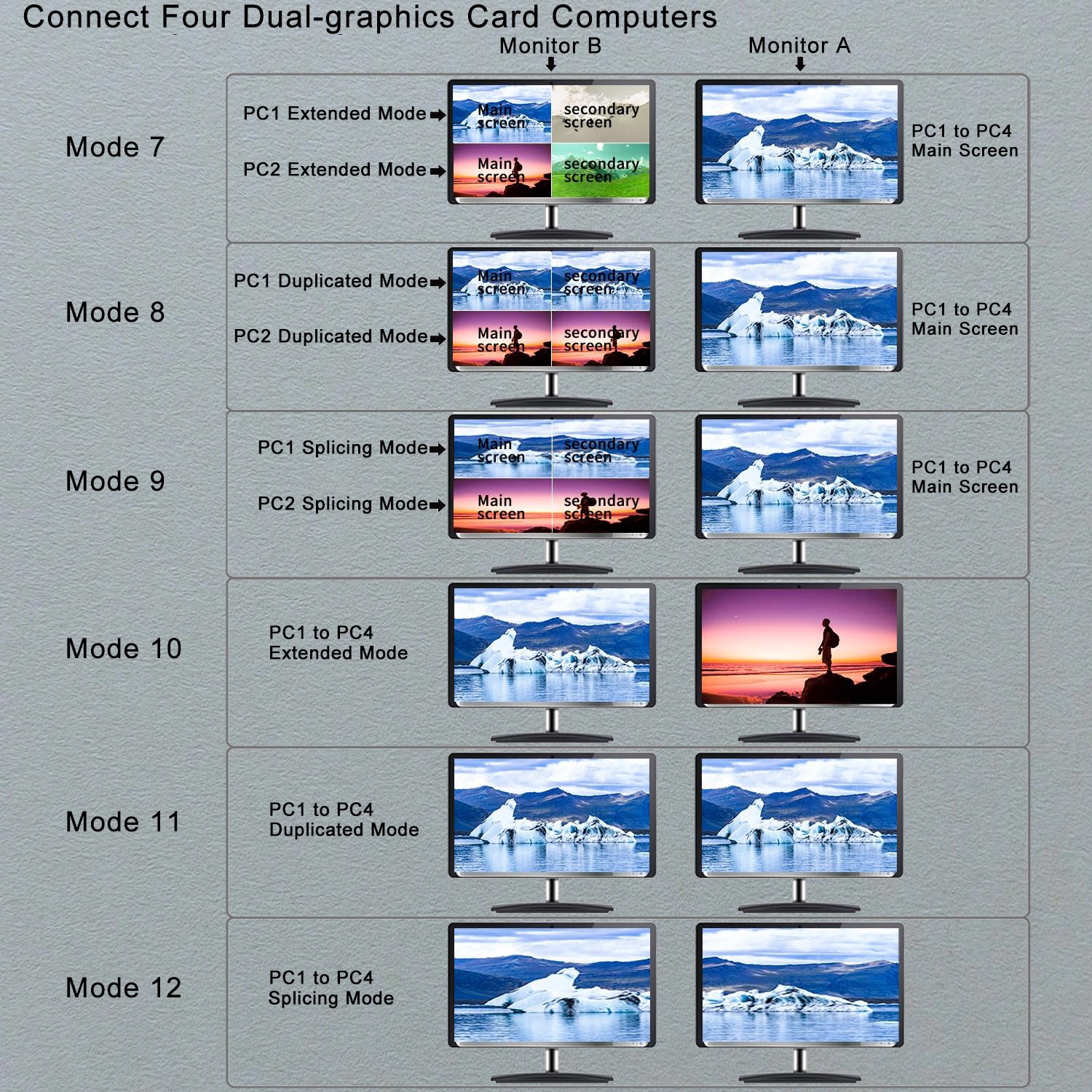

• With 4 dual-graphics-card PCs connected, six advanced display scenarios are available. Extended Mode splits one monitor into four sections, displaying the primary and secondary screens of PC1 on the upper part and the screen of PC2 on the lower part, while the second monitor shows the main screen for any of PC1 to PC4. Duplicated Mode follows a similar layout, with the upper section mirroring PC1’s screen and the lower section displaying PC2. Slicing Mode delivers an integrated combined view for each PC. Users can freely switch between Extended, Duplicated, and Slicing modes for a single PC to maximize dual-monitor flexibility.
• This KVM switch supports fixed output resolutions: 3840×2160@30Hz (4K) and 1080P@60Hz. If the connected devices adopt other resolution parameters, please manually adjust the input and output resolution to 4K@30Hz or 1080P@60Hz to ensure normal display performance.

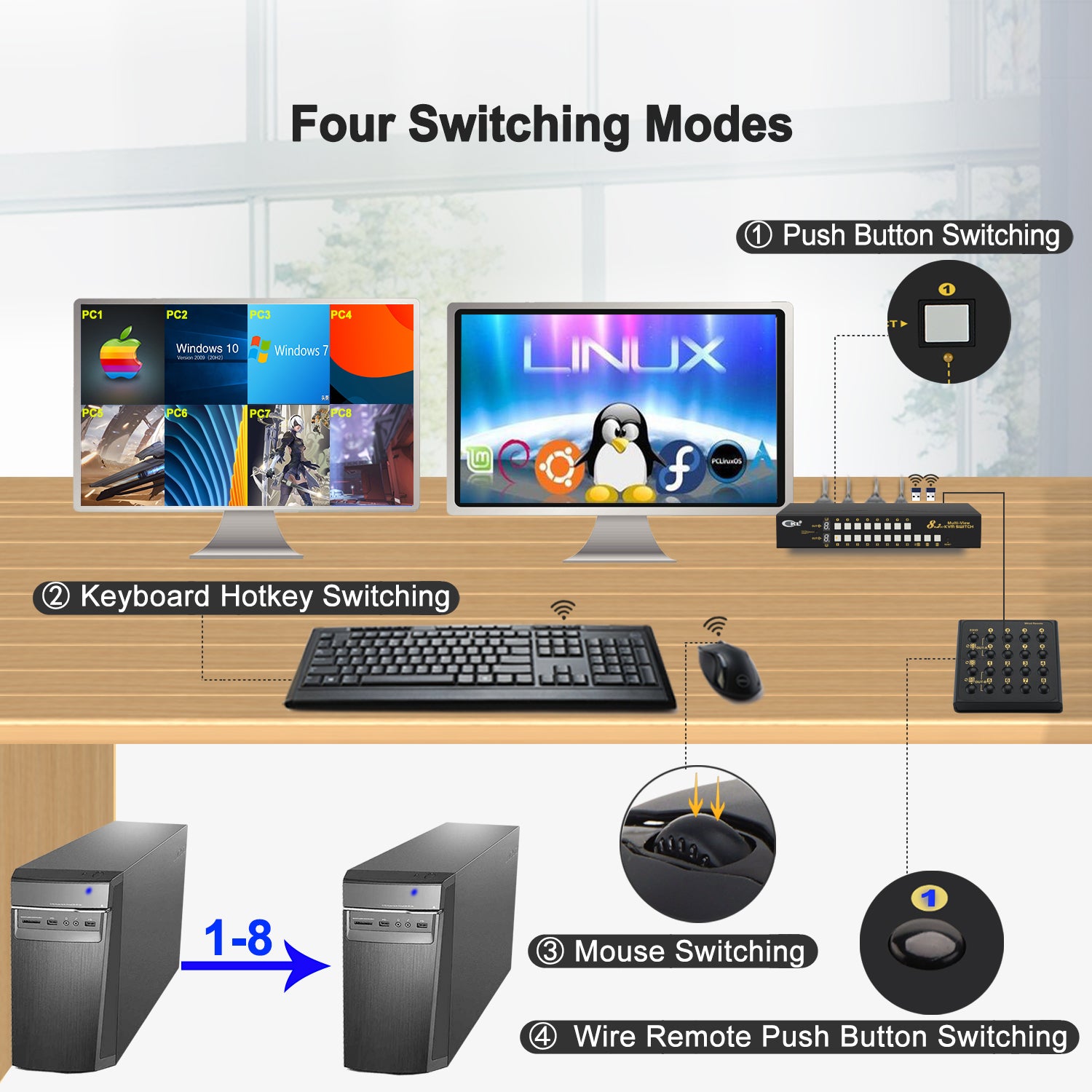

• The unit supports synchronous operation mode for simultaneous control of multiple identically configured computers, as well as through-screen operation mode (hotkey activation required). Four convenient switching methods are integrated: keyboard hotkey switching, mouse switching, wired remote button switching, and physical manual button switching, ensuring effortless and efficient device control.

CKL 8 Port USB 3.0 Multi-view HDMI KVM Switch Dual Monitor 4K@60Hz

Multi-viewer KVM Switches with Powerful Display Features:

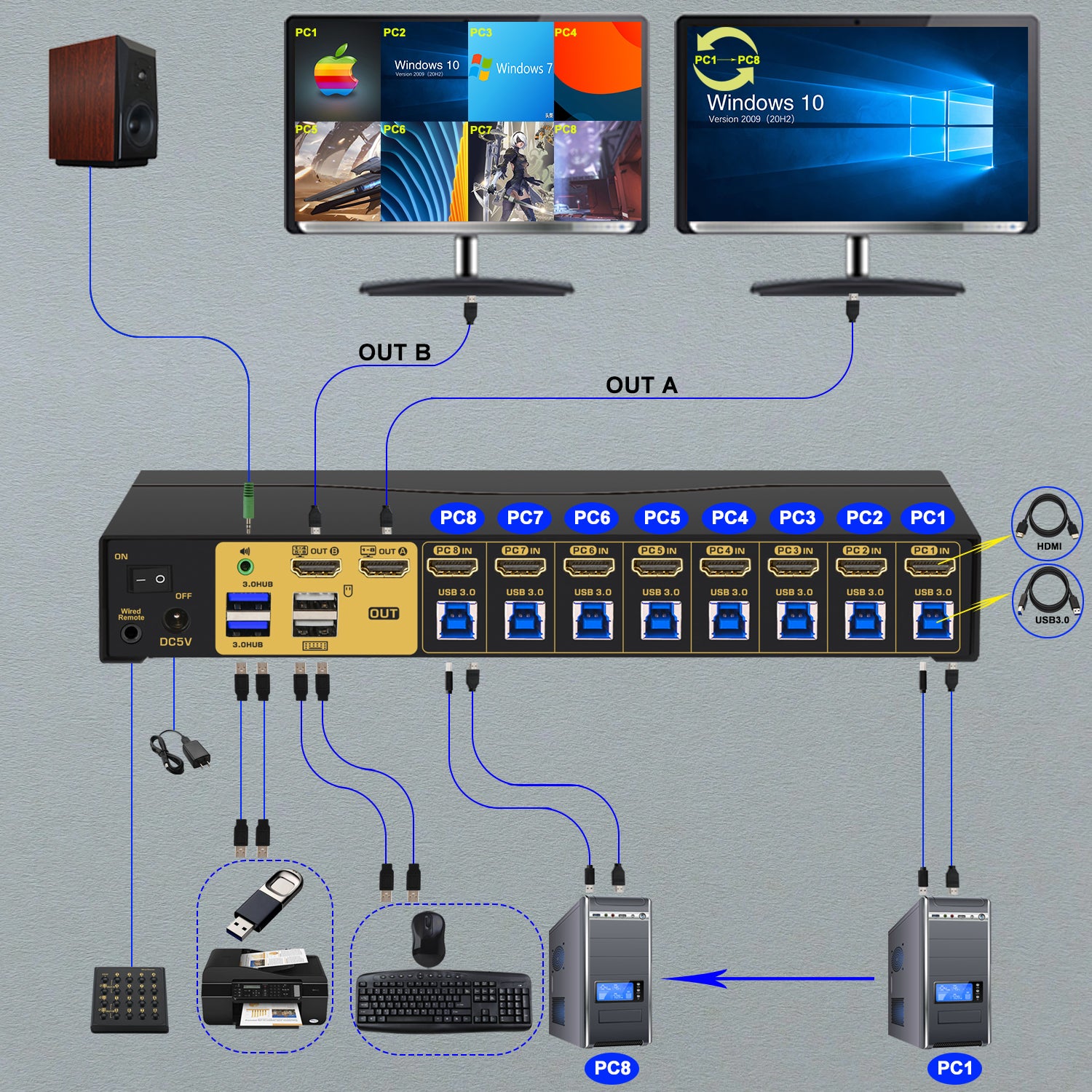

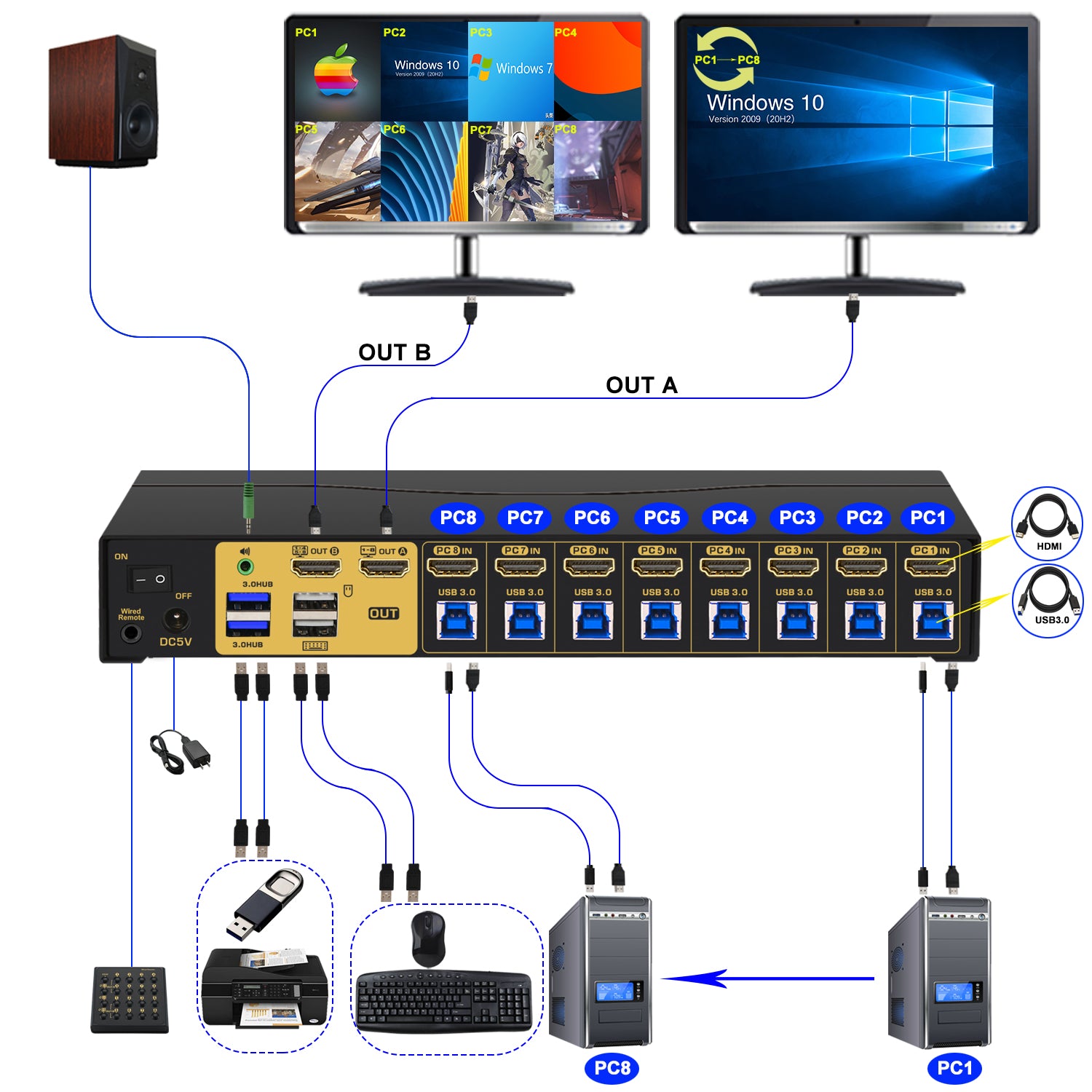

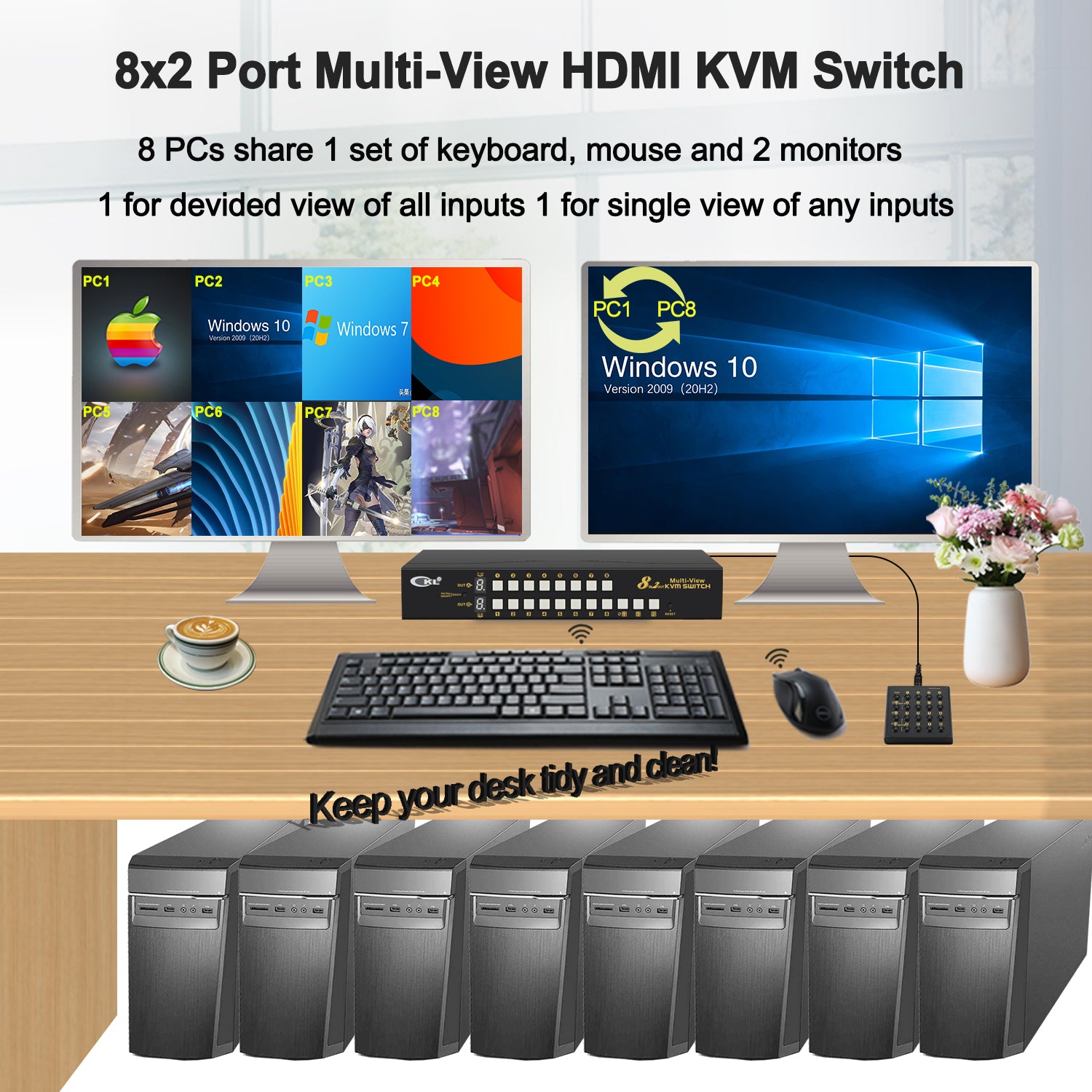

1. Connect 8 computers to share dual monitors and one set of keyboard and mouse as well as USB peripherals and audio device;

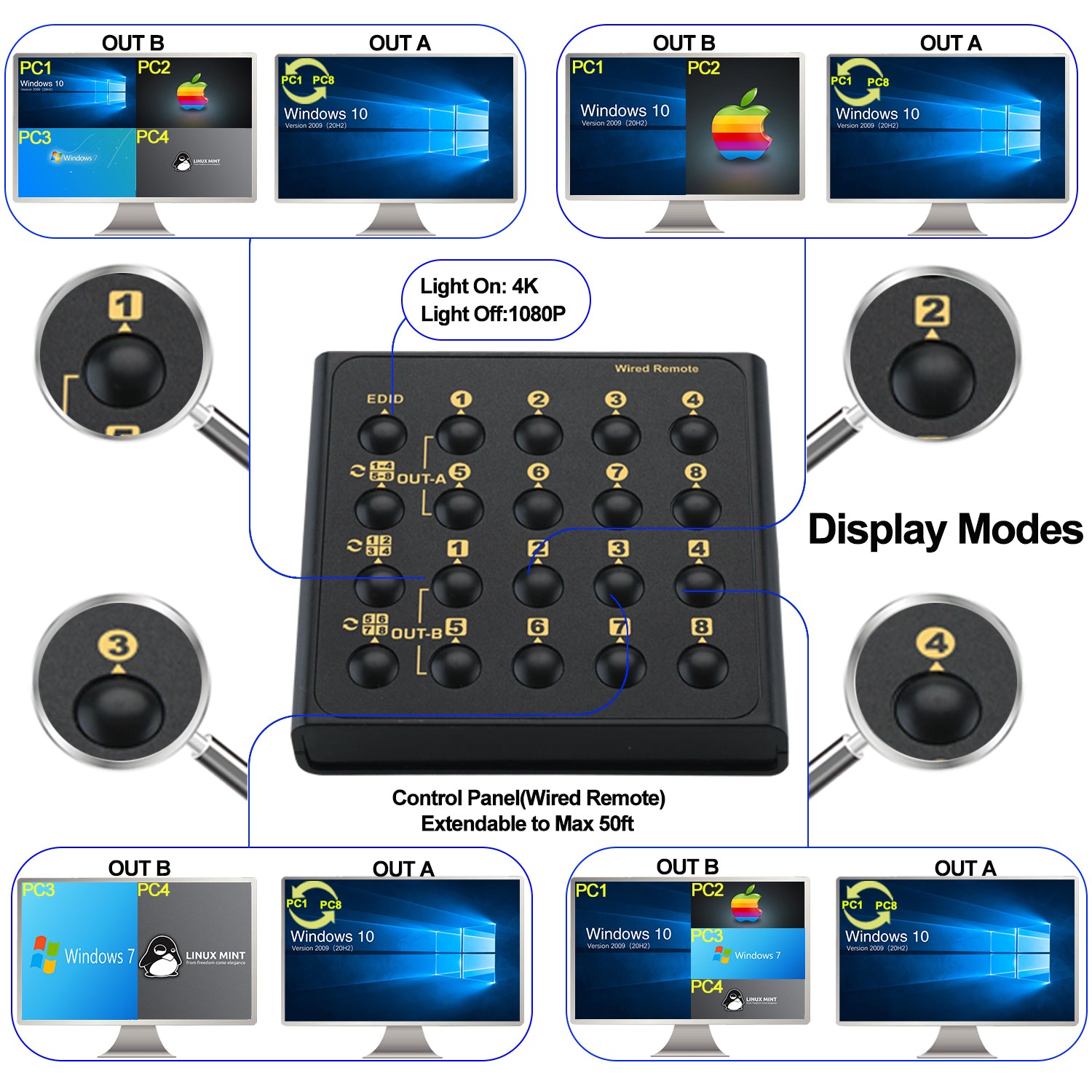

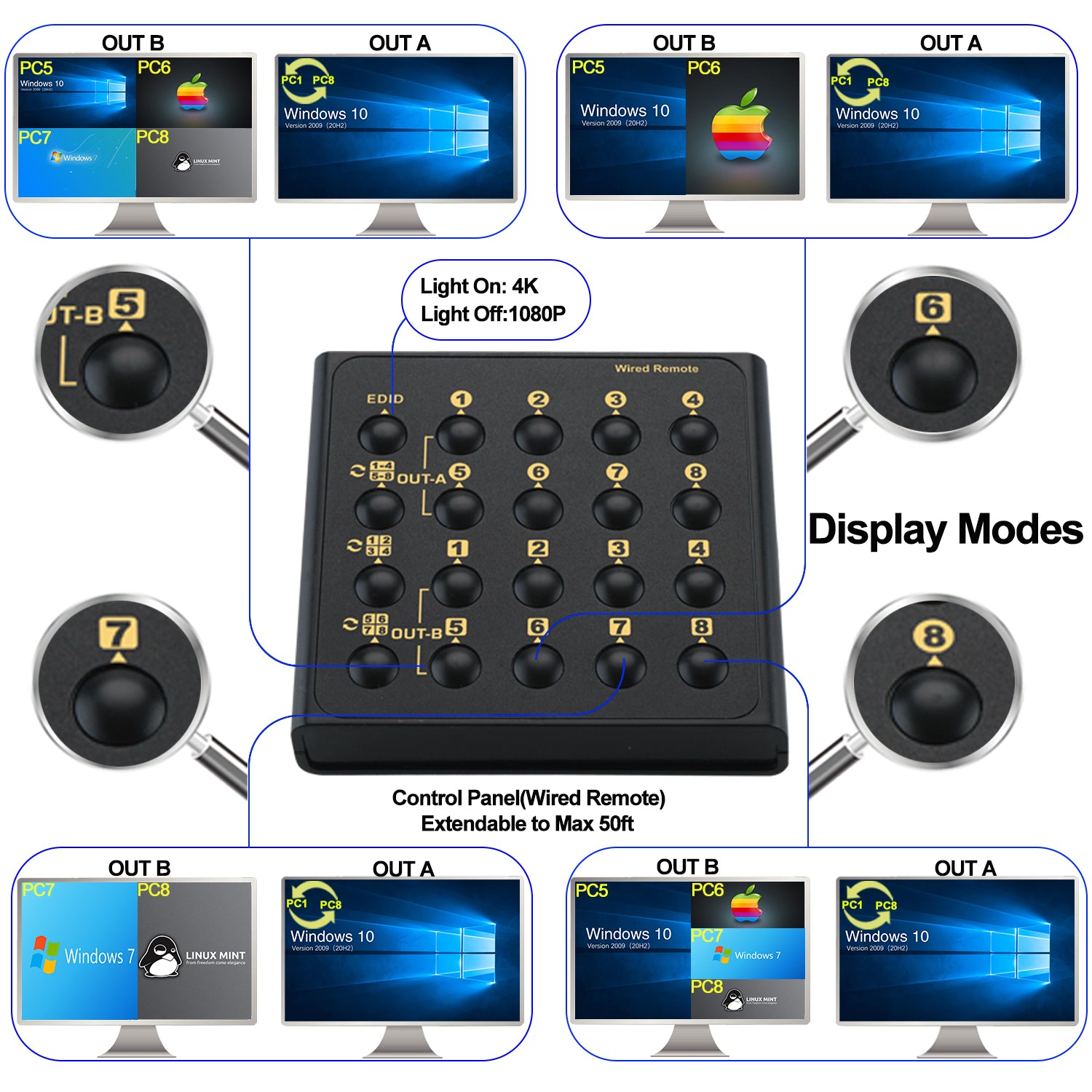

2. Dual monitor outputs with mulitple display modes: Out A displays signle view of PC 1 to PC 8, Out B displays multi view of 8 PCs or quad view of PC 1 to PC4 or PC 4+ PC 8, or single view of PC 1 to PC 8;
3. Supports max. resolution up to 4K@60Hz. If 2 monitors supports different resolution, the resolution outputs are subject to the lower one.
4. With 2 integrated USB 3.0 HUB ports to share more peripheras like pinter, headphone, webcam, hard disk etc. and another 2 USB 2.0 HUB ports to share keyboard and mouse;
5. Support decoded HDMI digital audio through the green 3.5mm jack. Need to select HDMI audio as default in the sound settings. If HDMI audio is not available, the audio will not work. Workaround is to add a USB to audio adapter to one of the USB 3.0 HUB ports to run USB audio;

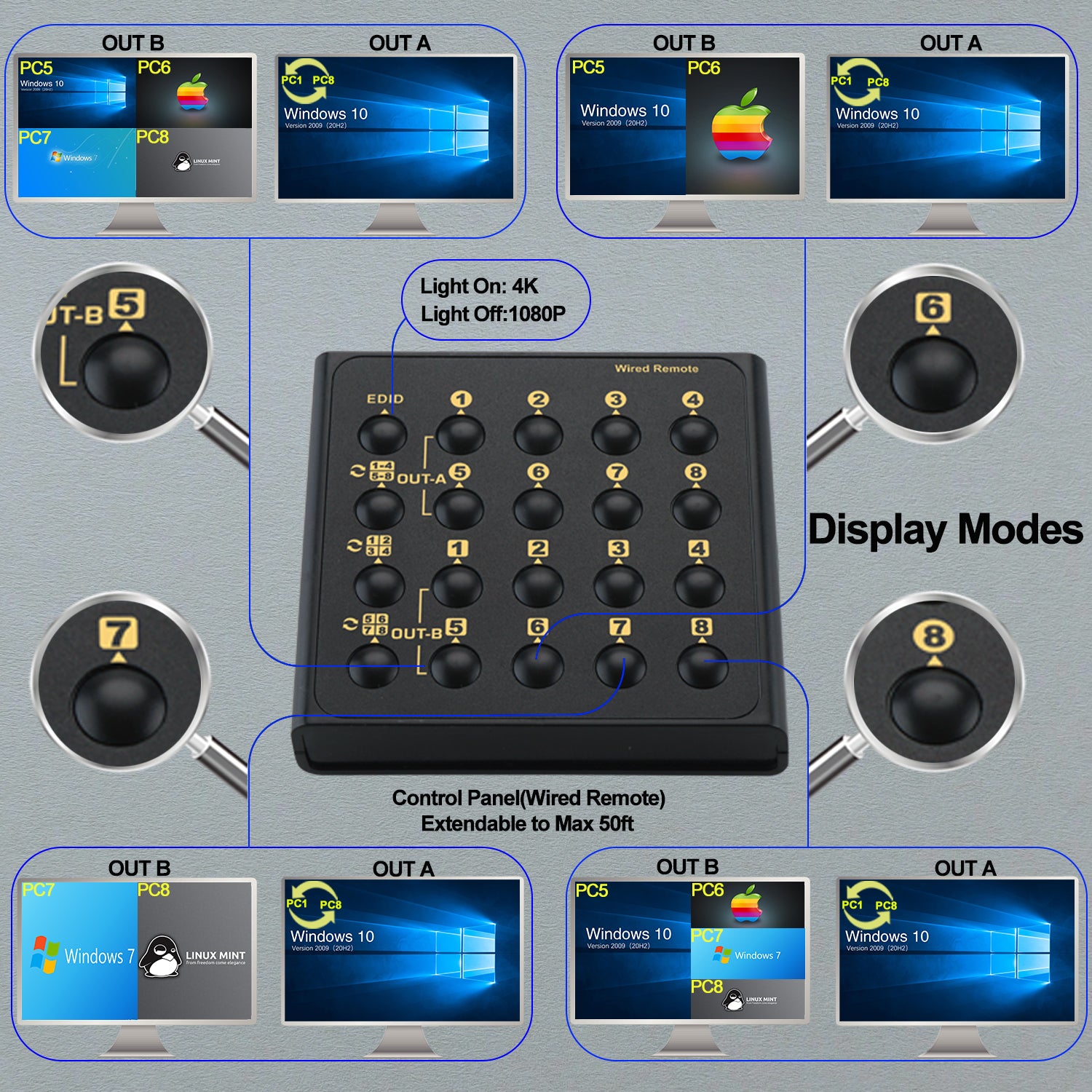

6. Effortless one button switch via wired remote, which can be extended to 50 ft (15meters) using outsourced longer aux cable; Also support hotkey switching using keyboard or mouse;
7. Include 8 pcs HDMI 2.0 cables, 8 pcs USB 3.0 cables and a power adapter. Works right out of the box;

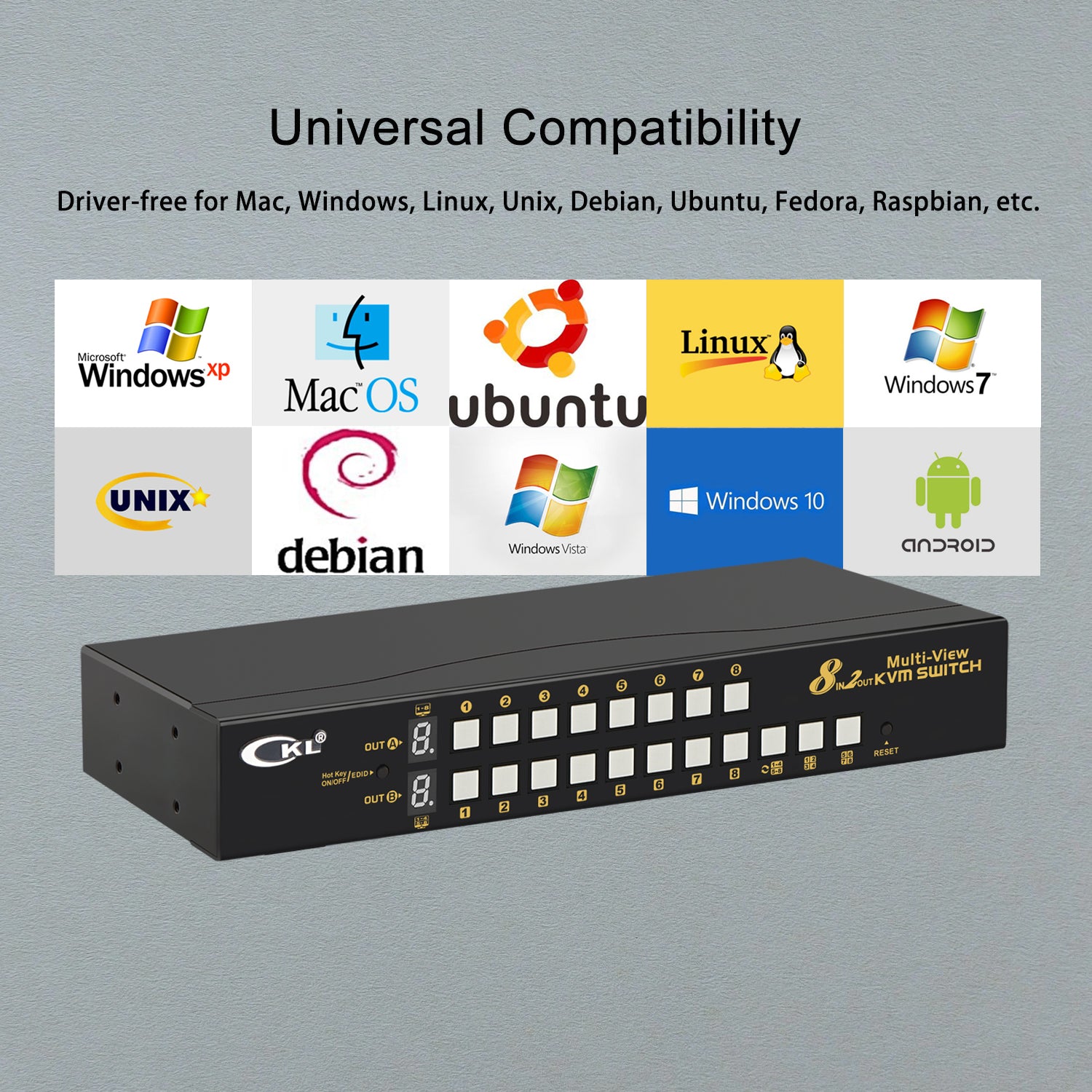

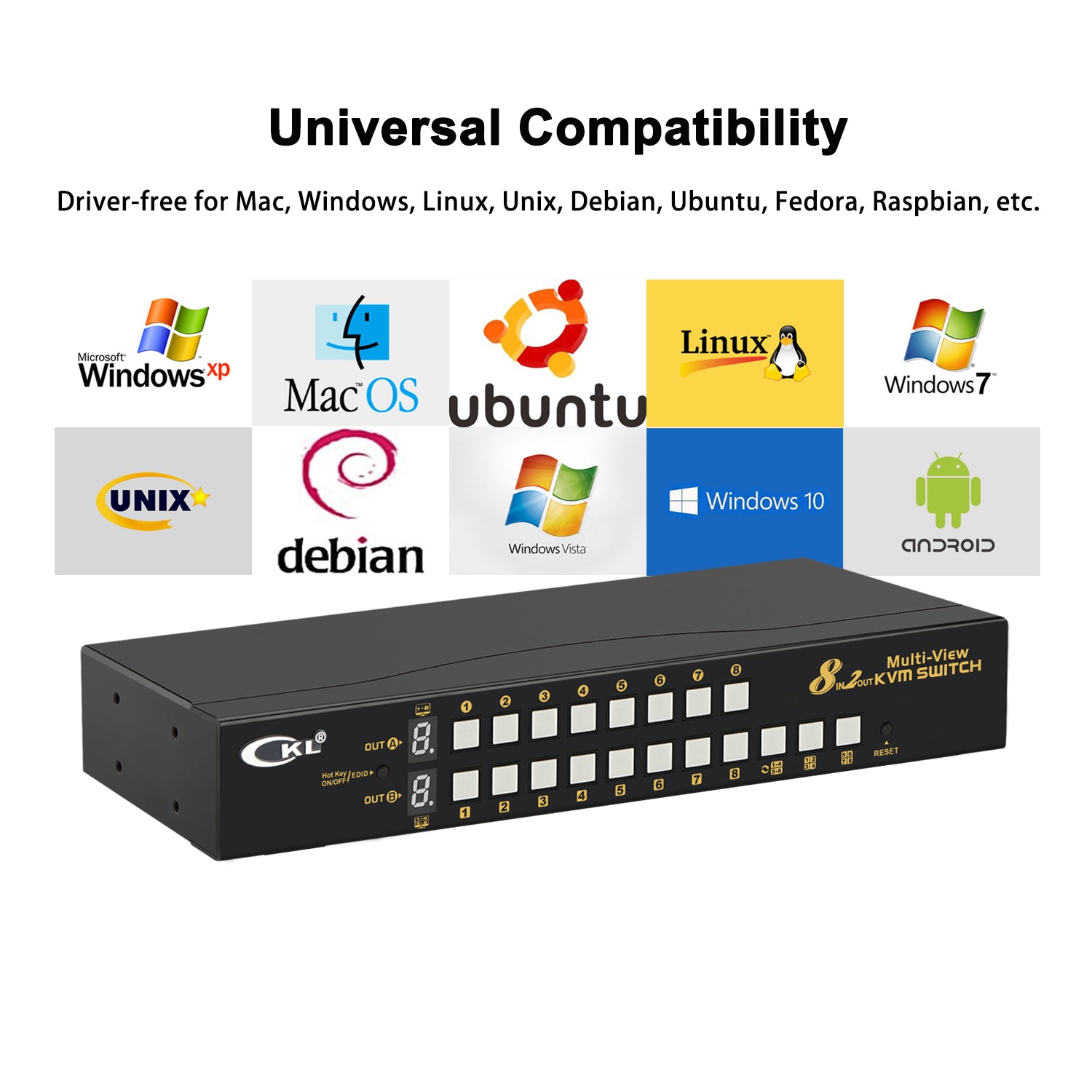

8. Cross supports major operation systems including Windows, Linux, Unix, Mac and more.

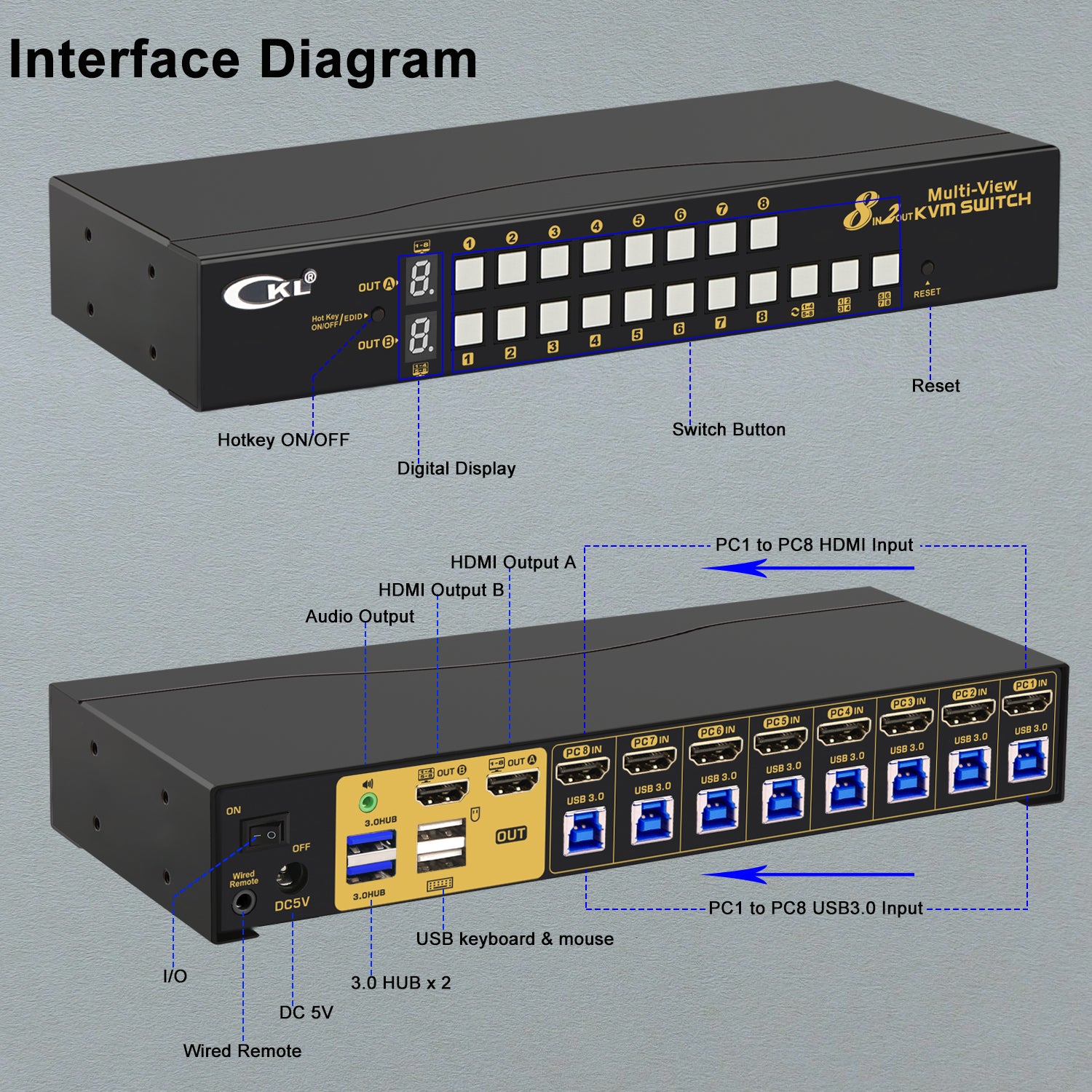

Input:

• 8 HDMI inpputs
• 8 USB 3.0 inputs
• DC 5V power (Do not use other power adapter with higher voltage)

Output:

• 2 HDMI output
• 2 USB 3.0
• 2 USB 2.0
• 3.5mm audio (decoded HDMI digital audio)
• Wired Remote

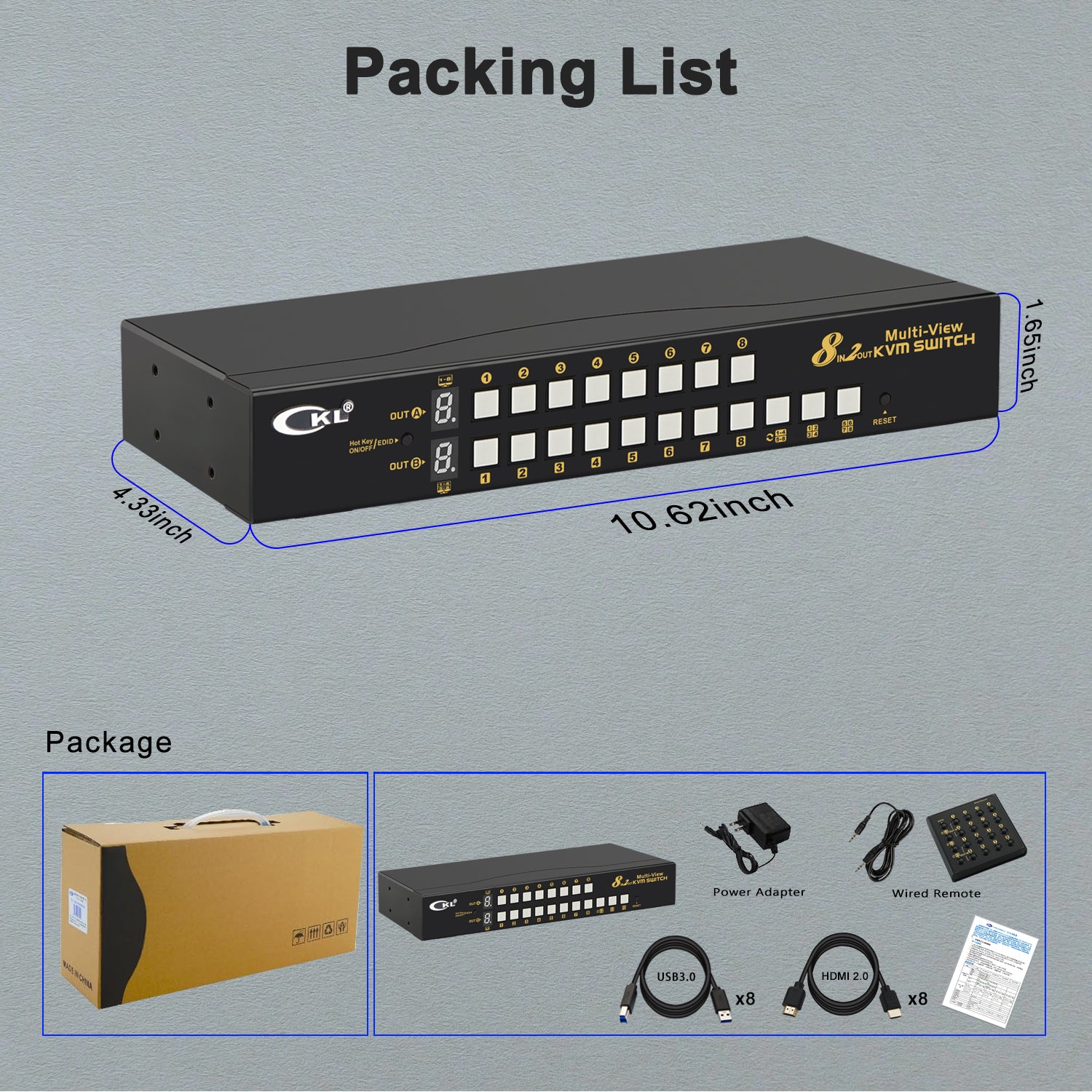

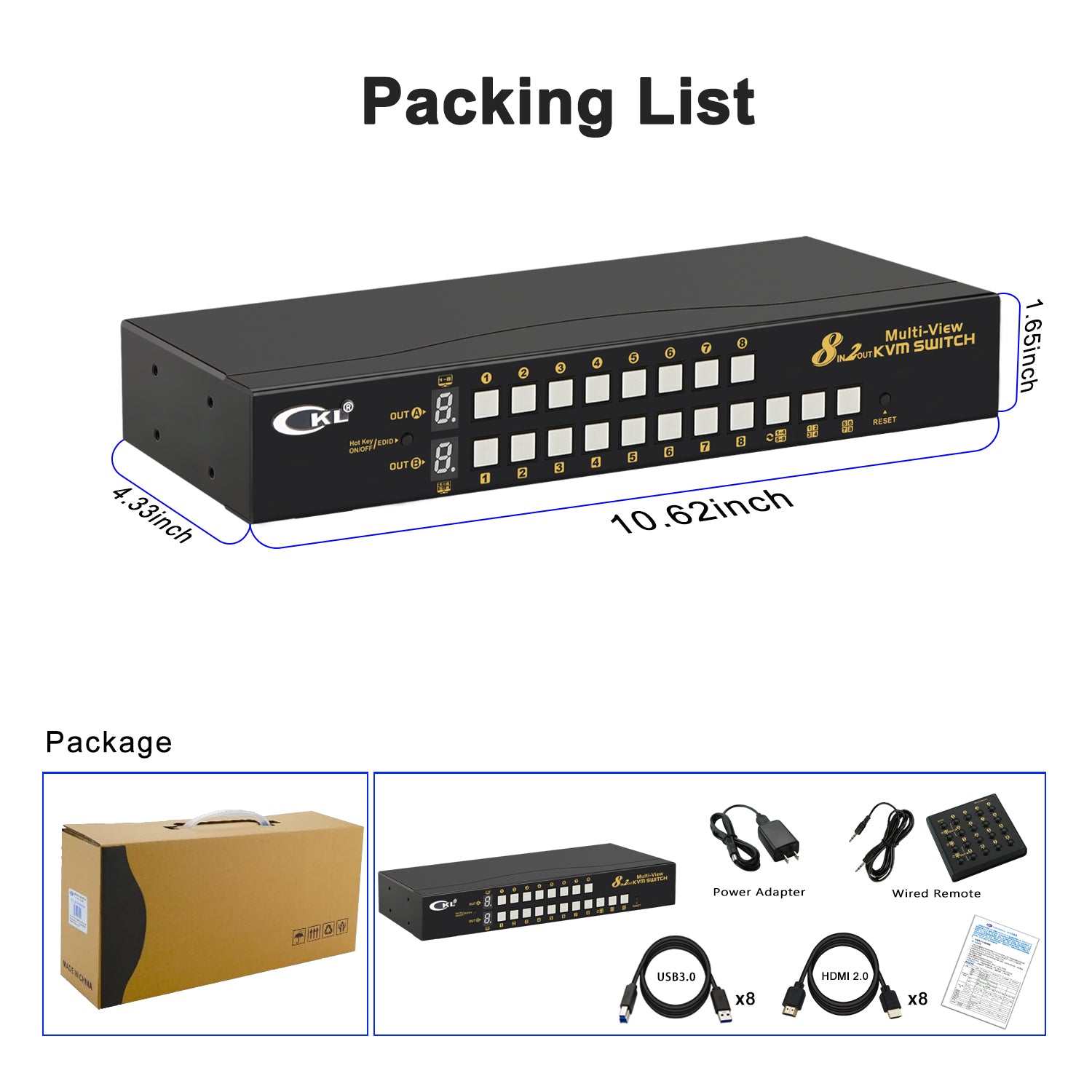

Box Contents：

1. KVM Switch x 1
2. HDMI 2.0 cables x 8
3. USB 3.0 cablesx 8
4. Remoter with wire x 1
5. Power adapter x 1
6. User manual in English x 1
