CKL USB 3.0 Multi-View HDMI KVM Switch 4K@30Hz for 4 Computers 2 Monitors, Supports Quad + Single View, Matrix, PIP and Versatile Display Options, CKL-42MVKVM

ํ• ์ธ ๊ฐ€๊ฒฉ$299.00
  • 4 PORT MULTI-VIEW KVM SWITCH 2 MONITORS: The CKL 4 Port Multi-view KVM Switch enables seamless control of up to 4 computers with just one set of keyboard and mouse. Switch between devices effortlessly for a more efficient and organized workspace.
  • KVM SWITCH HDMI 4K : Experience stunning 4K@30hz resolution on two monitors simultaneously, downward compatible with 1080P. allowing users to enjoy high-quality visuals and increased productivity with a multi-view setup or extended displays.
  • KVM SWITCH 2 MONITORs WITH VERSATILE DISPLAY COMBINATIONS: Tailor your workstation to your needs. With support for various display combinations, including multi-view and extended displays, the CKL-42MVKVM ensures flexibility to match different tasks and preferences. Please refer to product descriptions for more surprise.
  • LONG RANGE CONVENIENT ONE-TOUCH BUTTON SWITCH: This KVM switch allows you to switch between 2-4 computers and different display modes easily using push button on the wired remote with 5.9 ft cable included, which can be extended up to 65 ft (15 meters) using standard 3.5mm audio cable if needed.
  • HIGH-SPEED USB 3.0 CONNECTIVITY: Benefit from the power of USB 3.0 for fast and reliable connections. The switch supports USB 3.0 peripherals, offering high-speed data transfer for devices like keyboards, mice, and other accessories.
  • AUDIO INTERGRATION: This KVM switch comes equipped with audio output, allowing you to switch between computers without compromising on sound quality. Enjoy an immersive audio-visual environment for both work and entertainment.

CKL 4 Port USB 3.0 Multi-view HDMI KVM Switch Dual Monitor 4K@60Hz

Multi-viewer KVM Switches with Powerful Display Features:

  1. Connect 4 computers to share dual monitors and one set of keyboard and mouse as well as USB peripherals and audio device;
  2. Dual monitor display with mulitple display modes: Out A ouputs displays signle view of PC 1 to PC 4, Out B displays mulit view of 4 PCs or dual view of PC 1 + PC 2 or PC 3 + PC 4, or single view of PC 1 to PC 4;
  3. Supports max. resolution up to 4K@60Hz. If 2 monitors supports different resolution, the resolution outputs will subject to the lower one.
  4. With 2 integrated USB 3.0 HUB ports to share more peripheras like pinter, headphone, webcam, hard disk etc. and another 2 USB 2.0 HUB ports to share keyboard and mouse;
  5. Support decoded HDMI digital audio through the green 3.5mm jack. Need to select HDMI audio as default in the sound settings. If HDMI audio is not available, the audio will not work. Workaround is to add a USB to audio adapter to one of the USB 3.0 HUB ports to run USB audio;
  6. Effortless one button switch via the wired remote, which can be extended to 50 ft (15meters) using outsourced longer aux cable;
  7. Include 4 pcs HDMI 2.0 cables, 4 pcs USB 3.0 cables and a power adapter. Works right out of the box;
  8. Cross supports major operation systems including Windows, Linux, Unix, Mac and more.

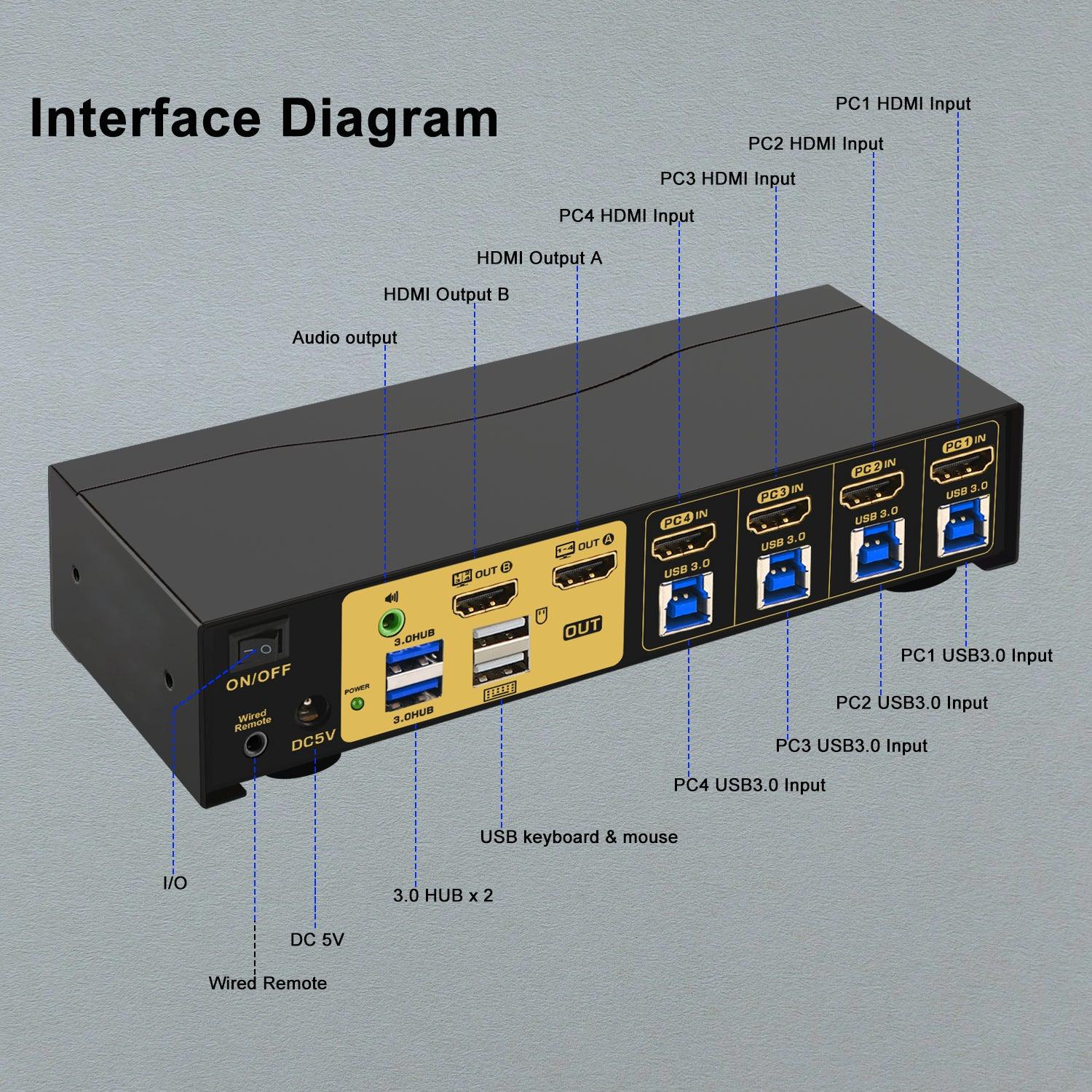

Input:

  • 4 HDMI inpputs
  • 4 USB 3.0 inputs
  • DC 5V power (Do not use other power adapter with higher voltage)

Output:

  • 2 HDMI output
  • 2 USB 3.0
  • 2 USB 2.0
  • 3.5mm audio (decoded HDMI digital audio)
  • Wired Remote

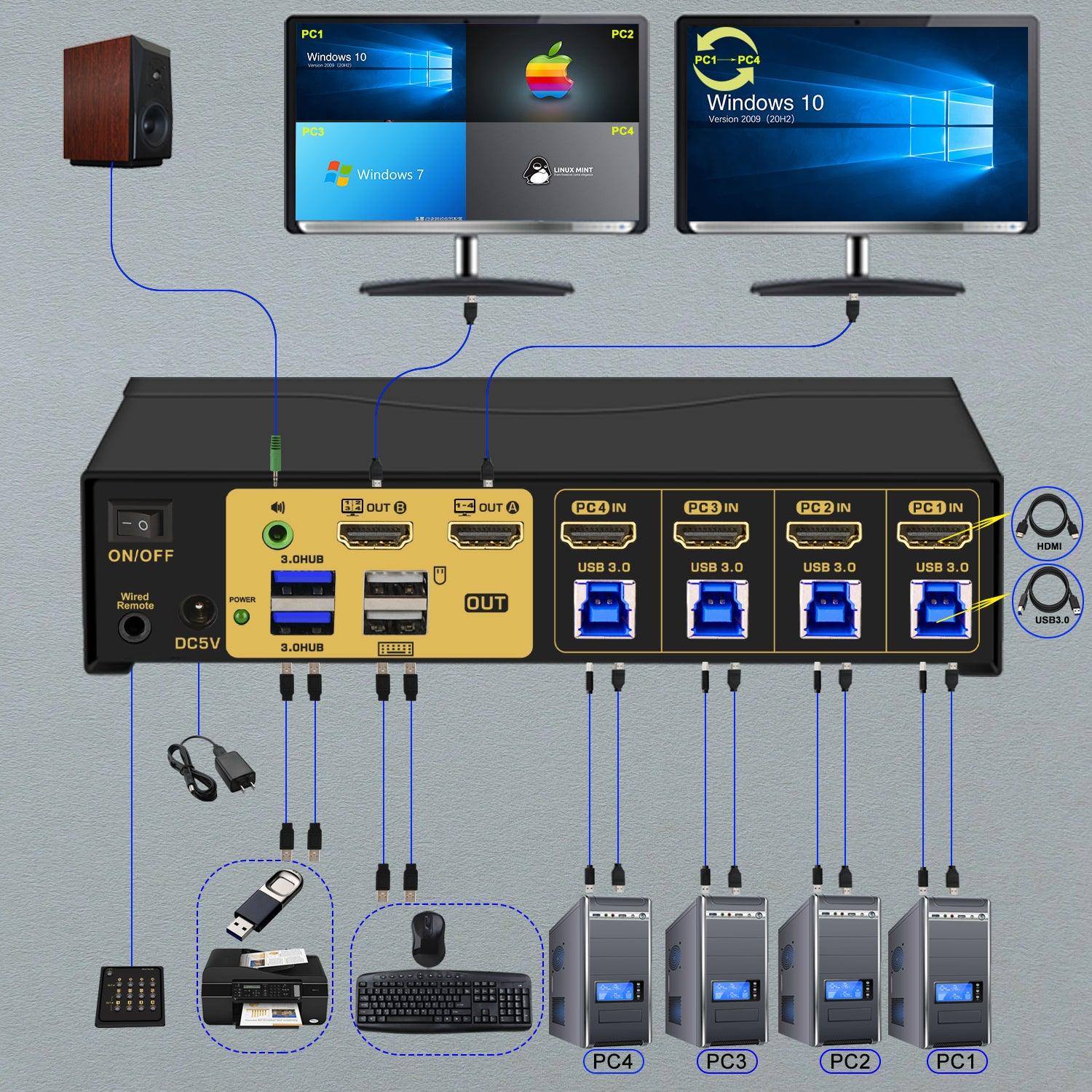

How to Install

  1. Power off everything before installation;
  2. Connect PC 1 to PC 4 using the included HDMI 2.0 and USB 3.0 cables to the corresponding input ports
  3. Connect Monitor A and Monitor B to HDMI Out A and Out B;
  4. Plug keyboard and mouse into USB 2.0 ports (if you are using wireless keyboard and mouse which shares one unified dongle, plug it in to either USB 2.0 ports or USB 3.0 HUB ports if it requires higher speed and power.
  5. Plug in the power adpater
  6. Plug in the wired remote
  7. Power on the KVM swtich, then monitors, then compouters in sequence.

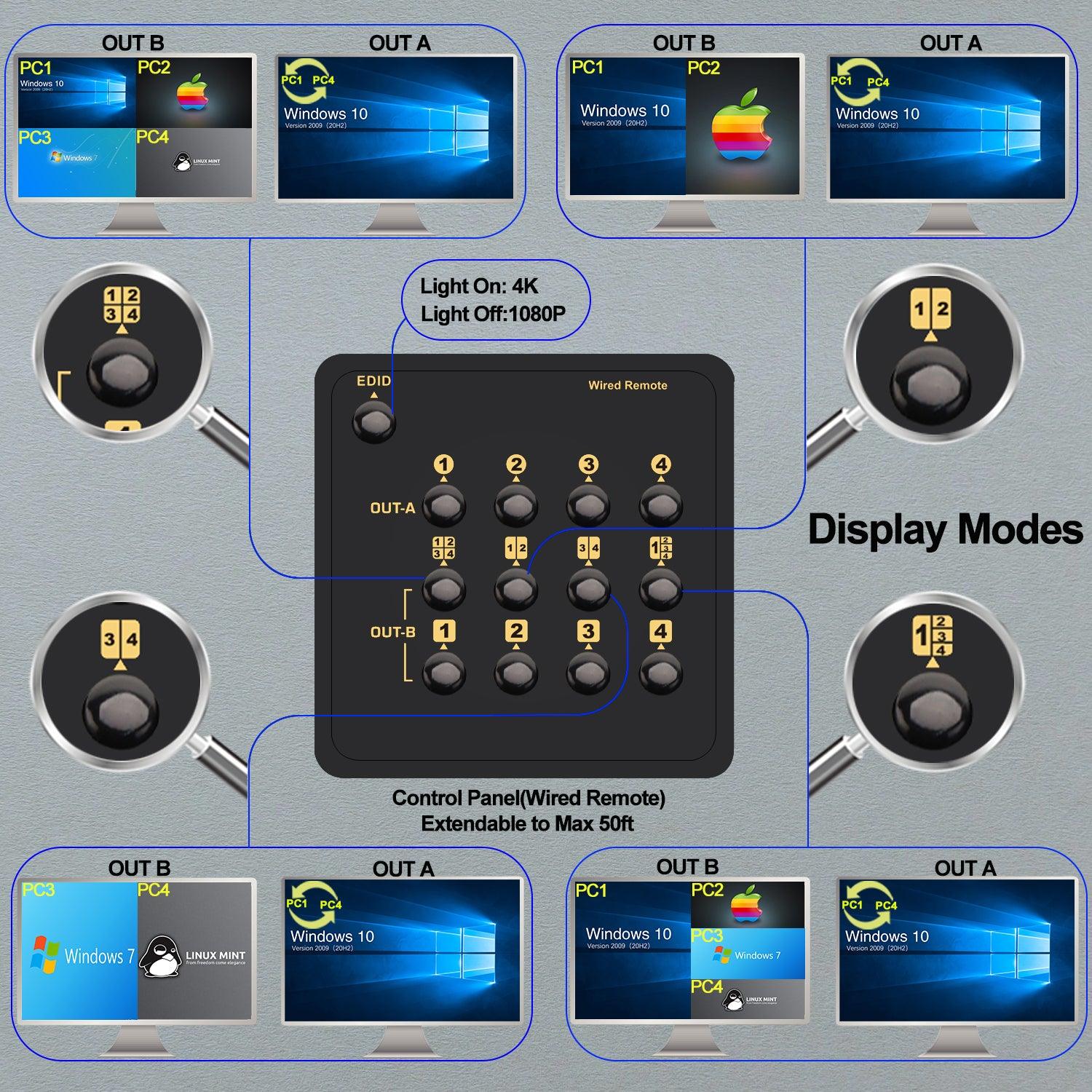

HDMI KVM Switch 4 Port with 1 Multi-view Display + 1 Extended Display

Support Versatile Display Options for Different Needs with Seamless Button Switch

  • HDMI Out A supports single view of PC 1 to PC 4 using the top row buttons.
  • HDMI Out B supports 4 display multivew display options via middle row buttons, or single view from any of PC 1 to PC 4 using bottom row buttons.
  • Press the middle row button again to discover more display options which may fit your needs.

Note:

  1. If you don't see display after installtion, press EDID will fix the issue.
  2. Out A and Out B will display identical resolution, and subjuect to lower one if one monitor is 4K, another is 1080P.
  3. LED lights on means 4K resolution is running, off means 1080P is running.

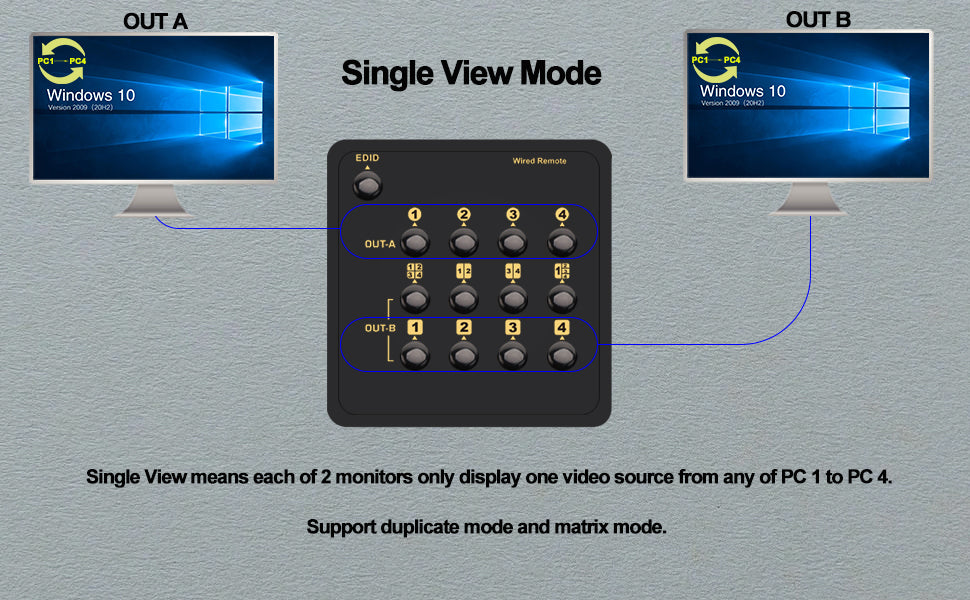

KVM Switch 4 Computers 2 Monitors Single View + Single View Mode

Out A: Select 1/2/3/4 on top row for which PC to display on monitor A

Out B: Select 1/2/3/4 on bottom row for which PC to display on monitor B

When same number is selected on both top row and bottom row, both monitors with show duplicated display from the same PC.

When different number is selected on top row and bottom row, 2 monitors will show matrix display from different PCs.

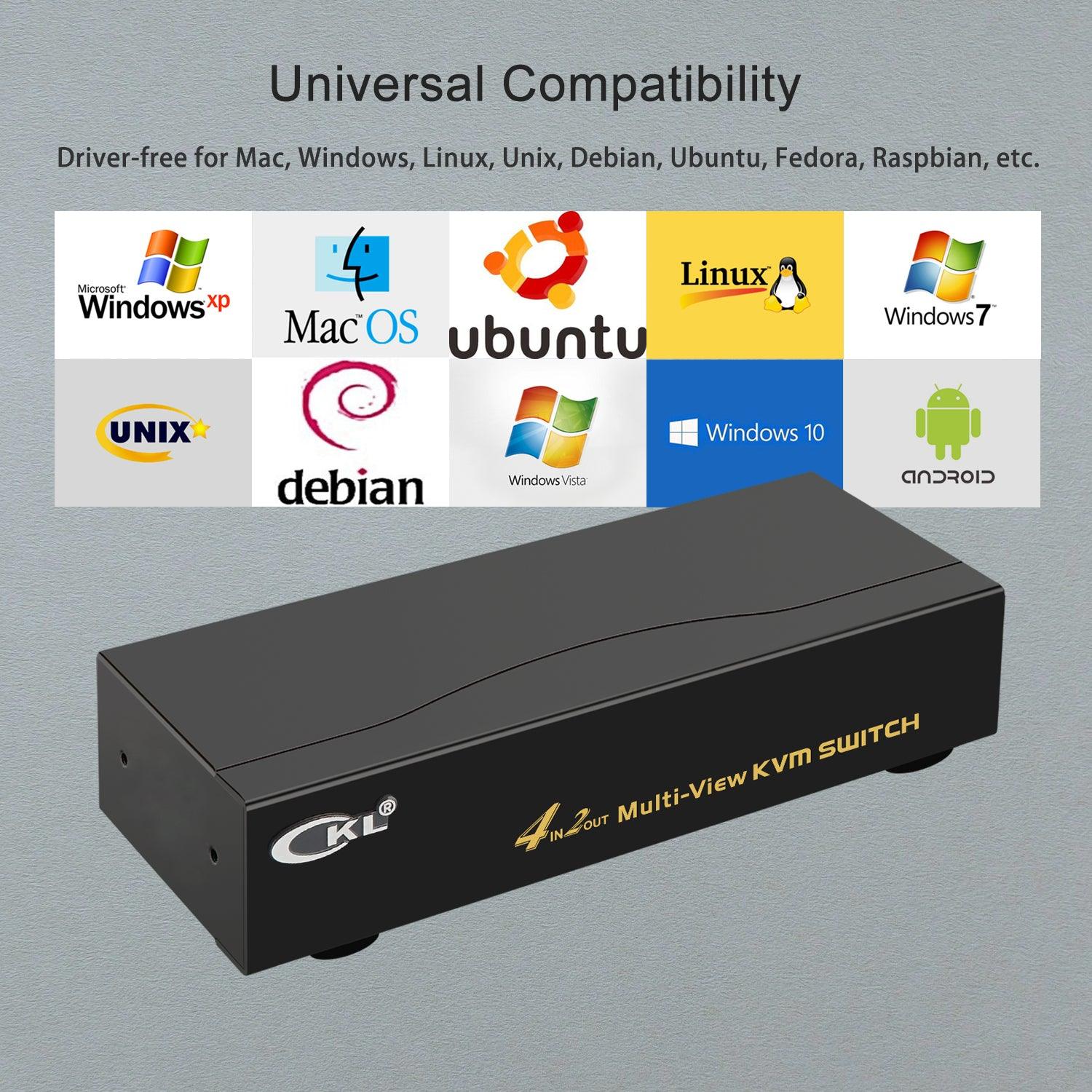

Wide Operation System Support

Cross support most major OS including Windows, Linux, Mac and major operation systems

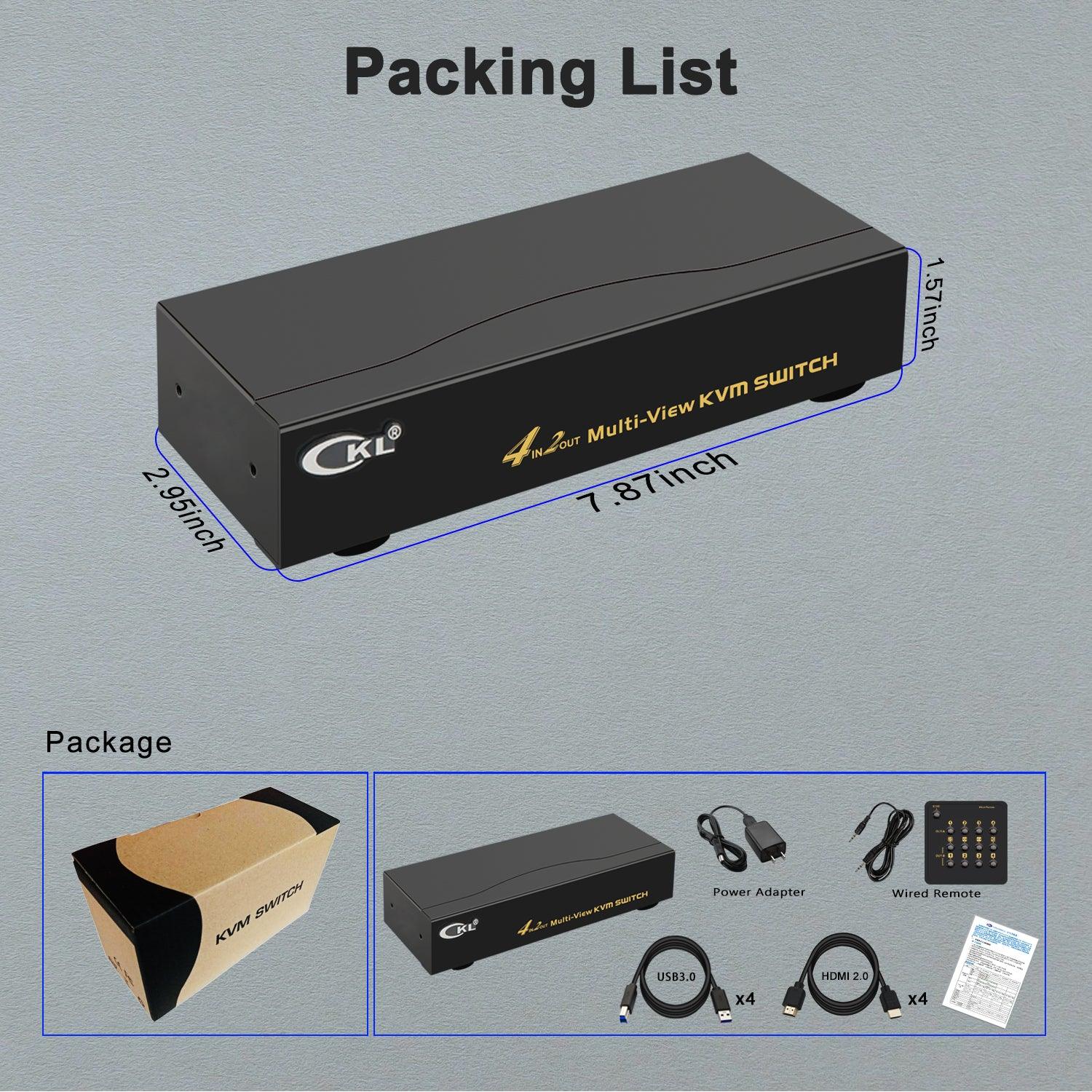

Works Right Out of the Box:

1* 4 in 2 out Multi-View KVM Switch

1* Mini Cable+ Wired Remoter

4* HDMI 2.0 Cables

4* USB3.0 Cables

1* USB Power Adapter

1* User manual in Engish

Note:

Cable for monitors are not included as they usually comes with monitor.
