CKL 2 Port USB 3.0 KVM Switch Quad Monitor HDMI 2.1 8K 60Hz 4K 120Hz 144Hz with EDID for 2 Computers 4 Monitors (CKL-924HUA-5)

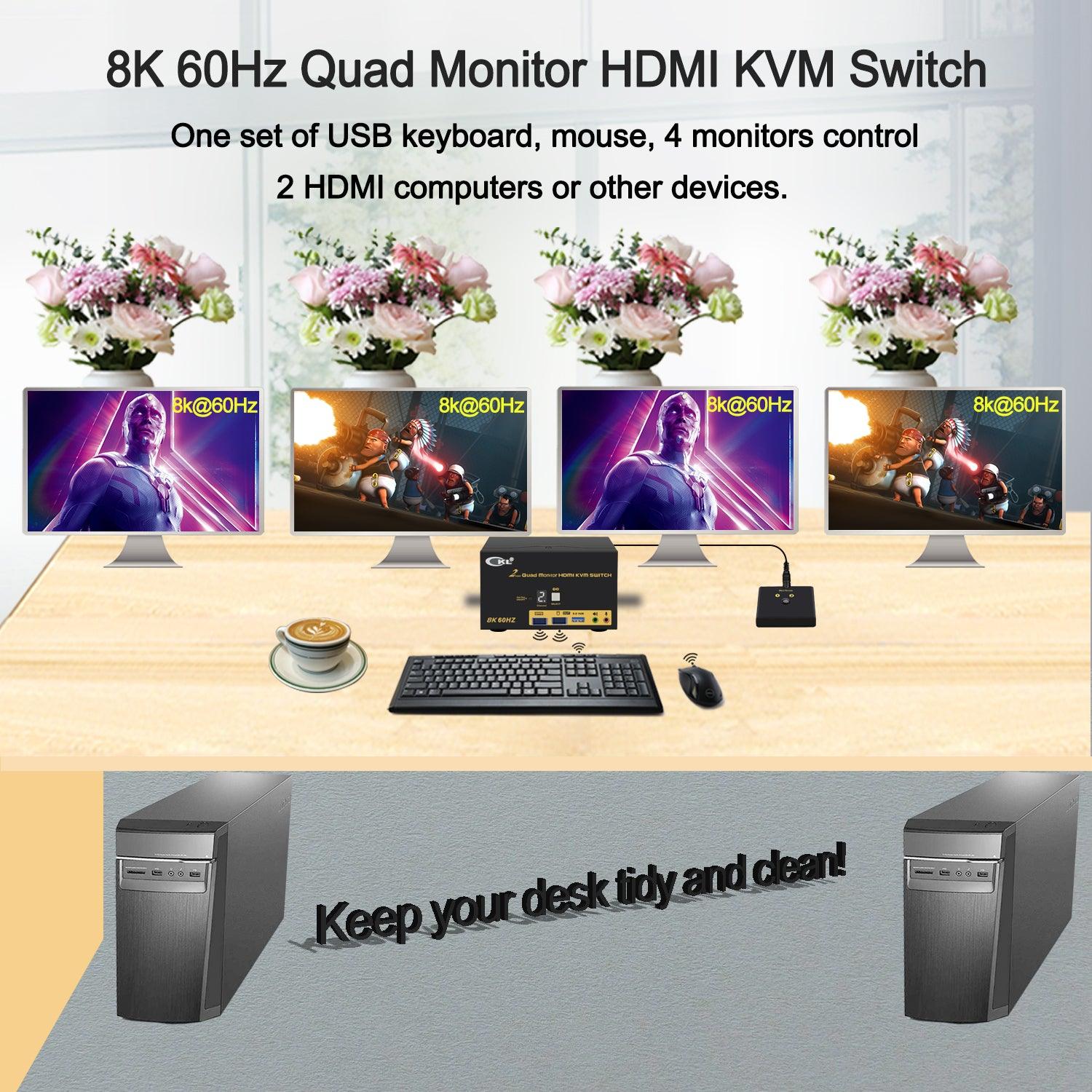

• KVM SWITCH QUAD MONITOR 2 PORT: If you have 2 computers or laptops, one for personal or gaming, the other for work, this is a premium tool for you to control them using 1 set of keyboard, mouse and 4 extended monitors, and share 1 more USB peripheral. Save your space and equipment spending significantly.
• 8K 60HZ 4K 144HZ KVM SWITCH HDMI: Newest HDMI 2.1 technology to achieve max. Resolution of 7680*4320@30/60Hz, 5120*2880/1440@50/60Hz, 3840*2160@120/144Hz, 3440*1440@144Hz, 3840*1080@240Hz, 2560*1440@144Hz, ideal for high resolution needs and gaming without delay. Supports EDID emulation to maintain correct display.
• USB 3.0 KVM SWITCH 4 MONITORS 2 COMPUTERS: The integrated USB 3.0 HUB ports allows you to share 1 more USB peripherals like printers, webcam, flash drives or headset between 2 computers. It has 4 HDMI outputs for extended or mirrored displays on one selected computer at the same time.

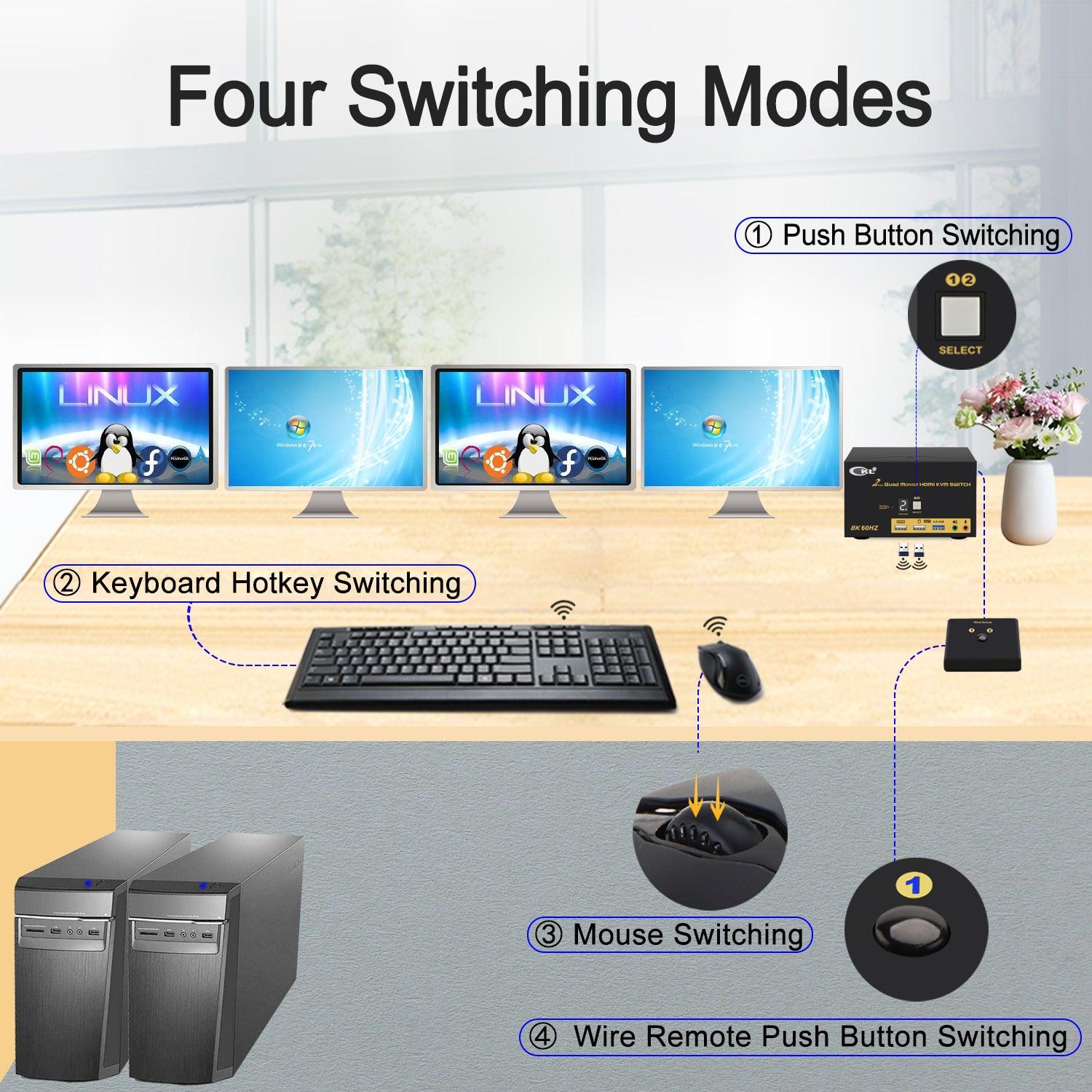

• NOT MANY KVM SWITCHES HAVE 5 SWITCHING MODES: It supports multiple switching modes using keyboard hotkey, mouse roller clicks, push button and wired remote, as well as auto scan with adjustable interval between 8 - 999 seconds for testing and Surveillance purpose.
• HDMI KVM SWITCH WITH AUDIO AND MIC SUPPORT: Supports both 3.5mm stereo speaker output (green) and microphone input (pink) and HDMI digital audio through the same green audio port. Please refer to user manual for how to set the audio and change between the 2 audio options.

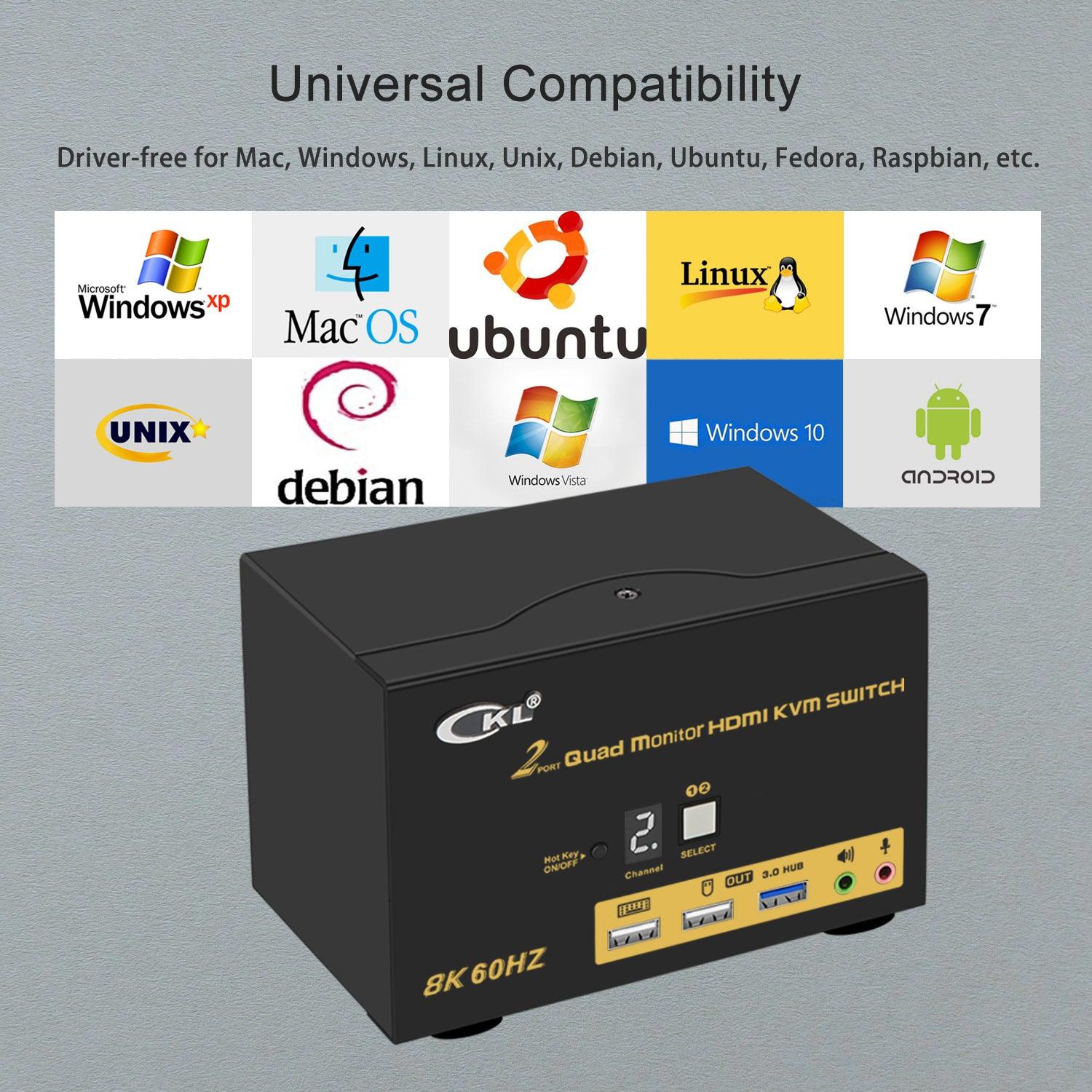

• WIDE COMPATIBILITY AND COMES WITH ALL CABLES NEEDED: Supports Windows, Linux, Mac and most major operation systems, plug and play without any software or driver needed. The package comes with all cables, power adapters except cables for monitors which usually comes with monitors. In most cases, adapters will be needed for computers especially laptops that do not have 4 HDMI outputs.

CKL-924HUA-5 2 Port HDMI KVM Switch Quad Monitor 8K@60Hz 4K@144Hz Supports Audio and Microphone

Does Everything Needed!

• 2 computers / laptops share one set of keyboard, mouse, 4 monitors and USB 3.0 device;
• Quad (4) monitor outputs support up to 8K@60Hz, 4K@120/144Hz (HDMI 2.1) for extended, mirrored or spliced display; Supports EDID emulation to maintain correct display.
• Support wired or wireless keyboard and mouse with USB pass-though technology;
• Cross support most major OS including Windows, Linux, Mac;
• Advanced switching modes: keyboard Hotkey, mouse clicks, push button, auto scan and wired remote; With digital display showing current computer selected;
• The wired remote uses standard 3.5mm aux cable which can be extended to max. 50 ft (15 meters);
• With 2 extra USB 3.0 HUBs for high speed data transfer up to 5Gbps (10 times faster than USB 2.0) ;
• The USB 3.0 cable Also draws power from USB 3.0 port on computers to drive the KVM switch;
• Support HDMI digital audio (default) and swapping between computers.

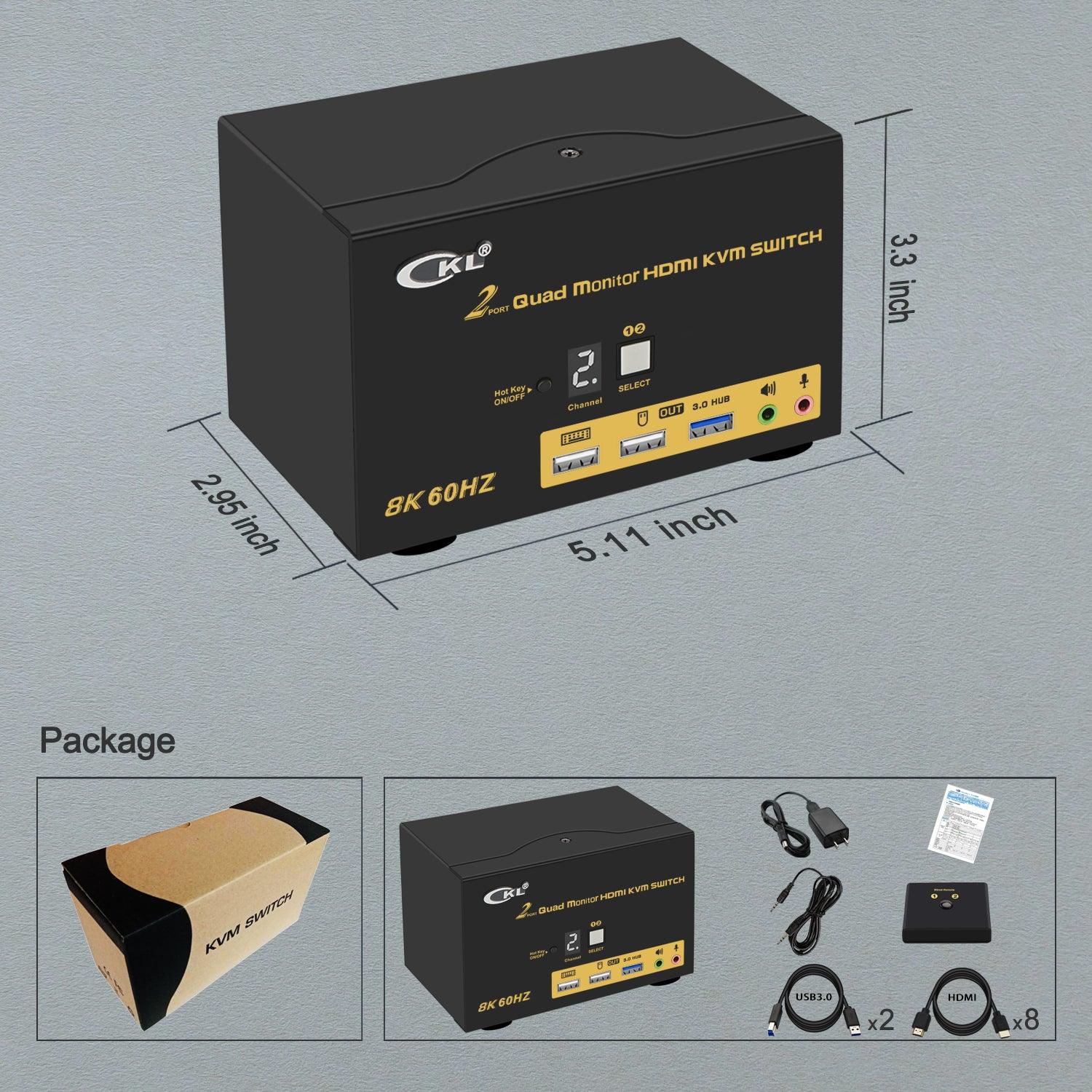

• Include all cables needed except cable for monitors

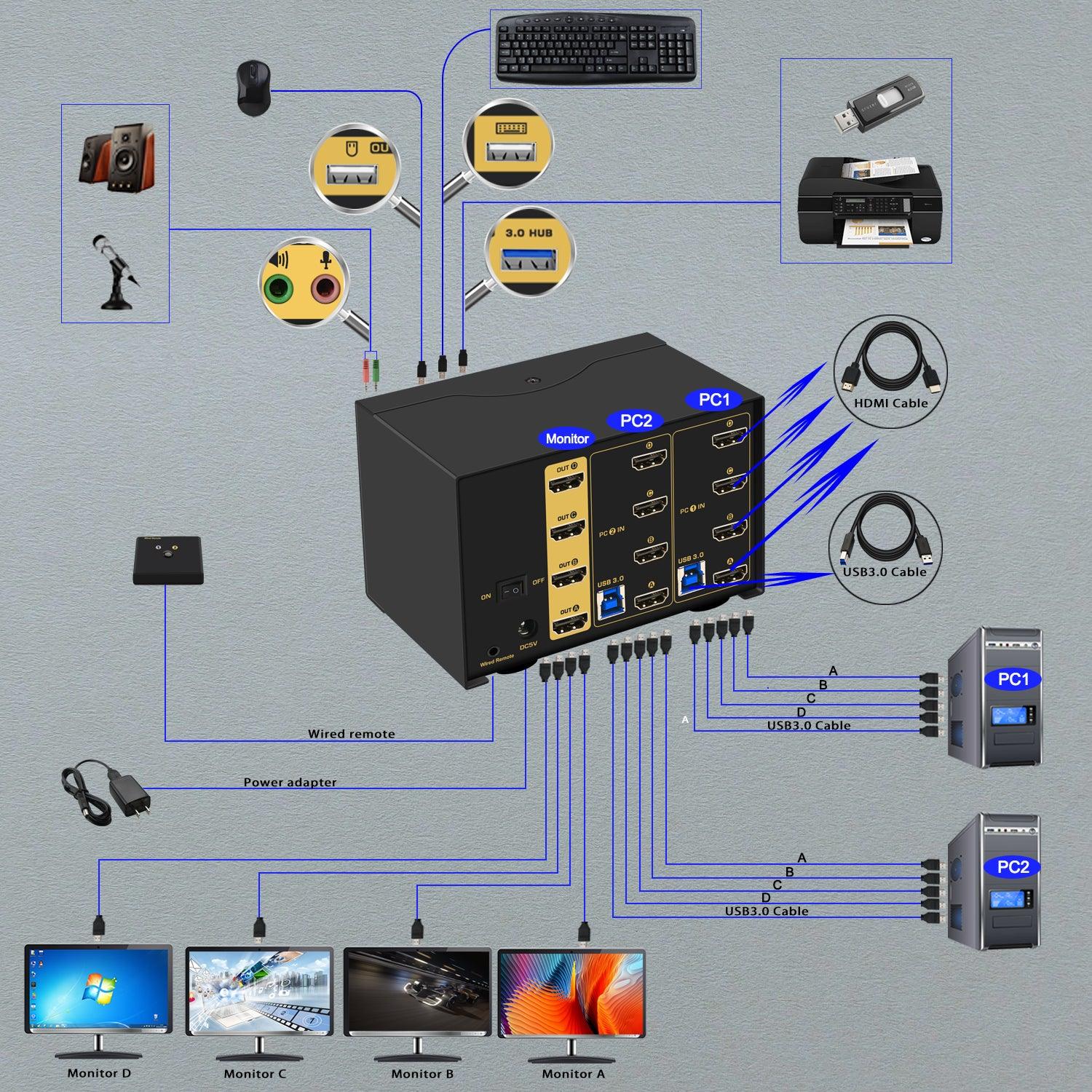

Installation Procedures

1. Power off everything before installation;
2. Computer 1: Connect 4 HDMI outputs from computer 1 to PC1 IN A, B ,C ,D ports; Connect USB A-male to USB 3.0 port on computer 1, and USB B-male to USB 1 input on the KVM switch;
3. Computer 2: Connect 4 HDMI outputs from computer 1 to PC2 IN A, B ,C ,D ports; Connect USB A-male to USB 3.0 port on computer 2, and USB B-male to USB 2 input on the KVM switch;
4. Monitor A: Connect primary monitor to HDMI Out A;
5. Monitor B: Connect extended monitor to HDMI Out B;
6. Monitor C: Connect extended monitor to HDMI Out C;
7. Monitor D: Connect extended monitor to HDMI Out D;
8. Keyboard and Mouse: Connect keyboard and mouse into USB keyboard and mouse port respectively;
9. Connect USB peripherals to USB 3.0 ports if needed (optional);
10. After cables being connected, power on the KVM switch first, then monitors, then computers.

Friendly Reminder:

1. Some keyboard with special features like gaming, programming, multi-media, mechanical, back lights may not be well supported on the USB keyboard and mouse port which are dedicated for hotkeys, if so you can plug the keyboard and mouse into the USB 3.0 ports or turn off the hotkey then the USB keyboard and mouse port will turn into standard USB 2.0 port, without hotkeys, you can use the included wired remoter to switch between computers.

2. If you are using wireless set of keyboard and mouse which share a unifying dongle, you can plug the dongle into either the USB keyboard or mouse port (hotkey supported), or USB 3.0 port (no hotkeys).

3. The USB 3.0 cable also draws power from USB 3.0 port on computers to drive the KVM switch, also included a USB to DC power cord as additional power supply if in case the computer does not have a USB 3.0 port.

Adapters Will be Needed in Most Cases

This KVM switch supports HDMI digital output only. Make sure you select HDMI Audio Output or Monitor A audio (monitor on HDMI Out A) as default in your sound settings. Do not select your audio device as default sound device, otherwise the audio would not work properly. Some older monitors which do not support HDMI audio will not work with the audio function. The workaround is to add an USB to Audio adapter (Ref. ASIN B00IRVQ0F8) to one of the USB 3.0 HUB ports on the front panel.
