17.3inch VGA LED RackMount KVM, Support up to 1920*1080 @60Hz (HL-1701D)

The HL-17 Series integrates an LED display, ultra-slim keyboard, and mouse touchpad into a 1U-height unit with a drawer-type installation design. Compared to standard keyboards, displays, and mice that often suffer from space constraints, it saves up to 85% of rack space. Equipped with a high-quality Grade A 17.3” LED display (with no dead pixels), the built-in switch enables direct management of 1 server (maximum management capacity: 1 server).

Product Features
Hardware Characteristics
Integrates a 17.3-inch LED FHD display and KVM console into a single dual-slide chassis, occupying only 1U rack space.
The LED display can be tilted up to 135 degrees for a comfortable viewing angle.
Drawer-type design with front-panel USB ports supporting external keyboard and mouse connections.
Multiple Management Methods
Offers an auto-scan mode to continuously monitor user-selected hosts.
Supports hot-swapping — add or remove servers at any time without powering off the system.
Quickly locate and select target servers by assigning custom names or fuzzy-searching serial numbers (SN).
Control Functions
One console can manage 1 server (maximum management capacity: 1 computer).
Security Features
Supports multi-user account management, hierarchical access control, password protection, and PC/server name search.
High-Definition Resolution
17.3-inch LED LCD display with high brightness, sharp image quality, and a maximum resolution of 1920x1080@50-60Hz.
Dual-Slide Structure
The LED display, keyboard, and touchpad are retractable to optimize server room space utilization. When not in use, the keyboard/touchpad can be pushed back into the rack, leaving only the slim LED display for convenient server status monitoring.
Wide OS & Hardware Compatibility
Compatible with original servers from major brands including Inspur, Dahua, Huawei, Sugon, HP, DELL, and Lenovo; as well as various X86/ARM industrial computers such as Advantech and Yanxiang series.
Supports multiple operating systems: Kylin, Android, DOS/Windows series, Linux, Unix, Mac OS 8.6/9/10, SUN Solaris 8/9, Ubuntu, etc.

Specification Item Details
Product Model: HL-1701D
Direct Computer Connection 1 computer (1USB Input, 1VGA Video Input, 1*HDMI Input)
Maximum Computer: Connection 1 computer

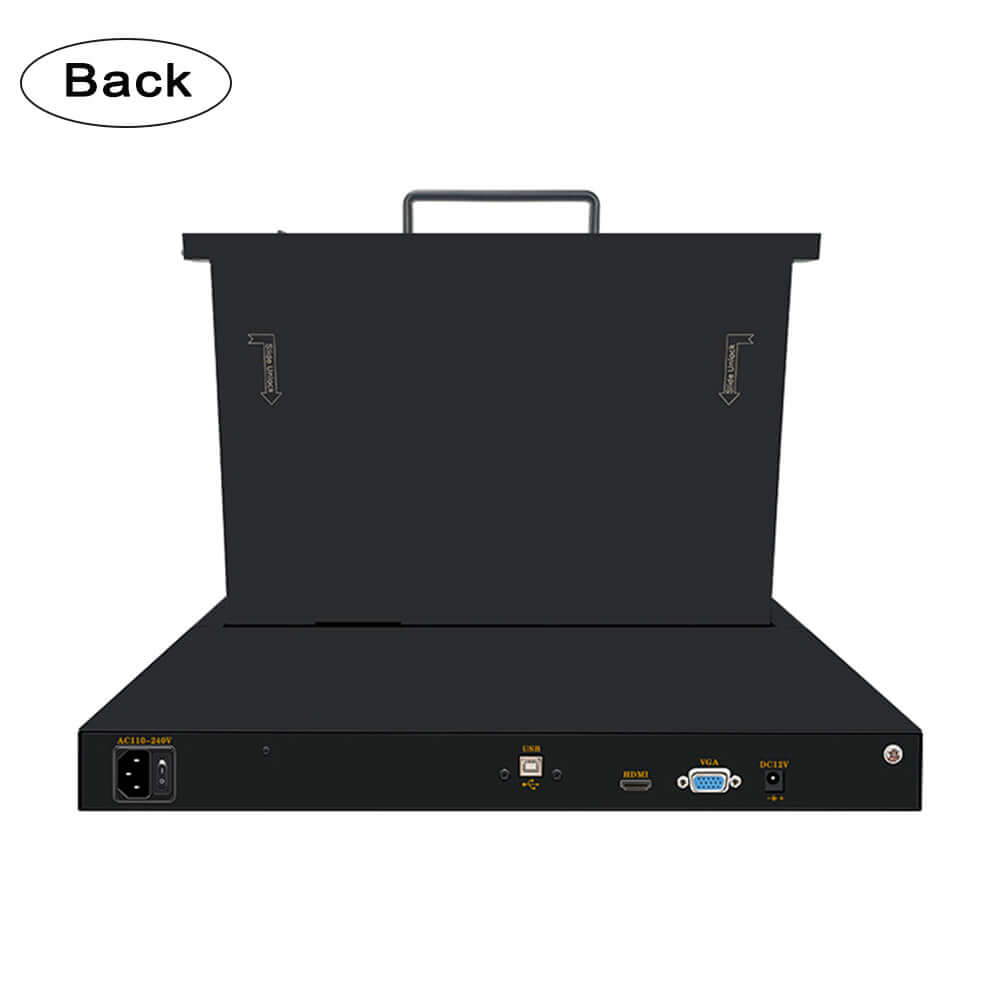

Connection Ports: DB15-USB Interface (Integrated Cable for VGA Video Signal & USB Transmission), HDMI Interface
Switch Scan Time: 5~999 seconds (OSD Adjustable), Switching Time: 1 second
External Interfaces: Supports 2*External USB Ports (for Keyboard, Mouse, USB Flash Drive)
LED Status Light: None
Channel Indicator Light: None
Switching Method: None
LED Display: 17.3-inch LED, Resolution: 1920×1080@60Hz, Brightness: 250nits, Contrast Ratio: 1000:1
LED Display Control: Multi-language OSD for Optimal Display Adjustment
Keyboard/Mouse: 100-Key Industrial Notebook Keyboard (83 Standard Keys + 17 Independent Numeric Keys), Touchpad
Voltage Input: AC 110V-240V (Optional DC Input), 50Hz-60Hz, Power: 36W
Cabinet Material: High-Strength Corrosion-Resistant Steel Plate / Aluminum Alloy
Color:Insulated Black Paint (Custom Color Available)
Applicable Cabinet: 1U Cabinet, 600-1200MM

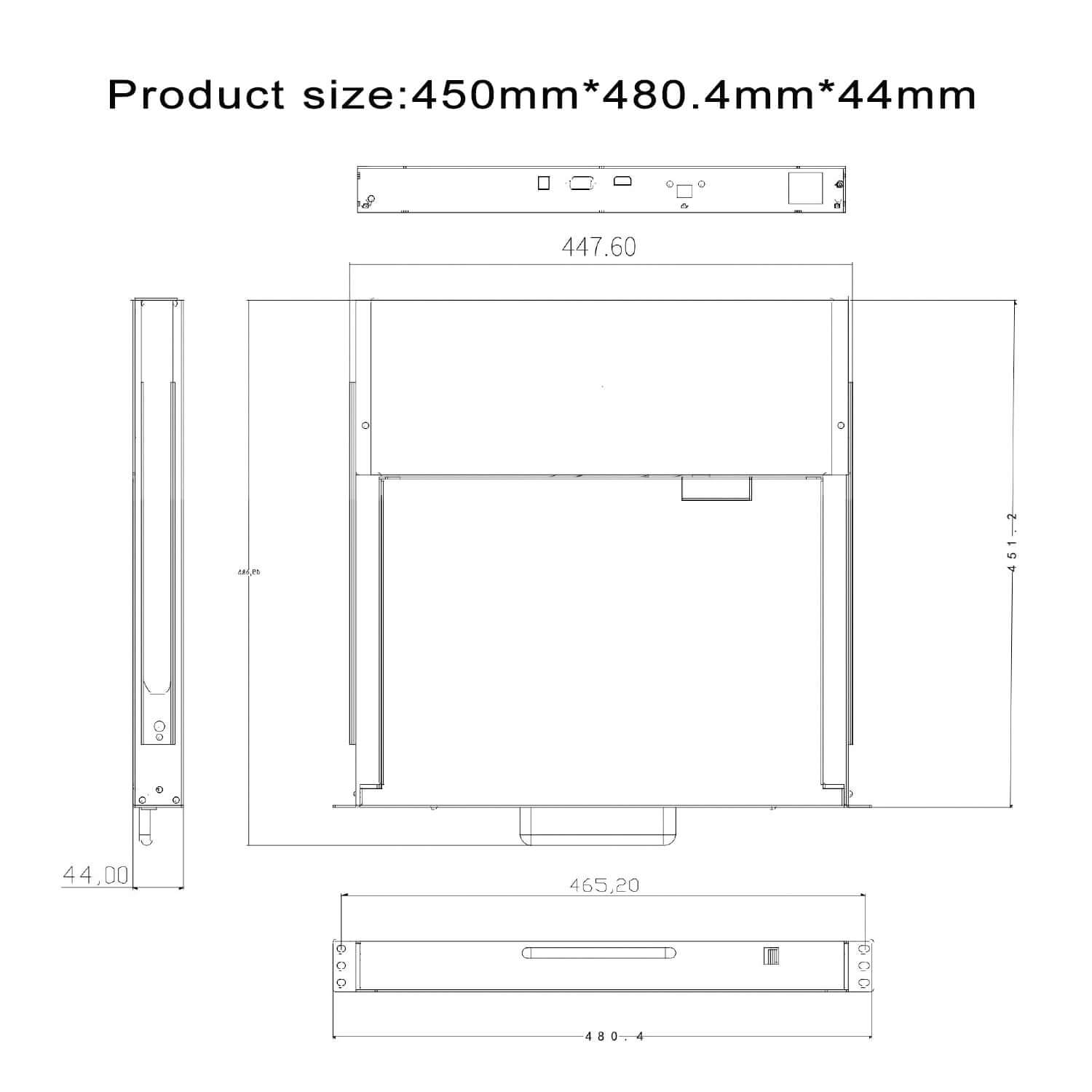

Dimensions (D×W×H): 450mm (Depth) × 480.4mm (Width) × 44mm (Height)
Weight: 14.5KG
Storage Temperature: -30℃~70℃
Operating Temperatur: -10℃~60℃
Humidity: 0%~80% RH, Non-Condensing
Safety Certifications: 3C, FCC, CE, ROHS, ISO9001

What's in the box:

1* KVM Switch

1* VGA cable

1*HDMI cable

1* Power adapter

2* mount rack

1* User manual.
