CKL High Speed USB 3.0 2x2 Matrix KVM Switch Dual Monitor DisplayPort + USB type C 4K 60Hz
1. Hook up 2 computers or laptops to share one independent set of keyboard, mouse, dual monitors and more USB 3.0 Peripherals;
2. Support dual HDMI monitor outputs for extended or duplicated displays on one computer, or Matrix displays on 2 computers (one monitor on one computer simultaneously);
3. Support maximum resolution of 4K@60Hz = 4096x2160@60Hz (4:3 monitor) or 3840x2160@60Hz (16:9 monitor) and compatible downwards;
4. Cross support multiple performs including Windows, Linux, Mac and most major operation systems;
5 Support 5 switching modes to meet with various needs: 1. Keyboard Hotkey 2. Mouse Clicks 3. Push button. 4. Wired Remote 5. IR remote (battery not included, battery specification is CR2025 3V)
6. With latest USB pass-though technology to be compatible with more wired or wireless keyboard and mouse;
7. Support HDMI digital audio (need to set HDMI audio or monitor A audio as default audio output in sound settings);
8. Support auto scan with adjustable interval between 8-999 seconds for monitoring and testing purposes (default inactive);
9. Comes with all cables and accessories except monitor cables which usually come with monitors.
Recommended for Computers or Docking Statoins with DisplayPort + USB C Outputs
IMPORTANT TIPS!!! PLEASE READ BEFORE ORDER!!!
1. This model requires 1 DisplayPort and 1 USB type C connection from each computer, reliable adapters or docking station may be needed for computers that does not have DisplayPort + USB C output, Please be awere of this before ordering it, or reach out CKL support for recommendations.
2. Converting VGA, DVI and HDMI to USB C seems not available now.
3. Matrix Monitor Display only requires one DisplayPort cable connection to corresponding DisplayPort IN A port from each computer, if you don't need dual monitor display mode.
4. HDMI Monitors are preferred to avoid adapters being used on both computer side and monitor side which will probably cause display issue.
5. Some keyboards and mice with special features like backlit, trackballs, gaming, mechnical, razar etc. may not work well on the USB keyboard and mouse ports which are dedicated for hotkeys, the workarounds are to turn off the hotkeys or plug them into USB 3.0 HUB ports.
6. If you have any assistance needed while setting up or using our products, please do not hesitate to reach out for CKL support.
Install Your KVM Switch Correctly
1. Power off all devices before installation;

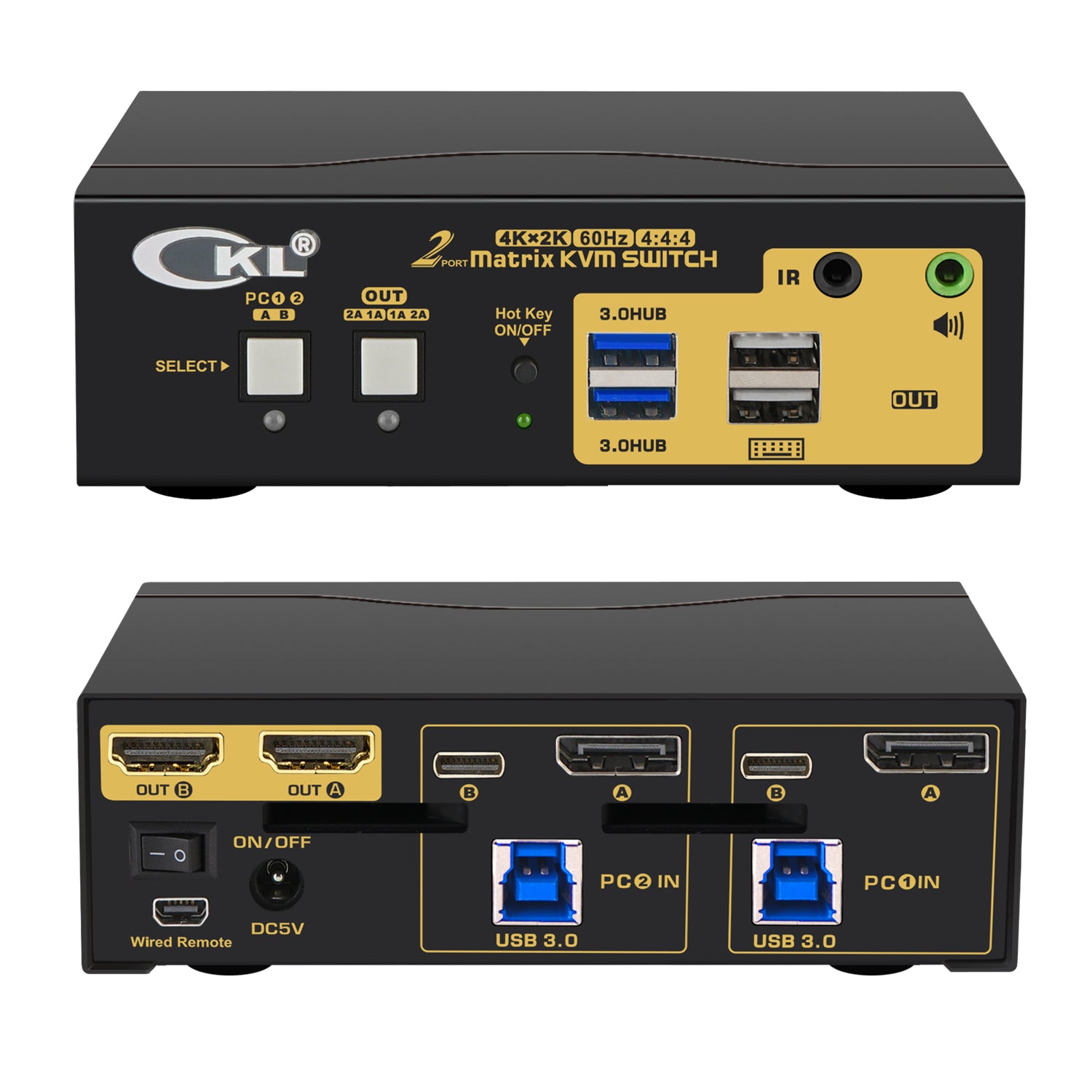

2. Connect your computers to the Switch using USB 3.0 and DisplayPort and USB type C cables included into correspondent PC1 and PC2 input ports;
3. Plug your mouse and keyboard to correspondent USB mouse and keyboard port on back panel;
4. Connect your Monitors to HDMI Out A & Out B on the switch;
5. Plug in your speaker or USB device if needed;
6. Power on the KVM switch and then monitors, then computers in sequence;
1. Each computer or laptop needs 1 DisplayPort and 1 USB type C connection and 1 USB 3.0 connection to corresponding ports on the KVM switch;
2. If you are using a wireless keyboard and mouse set with a unified dongle, plug it in to USB keyboard port (with hotkeys), or USB 3.0 HUB port (No hotkeys).
3. This KVM Switch supports HDMI digital output only. Make sure to set HDMI audio or monitor A audio (monitor on HDMI Out A) as default in computer sound settings. Do not select your audio device as default sound device, otherwise the audio would not work properly. Some older monitors which do not support HDMI audio will not work with the audio fuction. The workaround is to add an USB to Audio adapter (Ref. ASIN B00IRVQ0F8) to one of the USB 3.0 HUB ports on the front panel.

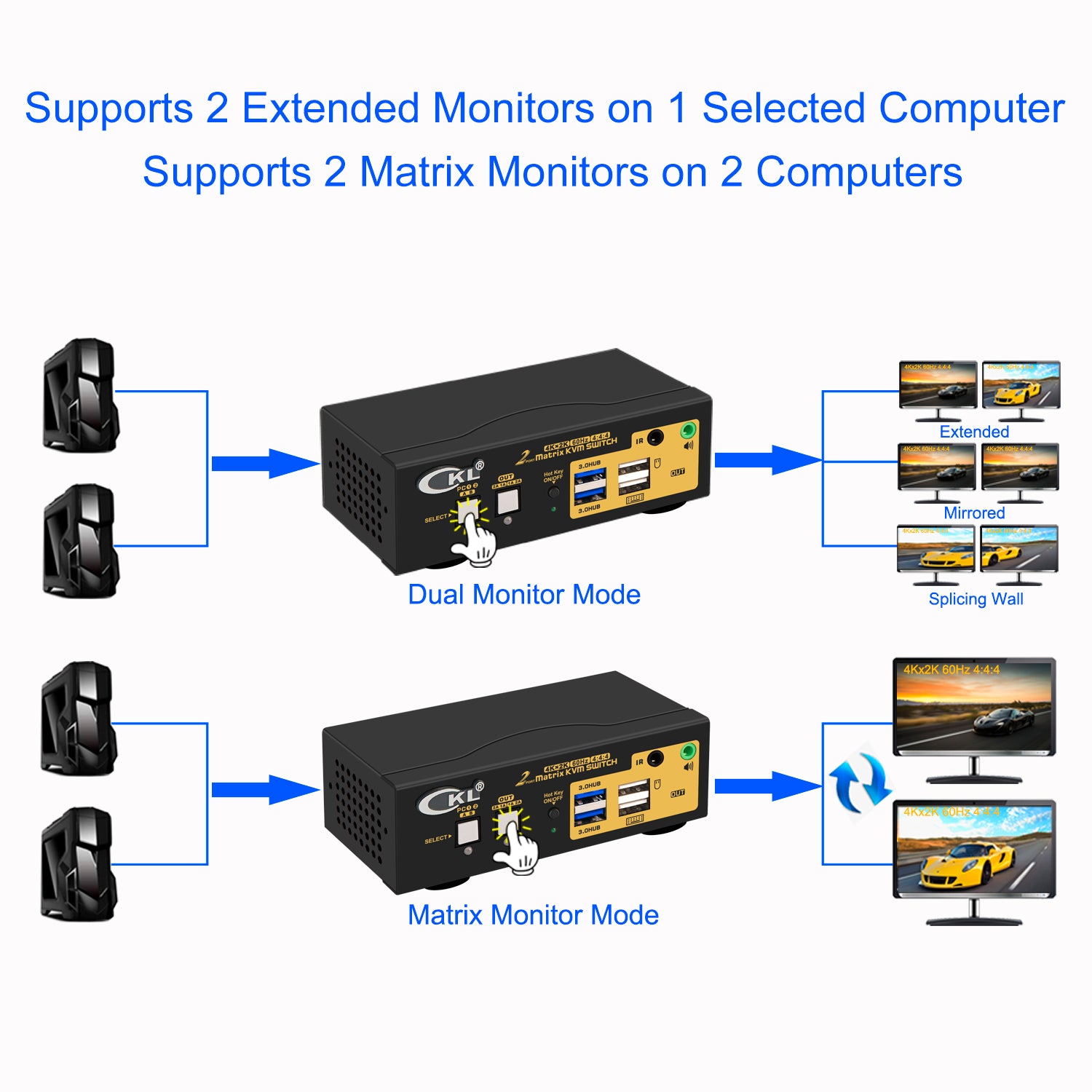

Supports 2 Extended Monitors on 1 Selected Computer or 2 Matrix Monitors on 2 Computers
This KVM Switch Supports Dual Monitor Mode and Matrix Monitor Mode.
1. Dual Monitor Mode means the 2 monitors are extended or duplicated on one selected computer, and switch between 2 computers. Use the left white button on front of the switch. the LED under the right white button will be off.
2. Matrix Monitor Mode means the 2 Monitors are on 2 different computers, one for each computer, and switch between 2 monitors. Use the right white button on front of the switch, the LED under the right white button will be on.
When switching between Dual Monitor Mode and Matrix Monitor Mode, it takes around 7 seconds for re-recognizing the monitors, this is normal.

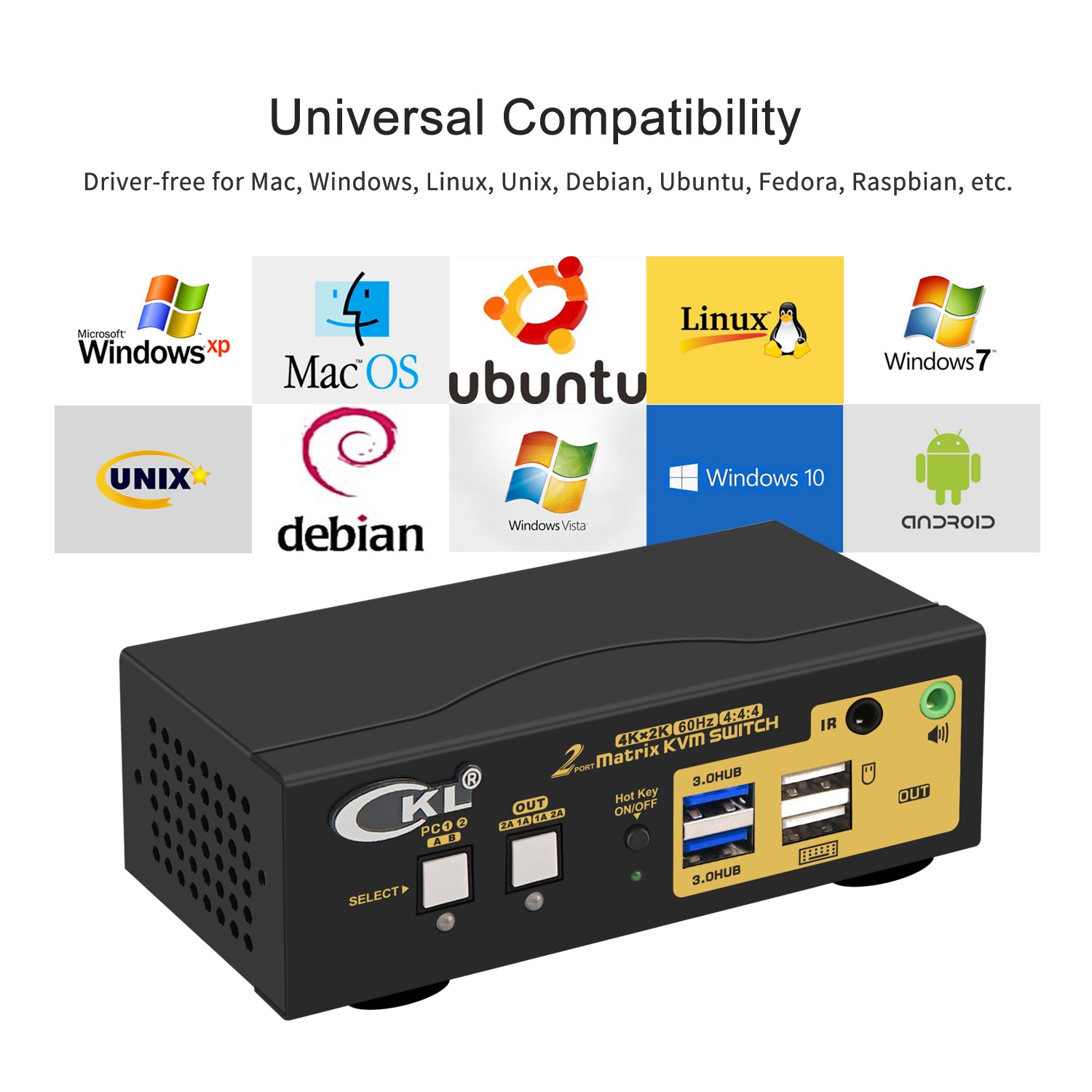

Cross supports Windows 10/7/2000/XP/Vista、Linux and Mac and more.
Multile Switching Modes
Default Hotkey Rght Ctrl can be Changed to Num Lock or Scroll Lock.
1.Keyboard Hotkey Switch: Double click the right Ctrl then port mumber then Enter
2. Mouse Click Switch: Double click the middle roller of mouse
3. Push Button Switch: Simply press the white button on front panel
4. IR Remote: Press button on the IR remoter
5. Wired remote switch: optional when special keyboard and mouse do not work well on rear USB ports.
4 Display Modes
Support 4 display modes depending on computer setting:
What's in the box
1* KVM Switch
1* Mini USB Cable+Wired Remoter
1* IR Receiver+ IR Remoter(without battery)
2* DisplayPort 1.2 Cables (4.92ft)
2* USB-C Cable (2.62ft)
2* USB3.0 Cables (4.92ft)
1* Power adapter (DC 5V 2A 5.5mmx2.5mm)
1* User manual in English
Note:The HDMI cables for monitor is not included!
